Superior Quality AC DC 5V 2A AC DC Power Adapter

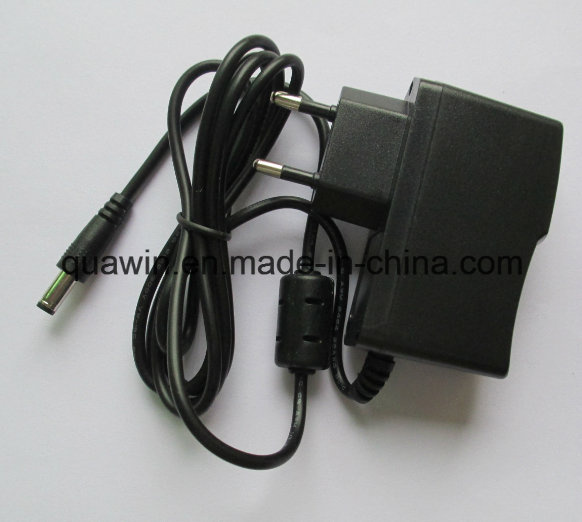

Name: Superior Quality AC DC 5V 2A AC DC Power Adapter
Brand: all-electronics-online.com
SKU: 803918475
Availability: InStock
Rating: 5 (99 reviews)

Price:	US $ 2.8-3/Piece
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW005-020-P
Plug-in Type:	Yes
Delivery Date:	15days
Warranty:	One Year
Usage:	Phone
Output Type:	AC or DC
Connection:	Plug In
Brand:	OEM

Product Description

5V 2A AC/DC CCTV Camera Adapter

Voltage	5v
Current	2a
Connector	Custzomied

Specification
Small size, lightweight, convenient for carrying
High-cost performance, high-reliability
Built-in multiple protections for over-voltage, over-current and short-circuit
Start time: 3 seconds (maximum)
Output characteristics: Constant voltage mode, high-precision, low-noise
No-load power: <0.5W
Surge current: (maximum) cold start, 40A at 230V AC
Overload protection: Auto-recovery
Hi-pot test: 3, 000V AC, 4, 242V DC

Specification:

MODEL	QW005-020-P
OUTPUT	DC VOLTAGE	5V
	OUTPUT POWER	10W
	CURRENT RANGE	2A
	RIPPLE & NOISE(max.)	50mVp-p
	LINE REGULATION	±3.0%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE	±5.0%
	CONNECTOR	5.5*2.1MM
	DC CABLE	1.2M
INPUT	VOLTAGE RANGE	110~ 240VAC
	AC CURRENT(Typ.)	0.5A/ 240VAC
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	80%
	INRUSH CURRENT(Typ.)	COLD START 15A/115VAC 30A/230VAC
	LEAKAGE CURRENT	<0.25mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated power; Pulsing hicuup shut down,auto recovery
	OVER VOLTAGE	Rated output voltage of 105%~150% start overvoltage protecion
		Protection: burst mode,load of abnormal conditions removed the automatic recovery
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0ºC ~ +45ºC (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20ºC ~ +85ºC 10~95% RH
	TEMP. COEFFICIENT	±0.05%/ºC
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY & EMC	ISOLATION RESISTANCE	P-S>50Mohm at 500V DC
	WITHSTAND VOLTAGE	3KV,10mA,60S
OTHERS	DIMENSION	L75W46H29MM
	WEIGHT	0.1Kg
	SHELL MATERIAL	BLACK PLASTIC

Shipping terms
1). Samples checking: Sending by Express ( DHL/UPS/FedEx/TNT, by air)
2). Bulk production: Sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT), or we can accept other shipping terms according to your requirements.
3). We are not responsible for any accidents, delays or other issues that are caused by the shipping.

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
