Supply FTTH Single Mode Fiber Quick Connector with Sc

Name: Supply FTTH Single Mode Fiber Quick Connector with Sc
Brand: all-electronics-online.com
SKU: 810460375
Availability: InStock
Rating: 4.9 (128 reviews)

Price:	Negotiablepieces
Min Order:	1000pieces
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Quick connector
Installation:	FTTH Network
Material:	ABS
Model Number:	Fast Connector
Color:	Black & Blue
Type:	Indoor Cable
Connection Structure:	Patch Cord
Material Shape:	Round Wire
Core:	1 Core or 2 Core
Certification:	CE, RoHS, ISO9001, UL
Sheath Material:	PVC or LSZH
Connector Type:	Sc/Upc
Application:	Communication

Product Description

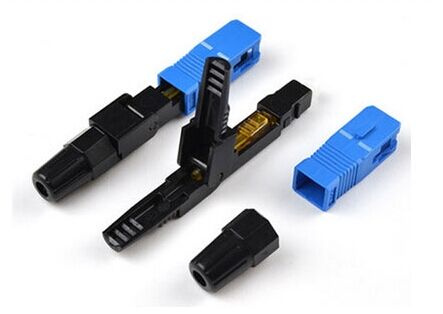

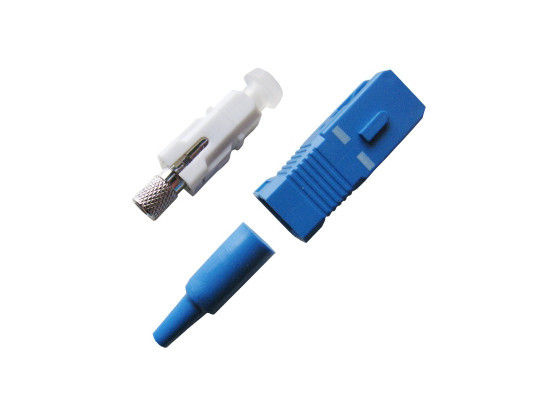

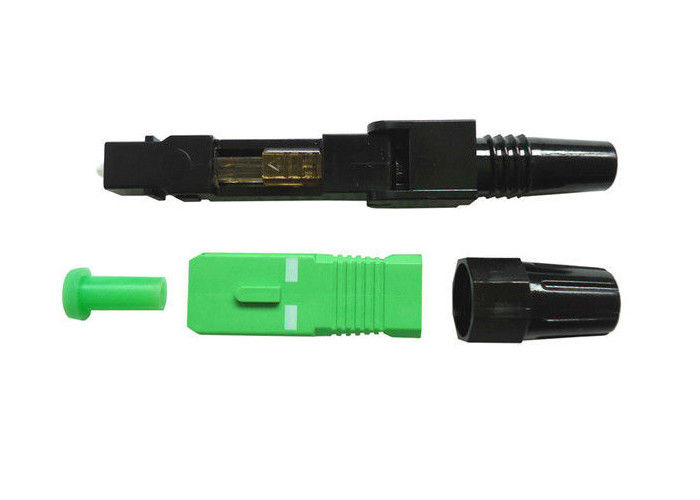

Supply FTTH single mode fiber quick connector with SC

FTTH Quick Assembly Connector (No polish Connector) Fast connector SC/APC/UPC

Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embeded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.

Features:
1. FTTH project usable
2. Fast, easy, accurate
3. Cost effective
4. Portable
5. Reliable and superior optical performance
6. Cable Tensile test complies with Telcordia GR-326-CORE

Application

1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH
5. Field word

Item	Paramete
Cable Scope	2.0mm/3.0mm/3.1*2.0mm cable
Optical fiber diameter	125μ m ( 652 & 657 )
Tight buffer diameter (μ m)	900μ m
Fiber mode	Single & multi mode
Installation time	within 60s ( no fiber cut )
Insertion loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	> -45dB
Fastening strength of naked fiber	> 5 N
Fastening strength of naked fiber holder	> 10 N
Tensile strength	> 50 N
Using temperature	-40~+75

FAQ

Q1:How can i get your catalogue and price list?

A1:Please let us know your email or contact us from website directly for our catalogue and price list;

Q2: Can I negotiate the prices?

A2: Yes, we may consider discounts for multiple container load of mixed goods .

Q3: How much will the shipping charges be?

A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q4: Can I visit you?

A4: Sure, our factory is in Dongguan, China.Please contact us to make an appointment.

Q5: What if there is quality problem when we get the goods?

A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you ,Furthermore we will also take action to improve the quality in future.

Any questions,please feel free to contact us,we will provide quality services for you.

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
