Support 72-Channel Gnss Navigation Module
| Price: |
Negotiable/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
LS2008C-B |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Integration Type |
| Screen Size: |
5.0" |
| Carrier Frequency: |
Dual-Frequency |
| Brand: |
Locosys |
Product Description
Company ProfileShenzhen Universe Communication Tech. Limited was established in 2002. It's a high technology firm which is concentrated on R&D, producing, and selling GPS, BEIDOU, GLONASS, telecommunication,navigation,aviation and base station antenna.We are in possession of R&D capability of more 100 kinds of product categories per year. We not only customize various types of antennas according to customers' requirements ,but also provide complete technical support and a complete set of solutions.Both the quality and price of our products are competitive.We also deliver goods in time and provide perfect after sale service.
| Specification |
LOCOSYS LS2008C-B is a complete standalone GNSS smart antenna module, including embedded patch antenna and GPS receiver circuits. The module is powered by HED HD8020 chip which can simultaneously acquire and track multiple satellite constellations that include GPS, BEIDOU, GALILEO, QZSS and SBAS. It features low power, small form factor and fast time-to-first-fix. Besides, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment.
It is easy to install without both RF connector and coaxial cable that are needed in a separated GNSS active antenna. In other words, reduce the cost and size. Also, speed up the time to market by eliminating R&D efforts on RF matching and stability between separated GNSS antenna and module. Furthermore, it can be directly powered by a lithium battery without any external voltage regulars. Therefore, LS2008C-B of miniature size and brilliant performance is the best choice to be integrated into your slim devices. |
| Features |
- HED high sensitivity solution
- Support GPS, BEIDOU, GALILEO and QZSS
- Capable of SBAS (GAGAN, MSAS)
- Support 72-channel GNSS
- Fast TTFF at low signal level
- Up to 20 Hz update rate
- Support 1PPS synchronize with NMEA output
- Built-in DC/DC converter to save power
- Allow direct connection with the lithium battery

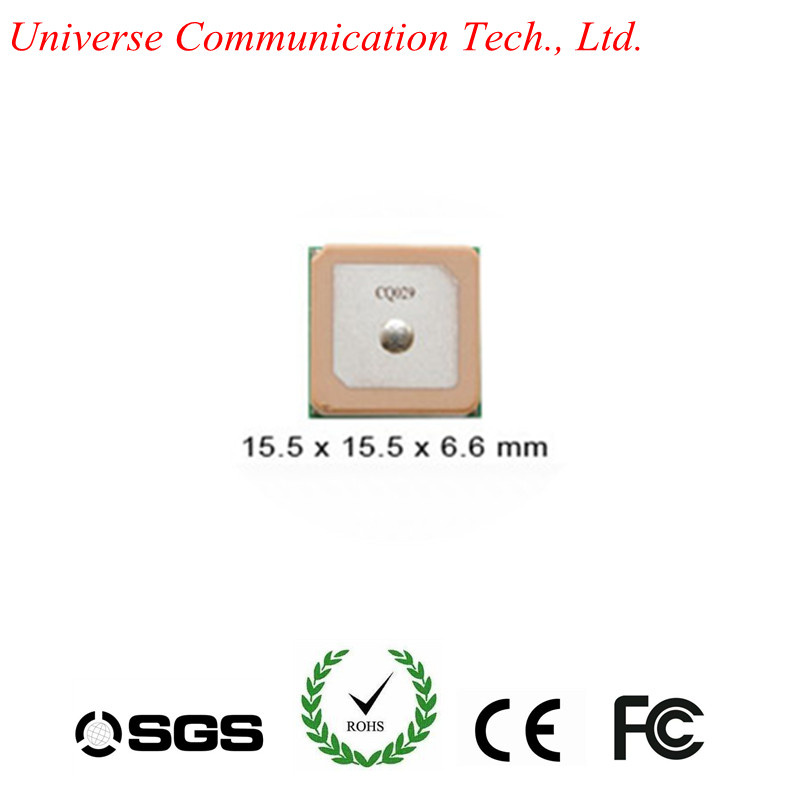

- Small form factor 15.5 x 15.5 x 6.6 mm
- SMD type with stamp holes; RoHS compliant
|
| Application |
- Personal positioning and navigation
- Automotive navigation, model aircraft navigation
- Marine navigation
- Weather balloon
- Wearable and handheld device
- UAV/FPV/Drone application
- Digital camera or portable game machine
- Driving recorder
|
Gps Receiver| Chip | HD2080 |
| Frequency | L1 1575.42MHz,C/A Code |
| Channels | Support 72 channels |
| Update rate | 1HZ default, up to 20 Hz |
| Acquisition Time | Hot start(Open sky) | <1s (typical) |
| Cold Start (Open Sky) | 32s (typical) without AGPS |
| < 15s (typical) CGEE-Start |
| Position Accuracy | Autonomous
SBAS | 3m(2D RMS)
2.5m(depends on accuracy of correction data) |
| Datum | WGS-48(default) |
| Max. Altitude | < 18,000 m |
| Max. Velocity | <515m/s |
| Protocol Support | NMEA 0183 ver 3.0 | 9600bps, 8 data bits, no parity, 1 stop bits(default)
1Hz: GGA, GLL, GSA, GSV, RMC, and VTG |
GPS Antenna| Antenna Type | Patch Antenna |
| Polarization | RHCP |
| Frequency Range | 1575.42MHz±1.023MHz |
| Gain | -1.5dBi Typ.@zenith |
| Axial Ratio | Max 4.0dBi @zenith |

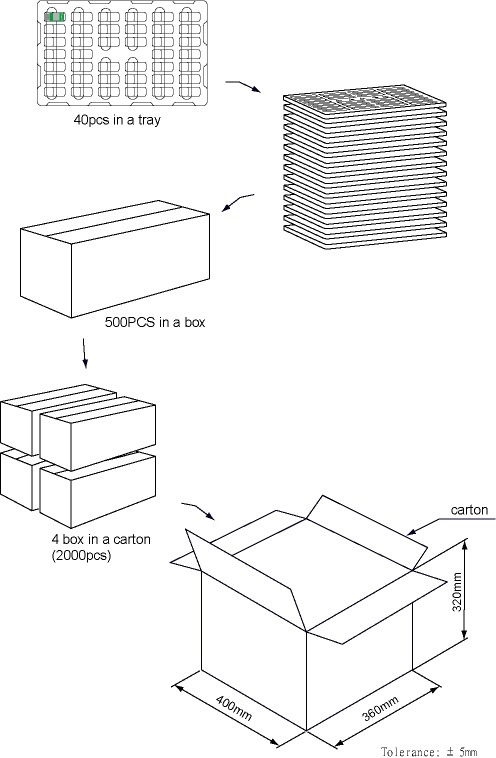

Packing Information
Shenzhen DeLin Communication Technology Co., Ltd. (formerly: Shenzhen Universe Communication Tech. Limited) is located in the beautiful coastal city--Shenzhen. Shenzhen is the leader of Chinese electronic technology, is also the world's electronic technology bridge. It has a unique geographical location and innovative spirit. DeLin Communication (parent company is Gaoke Zhong Shi Telecommunication Technology Co., Ltd. Which is established in 1993) is a professional high-tech enterprise which engaged in wireless mobile communications and satellite communication products development, production and sales. We have a group of pioneering, creative and experienced management personnel, more than 200 staffs, and 20% of them are bachelor and master's degree or higher.
The company's professional R & D team continues to introduce and R&D new products to connect with international market. Our company is committed to the design, development and production of wireless, satellite communication products. It is a professional enterprise of communication solution design and production. Our company focuses on development and production of antenna series, module series, application solutions, and application terminals. Our products are widely used in mobile phones, mobile base stations, automotive equipment, security, walkie-talkie, car networking, Internet of things, navigation, aviation, air-conditioning, detection and other wireless terminals and other fields. It so far has designed and manufactured for thousands of companies at home and abroad.
DeLin Communication Co., Ltd., as the marketing strategy management leader of parent company, bears the responsibility and performance, and also is the sales(agent) of well-known brands at home and abroad at the same time.
