Surface Immersion Silver PCB Board 2layer Fr4 with Green Soldermask
| Price: |
US $ 0.65/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-134-V1.34 |
| Final Foil External: |
1 Oz |
| Surface Finish: |
Immersion Silver |
| Solder Mask Color: |
Gloss Green |
| Board Thick: |
1.6mm |
| Colour Of Component Legend: |
White |
| Minimum Trace And Space: |
7 Mil/7 Mil |
| Minimum / Maximum Holes: |
0.5/1.6mm |
| Test: |
100% Electrical Test |
| Via: |
Plated Through Hole(Pth) |
| Board Plating: |
0.0029" |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Double Sided PCB Production ISO9001 Certified Factory FR-4 Immersion Silver Finish
Green Solder Mask Applied In Monitor Arms

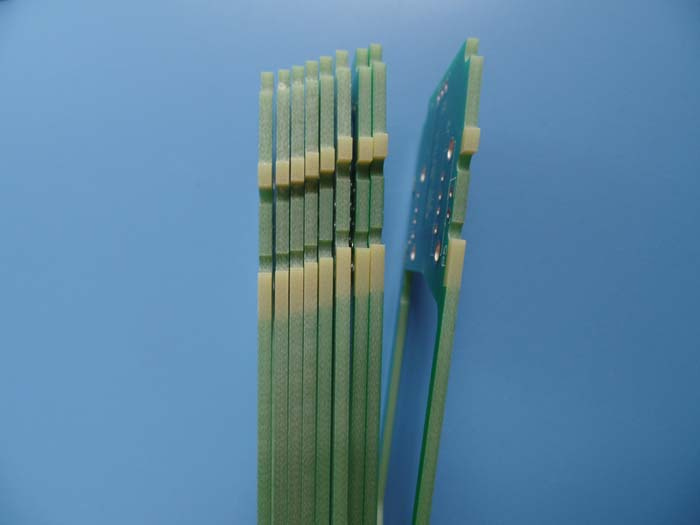

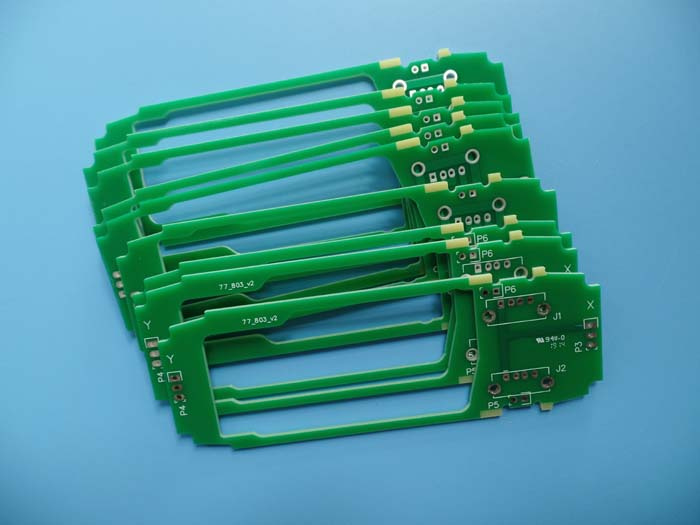

Commodity IntroductionThis is a type of FR-4 PCB for the application of Monitor Arms. It's a double sided layer board
at 1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| PCB SIZE | 11 x 35mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | NO |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+PLATE |
| FR-4 1.5mm |
| copper ------- 18um(0.5oz)+PLATE |
| TECHNOLOGY | |
| Minimum Trace and Space: | 7mil/7mil |
| Minimum / Maximum Holes: | 0.5/1.6mm |
| Number of Different Holes: | 5 |
| Number of Drill Holes: | 25 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 1 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 Tg 135ºC, IETQ IT-140 |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Silver, Ag>0.15µm |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated through hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Monitor arms, Mobile Power Supply
Lambda Power Supply
Power Supply Adapter
Laboratory Power Supply
PLC System |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Mass production capability
The manufacturing facilities are independent industrial plant. There're 16000 square meters
workshop area. And the brand new automatic equipment was introduced from Israel, Germany,
Japan and Taiwan area. As of now the manufacturing capability for 2-12 layer PCBs covers 300
thousand square feet per month. 7000-8000 types of different PCBs are shipped to worldwide
each month.
PRODUCTS & SERVICES
a) FR-4 TG>135, High TG>170, High CTI>600V
b) RO4350B, RO4003C, F4B microwave material
c) Aluminum based PCB, 1W/MK-3W/MK material
d) Layer Count up to 32 layers
e) Heavy Copper
f) Hybrid Material Multilayer PCB
g) Impedance Controlled PCB
h) HASL Lead free, Electroless Nickle Immersion Gold (ENIG), Immersion Silver, Immersion Tin,
OSP
i) Colour of Solder mask: Green, Blue, Yellow, Black, Red and it's relative Matt color
j) Special holes: blind via, countersink hole, castellation hole, press-fit hole
k) Quick turn-around (QTA) Delivery
l) Minimum Order Quantity (MOQ) 1 pcs
m) Door to Door shipment service
SERVICE AREA
North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western &
Southern Europe, Northern Europe, Central & South Asian, Middle East.
