Surface Mount Schottky Barrier Rectifier Diode Bat760

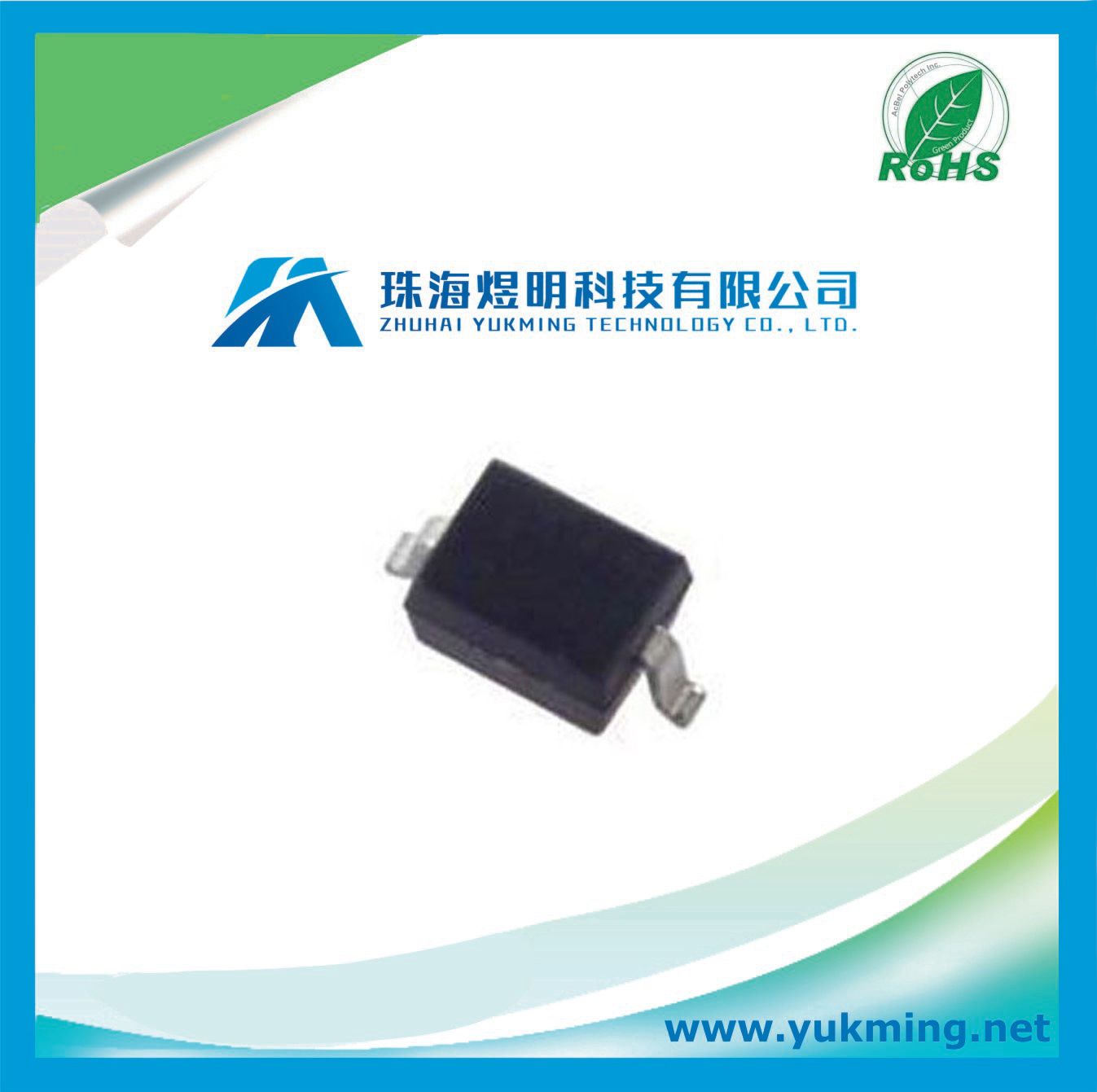

Name: Surface Mount Schottky Barrier Rectifier Diode Bat760
Brand: all-electronics-online.com
SKU: 797033185
Availability: InStock
Rating: 4.3 (49 reviews)

Price:	US $ 0.06-2.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BAT760
Peak Reverse Repetitive Voltage (V):	30
Maximum Continuous Forward Current (a):	1
Peak Non-Repetitive Surge Current (a):	5.5
Peak Forward Voltage (V):	0.55
Maximum Power Dissipation (MW):	235
Operating Temperature Range:	-65 to 150 Degree C

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

Features
Very Low Forward Voltage Drop
Guard Ring Construction for Transient Protection
High Conductance
Lead Free By Design/RoHS Compliant (Note 3)
"Green Device" (Note 4)

Mechanical Data
Case: SOD-323
Case Material - Molded Plastic, "Green" Molding
Compound. UL Flammability Classification Rating 94V-0
Moisture sensitivity: Level 1 per J-STD-020C
Terminal Connections: Cathode Band
Terminals: Finish Matte Tin annealed over Alloy 42
leadframe. Solderable per MIL-STD-202, Method 208
Marking & Type Code Information: See Page 2
Type Code: LZ
Ordering Information: See Page 2
Weight: 0.004 grams (approx.)

Specifications
EU RoHS Compliant
Type Schottky Diode
Configuration Single
Peak Reverse Repetitive Voltage (V) 30
Maximum Continuous Forward Current (A) 1
Peak Non-Repetitive Surge Current (A) 5.5
Peak Forward Voltage (V) 0.55
Peak Reverse Current (uA) 50@15V
Maximum Power Dissipation (mW) 235
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Operating Junction Temperature (°C) -65 to 150
Mounting Surface Mount
Package Height (mm) 1.05
Package Length (mm) 1.7
Package Width (mm) 1.3
PCB changed 2
Standard Package Name SOD
Supplier Package SOD-323
Pin Count 2
Lead Shape Gull-wing

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
