Surface Mount Schottky Barrier Rectifier Diode Ss16

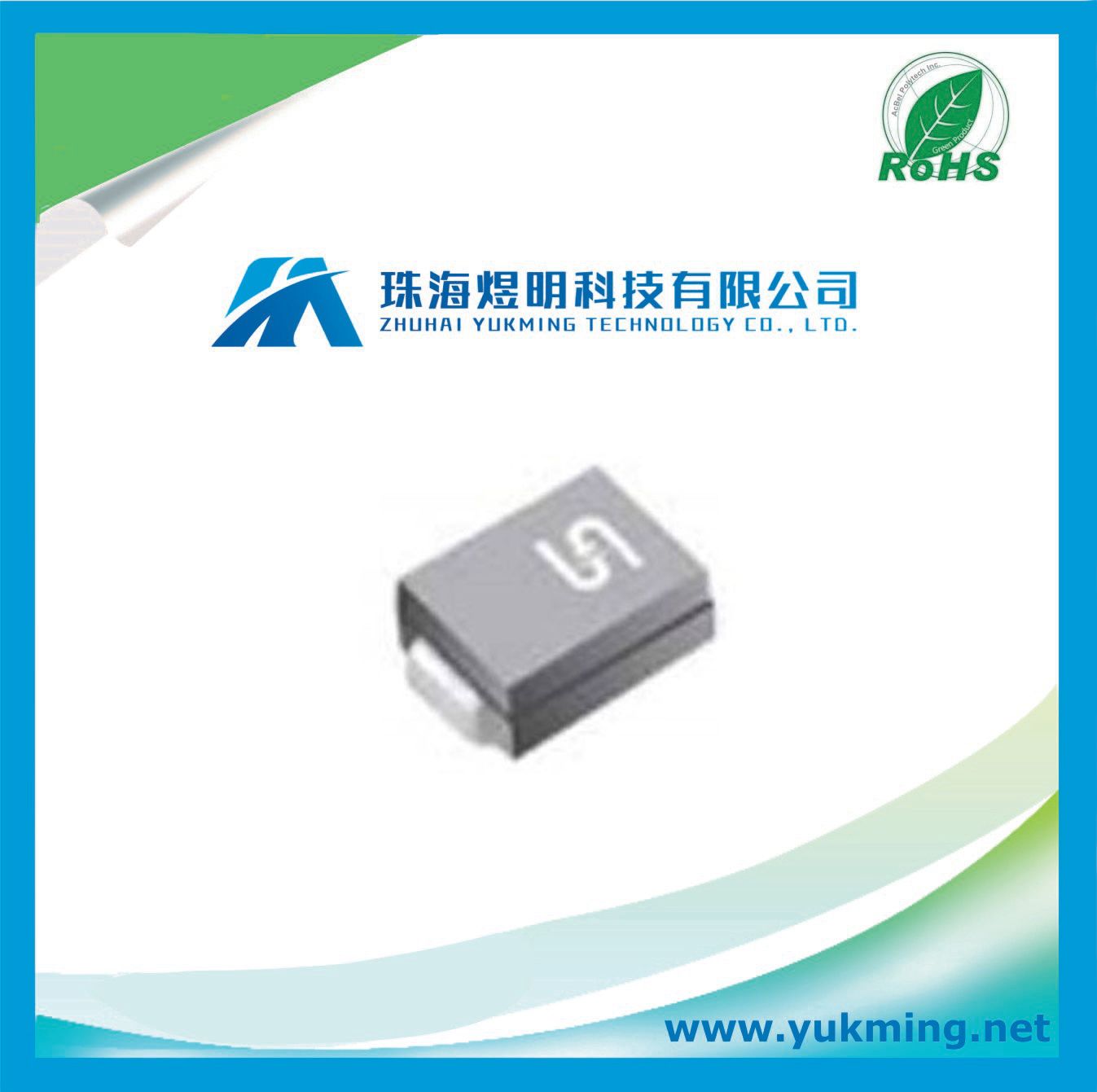

Name: Surface Mount Schottky Barrier Rectifier Diode Ss16
Brand: all-electronics-online.com
SKU: 796869395
Availability: InStock
Rating: 4.3 (129 reviews)

Price:	US $ 0.02-0.2/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SS16
Peak Reverse Repetitive Voltage (V):	60
Peak Non-Repetitive Surge Current (a):	40
Peak Forward Voltage (V):	0.7
Peak Reverse Current (Ua):	200
Maximum Power Dissipation (MW):	1100
Operating Temperature Range:	-65 to 125 Degree C

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

MANUFACTURER
Fairchild Semiconductor

PRODUCT CATEGORY
Rectifier

DESCRIPTION
Diode Schottky 60V 1A 2-Pin DO-214AC T/R

If your circuit needs to adjust from an AC to DC voltage use a Schottky diode SS16 rectifier from Fairchild Semiconductor. Its maximum power dissipation is 1100 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This rectifier has a minimum operating temperature of -65 °C and a maximum of 125 °C. It is made in a single configuration. Its peak non-repetitive surge current is 40 A, while its maximum continuous forward current is 1@Ta=75C A.

Specifications
EU RoHS Compliant
Type Schottky Diode
Configuration Single
Peak Reverse Repetitive Voltage (V) 60
Maximum Continuous Forward Current (A) 1@Ta=75C
Peak Non-Repetitive Surge Current (A) 40
Peak Forward Voltage (V) 0.7
Peak Reverse Current (uA) 200
Maximum Power Dissipation (mW) 1100
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 125
Packaging Tape and Reel
Operating Junction Temperature (°C) -65 to 125
Mounting Surface Mount
Package Height (mm) 2.2(Max)
Package Length (mm) 4.75(Max)
Package Width (mm) 2.95(Max)
PCB changed 2
Standard Package Name DO-214-AC
Supplier Package DO-214AC
Pin Count 2
Lead Shape J-Lead

Features
• Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
• For surface mounted applications
• Metal silicon junction, majority carrier conduction
• Built-in strain relief, ideal for automated placement
• Low power loss, high efficiency.
• High forward surge current capability

Mechanical Data
• Case: SMA (DO-214AC) molded plastic body
• Terminals: leads solderable per MIL-STD-750,
Method 2026
• Polarity: color band denotes cathode end

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
