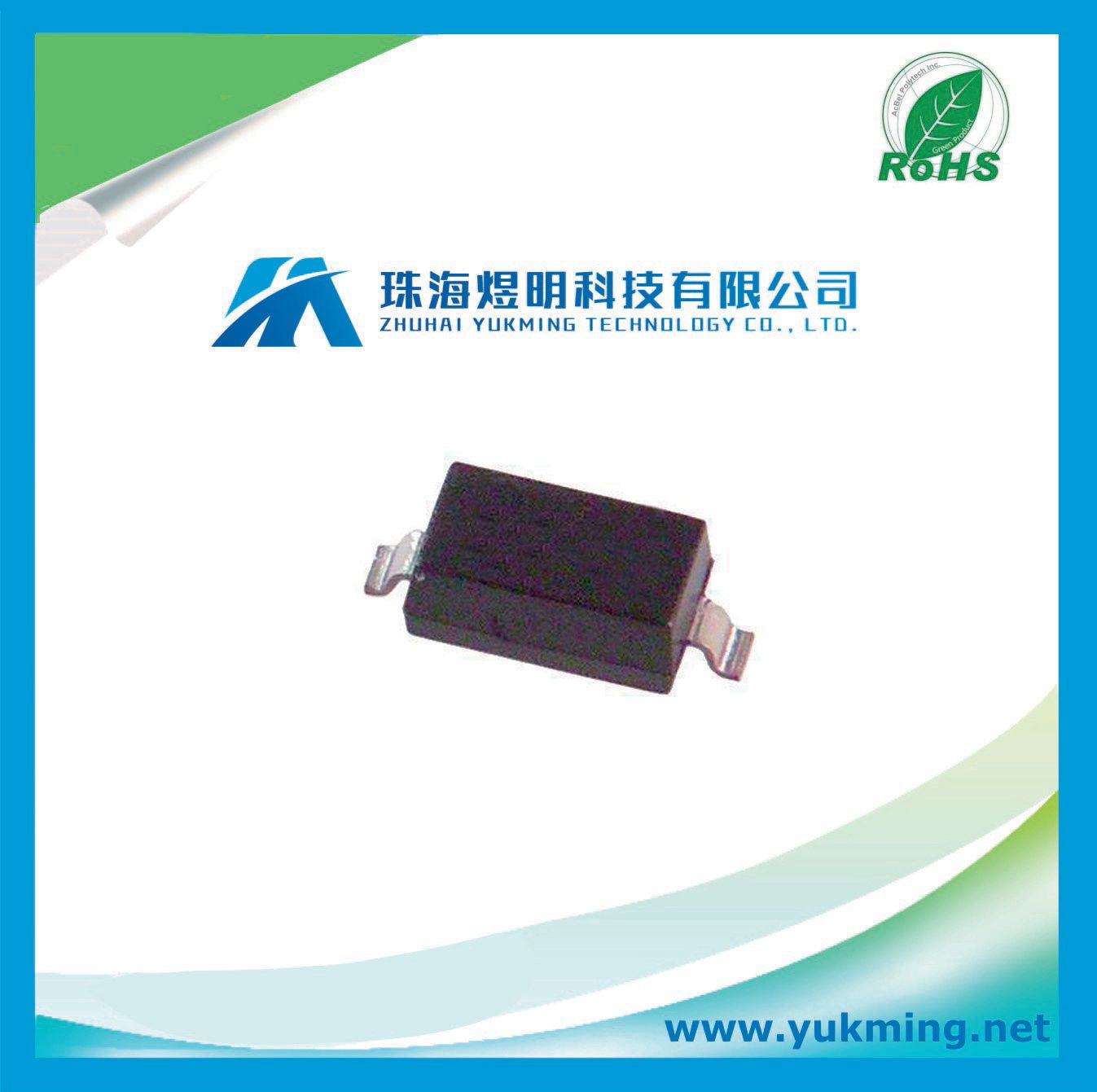

Surface Mount Schottky Power Rectifier Diode Mbr0520lt1g

Name: Surface Mount Schottky Power Rectifier Diode Mbr0520lt1g
Brand: all-electronics-online.com
SKU: 802025565
Availability: InStock
Rating: 4.8 (86 reviews)

Price:	US $ 0.2-2.0/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	MBR0520LT1G
Category:	Schottky Diodes
Peak Backward Voltage:	20V
Forward Continuous Current:	0.5 a
Forward Voltage Drop:	0.385 V
Operation Temperature Range:	-65~125
Mounting:	SMD/SMT

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

Surface Mount Schottky Power Rectifier Plastic SOD−123 Package

Description
The Schottky Power Rectifier employs the Schottky Barrier
principle with a barrier metal that produces optimal forward voltage
drop−reverse current tradeoff. Ideally suited for low voltage, high
frequency rectification, or as free wheeling and polarity protection
diodes in surface mount applications where compact size and weight
are critical to the system. This package provides an alternative to the
leadless 34 MELF style package. These state−of−the−art devices have
the following features:

Features
• Guardring for Stress Protection
• Very Low Forward Voltage (0.38 V Max @ 0.5 A, 25°C)
• 125°C Operating Junction Temperature
• Epoxy Meets UL 94 V−0 @ 0.125 in
• Package Designed for Optimal Automated Board Assembly
• Pb−Free Packages are Available

Mechanical Characteristics
• Reel Options: MBR0520LT1 = 3,000 per 7″ reel/8 mm tape
MBR0520LT3 = 10,000 per 13″ reel/8 mm tape
• Polarity Designator: Cathode Band
• Weight: 11.7 mg (approximately)
• Case: Epoxy, Molded
• Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
• Lead and Mounting Surface Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
