Surface Mounted Distribution Box
| Price: |
Negotiable/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TSM 6 Way Distribution Box |
| Types Of Mounted: |
Open R Concealed Mounted |
| Material: |
Insulation, Fire-Proof Type Refractory Material |
| Ways Of Distribution Box: |
W Way to 36 Ways |
| Delievery Time: |
Within 15 Working Days After Receive The Deposit |
| Voltage: |
220V/380V |
| Color: |
White |
| Type: |
Power |
| Structure: |
Fixed Board |
| Certification: |
Ce |
| Size: |
146*200*94mm |
| Shell Material: |
ABS/PC |
| Brand: |
Meanray |
Product Description
Surface Mounted Distribution Box
Surface Mounted Distribution Box Description:
Surface Mounted Distribution Box is suitable for distribution control of modern buildings,such as large stores,guesthouse,stations,commercial net points,laboratories,factories and enterprises,used in AC 50-60hz,below 500V illuminating and mini power controling circuit as over current,overload and short circuit protection and frequency switch under the rated working state,2way to 36ways are available.
Surface Mounted Distribution Box Technical Data:1)complete with earth and neutral bars together with neutral link wire
2)Rated current:max.125A
3)Material:fire-resistant/ABS
4)Protection degree:IP40
TSM surface series Electrical Power distribution box wtih CE approval

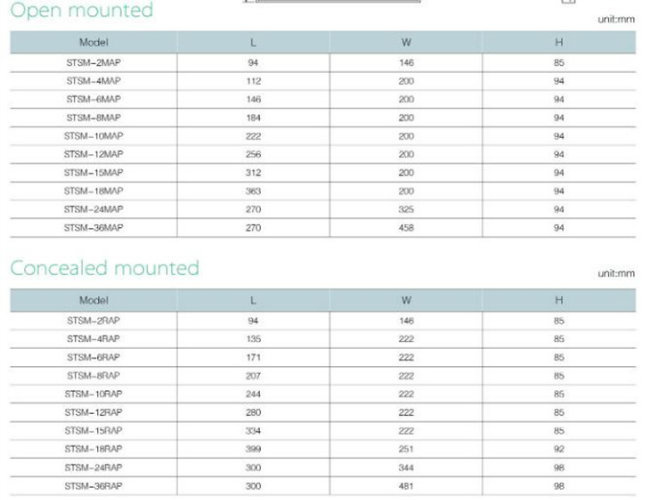

Surface Mounted Distribution Box Dimension:

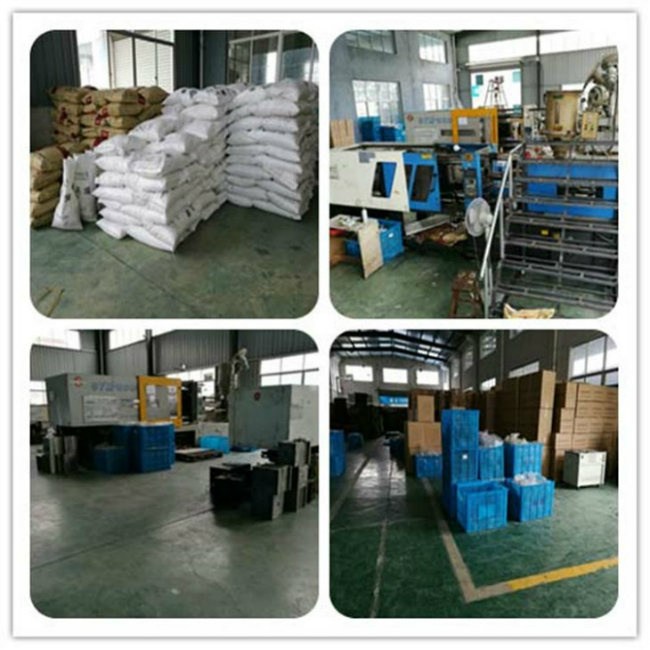

Surface Mounted Distribution Box Workshop:
Surface Mounted Distribution Box Advantage:a.Waterproof Distribution Box weighs approximately 1/4 the weight of an iron box and can be easily installed or moved.
b.The product is free from corrosion, carries superior insulation.
c. Material:The Product has passed waterproof and dust-proof carried out under rigid quality standards.(IP 40).
d. Special Requirement:OEM service available.
e. Usage: convenient for the installation of Terminal Substitution Rail, Button Box, Small Terminal, Signal
Surface Mounted Distribution Box Certificates:
Surface Mounted Distribution Box Shipping:
