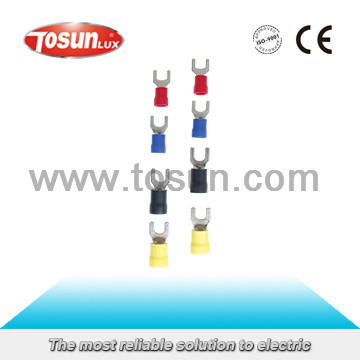

Sv Spade Shaped Insulated Terminal

Name: Sv Spade Shaped Insulated Terminal
Brand: all-electronics-online.com
SKU: 756599305
Availability: InStock
Rating: 4.7 (53 reviews)

Price:	US $ 0.008-0.04/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Conduct Electricity
Brand:	Tosunlux

Product Description

Specification

Lead section: 0.5~1.5mm²(A.W.G.22-16) Max current: Imax=9A
ITEM NO.	USA	d2	dimension(mm)					color
ITEM NO.	Screw	d2	B	L	F	H	DΦ	color
SV 1.25-3	#4	3.2	5.7	21.2	6.5	10	4.3	red
SV 1.25-3.5S	#6	3.7	5.7	21.2	6.5
SV 1.25-3.5L	#6	3.7	6.4	21.2	6.5
SV 1.25-4S	#8	4.3	6.4	21.2	6.5
SV 1.25-4M	#8	4.3	7.2	21.2	6.5
SV 1.25-4L	#8	4.3	8.1	21.2	6.5
SV 1.25-5S	#10	5.3	8.1	21.2	6.5
SV 1.25-5L	#10	5.3	9.5	21.2	6.5
SV 1.25-6S	1/4	6.5	9.5	21.2	6.5
SV 1.25-6L	1/4	6.5	12	21.2	11

Lead section: 1.5~2.5mm²(A.W.G.16-14) Max current: Imax=27A
ITEM NO.	USA	d2	dimension(mm)					color
ITEM NO.	Screw	d2	B	L	F	H	DΦ	color
SV 2-3	#4	3.2	5.7	21.2	6.5	10	4.9	blue
SV 2-3.5S	#6	3.7	5.7	21.2	6.5
SV 2-3.5L	#6	3.7	6.4	21.2	6.5
SV 2-4S	#8	4.3	6.4	21.2	6.5
SV 2-4M	#8	4.3	7.2	21.2	6.5
SV 2-4L	#8	4.3	8.1	21.2	6.5
SV 2-5S	#10	5.3	8.1	21.2	6.5
SV 2-5L	#10	5.3	9.5	21.2	6.5
SV 2-6S	1/4	6.5	9.5	21.2	6.5
SV 2-6L	1/4	6.5	12	12	11

Lead section: 2.5~4mm²(A.W.G.14-12) Max current: Imax=37A
ITEM NO.	USA	d2	dimension(mm)					color
ITEM NO.	Screw	d2	B	L	F	H	DΦ	color
SV 3.5-4	#8	4.3	8	24.8	7	12.5	6.2	black
SV 3.5-5	#10	5.3	8	24.8	7
SV 3.5-6	1/4	6.5	12	28	12.1

Lead section: 4~6mm²(A.W.G.12-10) Max current: Imax=48A
ITEM NO.	USA	d2	dimension(mm)					color
ITEM NO.	Screw	d2	B	L	F	H	DΦ	color
SV 5.5-3.5	#6	3.7	8.3	25.2	7.5	12.5	6.7	yellow
SV 5.5-4S	#8	4.3	8.3	25.2	7.5
SV 5.5-4L	#8	4.3	9	25.2	7.5
SV 5.5-5	#10	5.3	9	25.2	7.5
SV 5.5-6S	1/4	6.5	9	25.2	7.5
SV 5.5-6L	1/4	6.5	12	31.2	12
SV 5.5-8	5/16	8.4	14	30	11.5
