Sv Tinning Copper Fork Insulated Block Spades Terminal

Name: Sv Tinning Copper Fork Insulated Block Spades Terminal
Brand: all-electronics-online.com
SKU: 764288905
Availability: InStock
Rating: 4.7 (121 reviews)

Price:	US $ 0.011/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Single Hole Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Shape:	Fork
Brand:	Jwl

Product Description

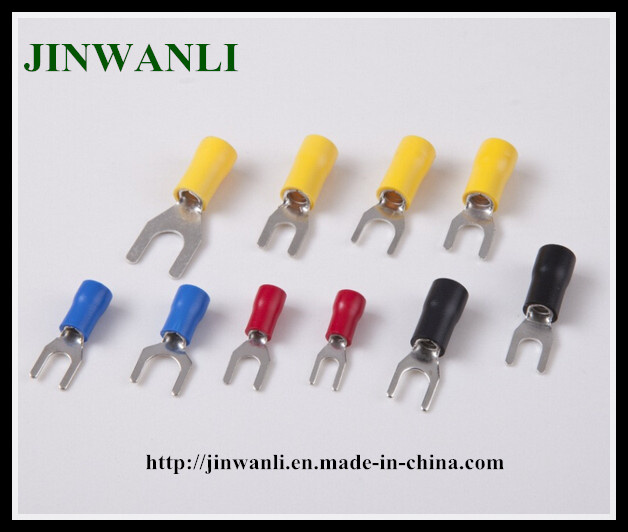

Insulated Spade terminal:

Features:
1.Made by high purity copper
2.Tin plating:Corrosion Resistance
3.Color:Red Blue Black Yellow
4.Type:TU-JTK
5.Thickness:0.7mm 0.8mm 1.0mm
6.ISO 9001 & CE &SGS certificate

lead section:0.5~1.5mm2(A.W.G:22~16) Imax=19A material:pure copper thickness:0.75mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)					color
Item NO	USA BOLT NO	BOLT dia.d2(mm)	B	L	F	H	Dφ	color
SV 1.25-3	#4	3.2	5.7	21.2	6.5	10	4.3	red
SVS 1.25-3.5	#6	3.7	5.7	21.2	6.5
SVL 1.25-3.5	#6	3.7	6.4	21.2	6.5
SVS 1.25-4	#8	4.3	6.4	21.2	6.5
SVM 1.25-4	#8	4.3	7.2	21.2	6.5
SVL 1.25-4	#8	4.3	8.1	21.2	6.5
SVS 1.25-5	#10	5.3	8.1	21.2	6.5
SVL 1.25-5	#10	5.3	9.5	21.2	6.5
SVS 1.25-6	1/4	6.4	9.5	21.2	6.5
SVL 1.25-6	1/4	6.4	12	27.2	11
lead section:1.5~2.5mm2(A.W.G:16~14) Imax=27A material:pure copper thickness:0.8mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)					color
Item NO	USA BOLT NO	BOLT dia.d2(mm)	B	L	F	H	Dφ	color
SV 2-3	#4	3.2	5.7	21.2	6.5	10	4.9	blue
SVS 2-3.5	#6	3.7	5.7	21.2	6.5
SVL 2-3.5	#6	3.7	6	21.2	6.5
SVS 2-4	#8	4.3	6.4	21.2	6.5
SVM 2-4	#8	4.3	7.2	21.2	6.5
SVL 2-4	#8	4.3	8.1	21.2	6.5
SVS 2-5	#10	5.3	8.1	21.2	6.5
SVL 2-5	#10	5.3	9.5	21.2	6.5
SVS 2-6	1/4	6.4	9.5	21.2	6.5
SVL 2-6	1/4	6.4	12	27.2	11
lead section:2.5~4mm2(A.W.G:14~12) Imax=37A material:pure copper thickness:1.0mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)					color
Item NO	USA BOLT NO	BOLT dia.d2(mm)	B	L	F	H	Dφ	color
SV 3.5-3	#4	3.2	5.7	24.8	7	13	6.2	black
SV 3.5-4	#8	4.3	8	24.8	7
SV 3.5-5	#10	5.3	8	24.8	7
SV 3.5-6	1/4	6.4	12	28	12.1
SV 3.5-8	5/16	8.4	12	33.7	13.7
lead section:4~6mm2(A.W.G:12~10) Imax=48A material:pure copper thickness:1.0mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)					color
Item NO	USA BOLT NO	BOLT dia.d2(mm)	B	L	F	H	Dφ	color
SV 5.5-3.5	#6	3.7	8.3	25.2	7.5	13	6.7	yellow
SVS 5.5-4	#8	4.3	8.3	25.2	7.5
SVL 5.5-4	#8	4.3	9	25.2	7.5
SV 5.5-5	#10	5.3	9	25.2	7.5
SVS 5.5-6	1/4	6.4	9	25.2	7.5
SVL 5.5-6	1/4	6.4	12	31.2	12
SV 5.5-8	5/16	8.4	14	30	11.5

Complete products:	insulate terminals,terminal block, etc 36 kinds of wiring accessories series
Quality assurance:	strict quality control before shipment
High efficiency:	Handling customer questions within 24 hours
Increase customer utility:	personal tracking, 2 to 10 days shipment after received payment

How to used
The product is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on ,and it is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit , The products are sold to over 20 provinces,municipalities and autonomous regions in our country ,and sortheast Asia,European ,Americal and so on areas as well,they are quite enjoyed by clients.

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
