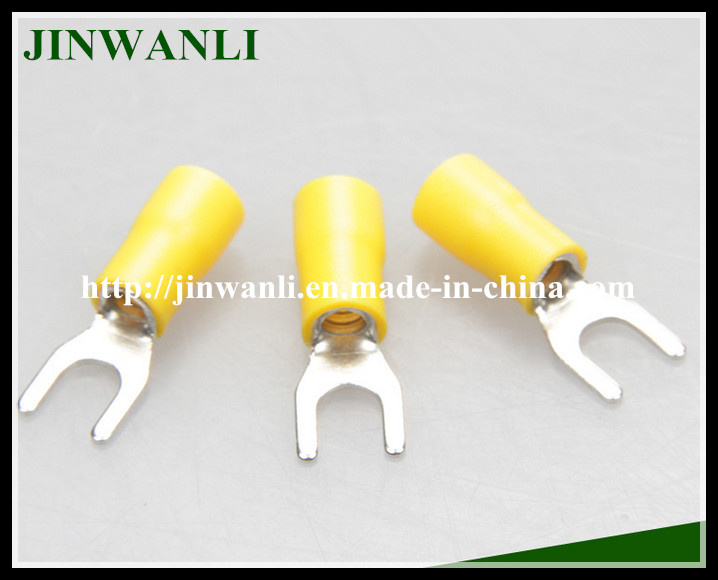

Insulated Fork Terminal
RoHS,UKAS Certificate

Material:purple copper,with tin plated
Applied current:
0.5-1.5mm²,22-16AWG......19A
1.5-2.5mm²,16-14AWG......27A
2.5-4mm²,14-12AWG......37A
4-6mm²,12-10AWG......48A

Technical data

Item No	USA Bolt Size	Bolt Dia. d2(mm)	Dimension(mm)					Color
Item No	USA Bolt Size	Bolt Dia. d2(mm)	B	L	F	H	D	Color
SV1.25-3.2	#4	3.2	5.7	21.2	6.5	10.0	4.3	Red
SVS1.25-3.5	#6	3.7	5.7	21.2	6.5
SVL1.25-3.5	#6	3.7	6.4	21.2	6.5
SVS1.25-4	#8	4.3	6.4	21.2	6.5
SVM1.25-4	#8	4.3	7.2	21.2	6.5
SVL1.25-4	#8	4.3	8.1	21.2	6.5
SVS1.25-5	#10	5.3	8.1	21.2	6.5
SVL1.25-5	#10	5.3	9.5	21.2	6.5
SVS1.25-6	1/4	6.4	9.5	21.2	6.5
SVL1.25-6	1/4	6.4	12.0	27.2	11.0
SV1.25-8	1/4	8.5	14.5	30.5	12.55

Size of cable: 1.5~2.5mm2 (A.W.G 16~14) Max. Current=27A
Item No	Stud Size	Screw dia. d2Ø(mm)	Dimension (mm)						Color
Item No	Stud Size	Screw dia. d2Ø(mm)	B	L	F	E	DØ	dø	Color
SV2-3.2	#4	3.2	5.7	21.2	6.5	10.0	4.9	2.4	Blue
SVS2-3.7	#6	3.7	5.7	21.2	6.5
SVL2-3.7	#6	3.7	6	21.2	6.5
SVS2-4	#8	4.3	6.4	21.2	6.5
SVM2-4	#8	4.3	7.2	21.2	6.5
SVL2-4	#8	4.3	8.1	21.2	6.5
SVS2-5	#10	5.3	8.1	21.2	6.5
SVL2-5	#10	5.3	9.5	21.2	6.5
SVS2-6	1/4	6.5	9.5	21.2	6.5
SVL2-6	1/4	6.5	12	21.7	11

Size of cable: 2.5~4mm2 (A.W.G 14~12) Max. Current=37A
Item No	Stud Size	Screw dia. d2Ø(mm)	Dimension (mm)						Color
Item No	Stud Size	Screw dia. d2Ø(mm)	B	L	F	E	DØ	dø	Color
SV3.5-3.7	#6	3.7	8	24.8	7	12.5	6.2	3.2	Black
SV3.5-4	#8	4.3	8	24.8	7
SV3.5-5	#10	5.3	8	24.8	7
SV3.5-6	1/4	6.5	12	28	12

Size of cable: 4~6mm (A.W.G 12~10) Max. Current=48A
Item No	Stud Size	Screw dia. d2Ø(mm)	Dimension (mm)						Color
Item No	Stud Size	Screw dia. d2Ø(mm)	B	L	F	E	DØ	dø	Color
SV5.5-3.7	#6	3.7	8.3	25.2	7.5	12.5	6.7	4	Yellow
SVS5.5-4	#8	4.3	8.3	25.2	7.5
SVL5.5-4	#8	4.3	9	23.9	7.5
SV5.5-5	#10	5.3	9	23.9	7.5
SVS5.5-6	1/4	6.5	9	23.9	7.5
SVL5.5-6	1/4	6.5	12	31.2	12
SV5.5-8	5/16	8.4	14	30	11.5

Features:

1.Electrical crimp terminal connector with internal tin-plated copper tube to ensure perfect connections between wires.

2.Usege:Just strip of the wire and insert securely inside the connector,crimp by crimping tool

3.Crimping tools:Air tool QUICHER HS-30 or Muromoto MR-30A

4.Transparent color or milk white color,the milk white color can pass 750°C and 850°C high temperature test from TUV.It is our own advantage.

5.Suitable wire range:A.W.G 16-24.

6.passed through certificates of UL,CE,CSA,CQC,as well as meet the requirements.
