SVC-10000va 3p AC Full Automatic Voltage Stabilizer

Name: SVC-10000va 3p AC Full Automatic Voltage Stabilizer
Brand: all-electronics-online.com
SKU: 694104592
Availability: InStock
Rating: 4.3 (28 reviews)

Price:	US $ 120-125/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase.:	3p
Power:	10000va Voltage Stabilizer
Frequency.:	50/60Hz Voltage Stabilizer
Usage:	SVC
Frequency:	Low Frequency

Product Description

Specifications

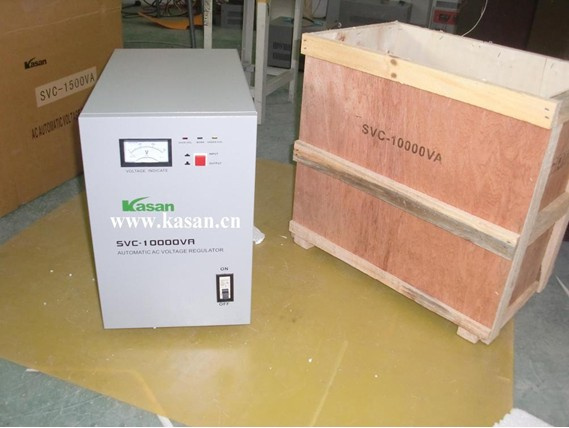

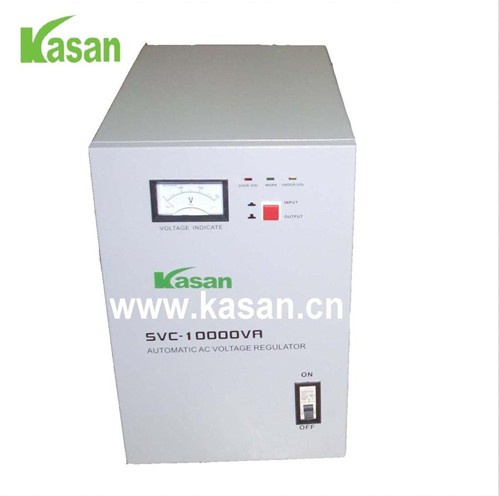

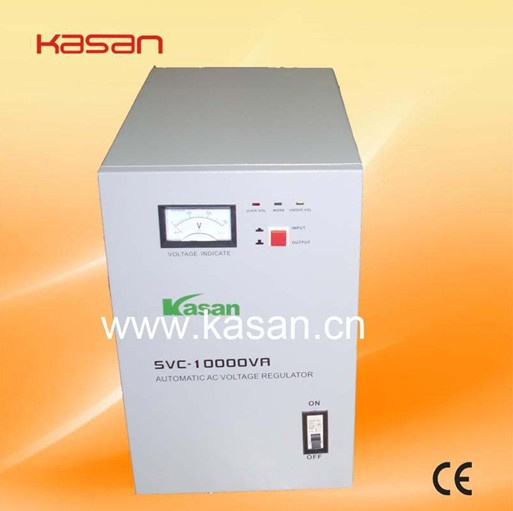

SVC-10000VA 3P AC Full Automatic Voltage Stabilizer

Application:

SVC-10000VA 3P Full Automatic Voltage Regulator

SVC-10000va 3P Full Automatic Voltage Regulator is one kind of our dominant products, made up of contact auto voltage regulator, servo motor, automatic control circuit, etc. When the power network voltage fluctuates or the load varies, automaticsampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, then, the output voltage will be adjusted to rated value and get a steady state.

This voltage stabilizer is of common type, it has the function of connecting through the commercial power. Compared with other voltage stabilizers, it has the advantage of great variety, complete specification, nice appearance and obvious features of high efficiency, no wave distortion,reliable performance, working continually for long time, besides, it is provided with short time delay and over voltage protection, and the long time delay and under voltage protection also can be set according to user requirement. This product is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally.
For office equipment, testing equipment, medical equipment,industrial automation equipment, household appliance, lighting system,communication system, etc.
Provide kinds of electrical appliances with abundant electric powermeeting different requirements

Input voltage	150V-250V	Ambient temperature	-10°C ~+40°C
Output voltage	220V±3%,110V±3%	Relative humidity	less than90%
Frequency	50Hz/60Hz	Waveform distortion	Non-lack fidelity waveform
Response time	less than 1s(against 10% input voltage deviation)	Power Factor COSΦ	0.8
Efficiency	more than 90%	Insulation resistance	more than 5MΩ

Outline and Packing

Type	Outline(cm)			Weight(Kg)	Qty/CTN
Type	L	W	H	Weight(Kg)	Qty/CTN
SVC-500VA	18.5	15	12.5	17	4PCS
SVC-1000VA	21	18	14.5	20	4PCS
SVC-1500VA	21	18	14.5	25	4PCS
SVC-2000VA	27.5	23.5	18.5	7.8	1PC
SVC-3000VA	29	23	22	9.8	1PC
SVC-5000VA	45	24	18.5	14	1PC
SVC-7500VA	47	26	22	19.5	1PC
SVC-10000VA	47	26	22	24.5	1PC
SVC-15000VA	42	38	73	35	1PC
SVC-20000VA	42	38	73	68.5	1PC
SVC-30000VA	42	38	83	80	1PC
SVC-5000VA	28	30	46	19	1PC(Cabinet)
SVC-10000VA	44	32	56	31	1PC(Cabinet)
