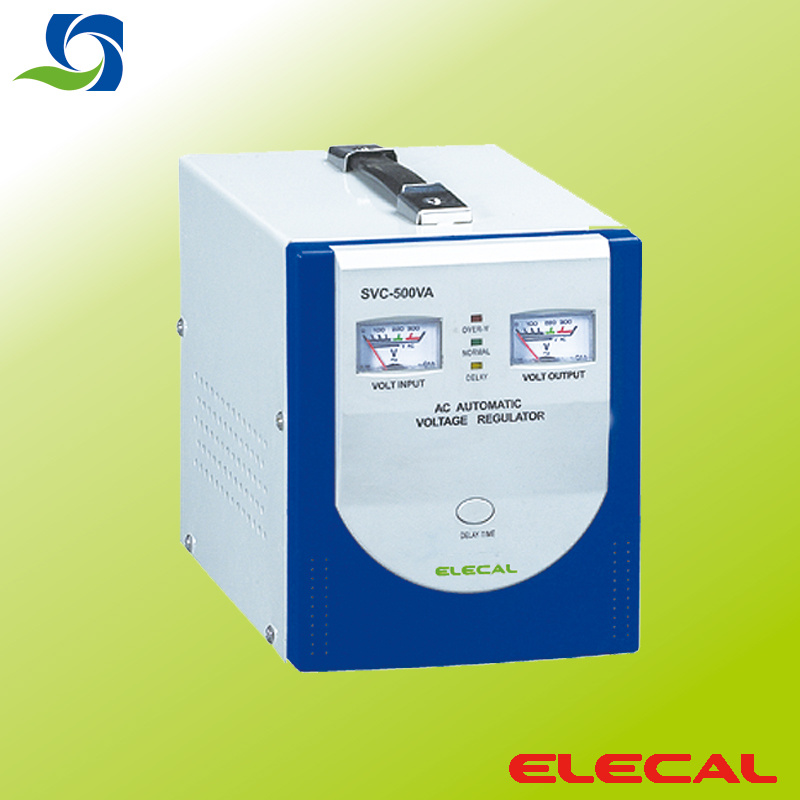

SVC (NEW) Single-Phase and Three-Phase High Accuracy Full Automatic AC Voltage Stabilizer

Prod Model:	SVC (NEW)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current Type:	AC
Phase:	Single Phase
Frequency:	Low Frequency
Brand:	Elecal

Product Description

1.Application
SVC(LED) automatic voltage stabilizer consists of contact voltage regulator,sampling control cir-cuit and servomotor as well.It has excellent features,such as small waveform distortion,highefficiency,high power factor,free from the effect or frequency variation of supply.It can bewidely used in most situations where the voltage stabilization is required.

Please check the voltage stabilizer supply voltage and input voltage range (05KVA-5KVA)	150V-250V	220V 110V	Mustn't use the voltage stabilizer in case of overload
(0.5KVA-5KVA)	150V-250V	220V	Please use good cables for connecting
Please pay attention to the cable connections between input terminal and power supply, and between output terminal and load			If the fuse is damaged, please examine your voltage stabilizer and load
The output voltage of the instrument shall be the same as that of voltage stabilizer			Please use the fuses of same rated values, mustn't use the nonrated fuses or wires
Please adjust the selector switch of input voltage to a voltage step that is the same as power supply			Install it in the dry places without corrosive gas and water




3. Outline and packing


Type	Outline(cm)			Weight(Kg)	Qty/CTN
	L	W	H
SVC-D500VA	18.5	15	12.5	17	4PCS
SVC-D1000VA	21	18	14.5	20	4PCS
SVC-D1500VA	21	18	14.5	25	4PCS
SVC-D2000VA	27.5	23.5	18.5	7.8	1PC
SVC-D3000VA	29	23	22	9.8	1PC
SVC-D5000VA	45	24	18.5	14	1PC
SVC-D7500VA	47	26	22	19.5	1PC
SVC-D10000VA	47	26	22	24.5	1PC
SVC-D15000VA	42	38	73	35	1PC
SVC-D20000VA	42	38	73	68.5	1PC
SVC-D30000VA	42	38	83	80	1PC
SVC-D5000VA	28	30	46	19	1PC (Cabinet)
SVC-D10000VA	44	32	56	31	1PC (Cabinet)
