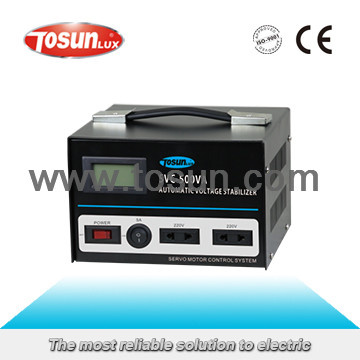

SVC Single Phase Voltage Stabilizer (500VA)

Name: SVC Single Phase Voltage Stabilizer (500VA)
Brand: all-electronics-online.com
SKU: 753430875
Availability: InStock
Rating: 4.4 (27 reviews)

Price:	US $ 19.5-25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVC-500VA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Input Voltage:	130V~250V 160V~250V
Efficiency:	>90%
Response Time:	<1 Sec. Against 10% Input Voltage Deviation
Waveform Distortion:	Non-Lack Fidelity in Waveform
Relative Humidity:	<95%
Ambient Temperature:	-5°c~+40°c
Dimension:	197X186X140mm
Carton:	Beehive Carton
Wire:	100% Pure Copper
Display:	LCD Display
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Low Frequency
Brand:	Tosunlux

Product Description

Application

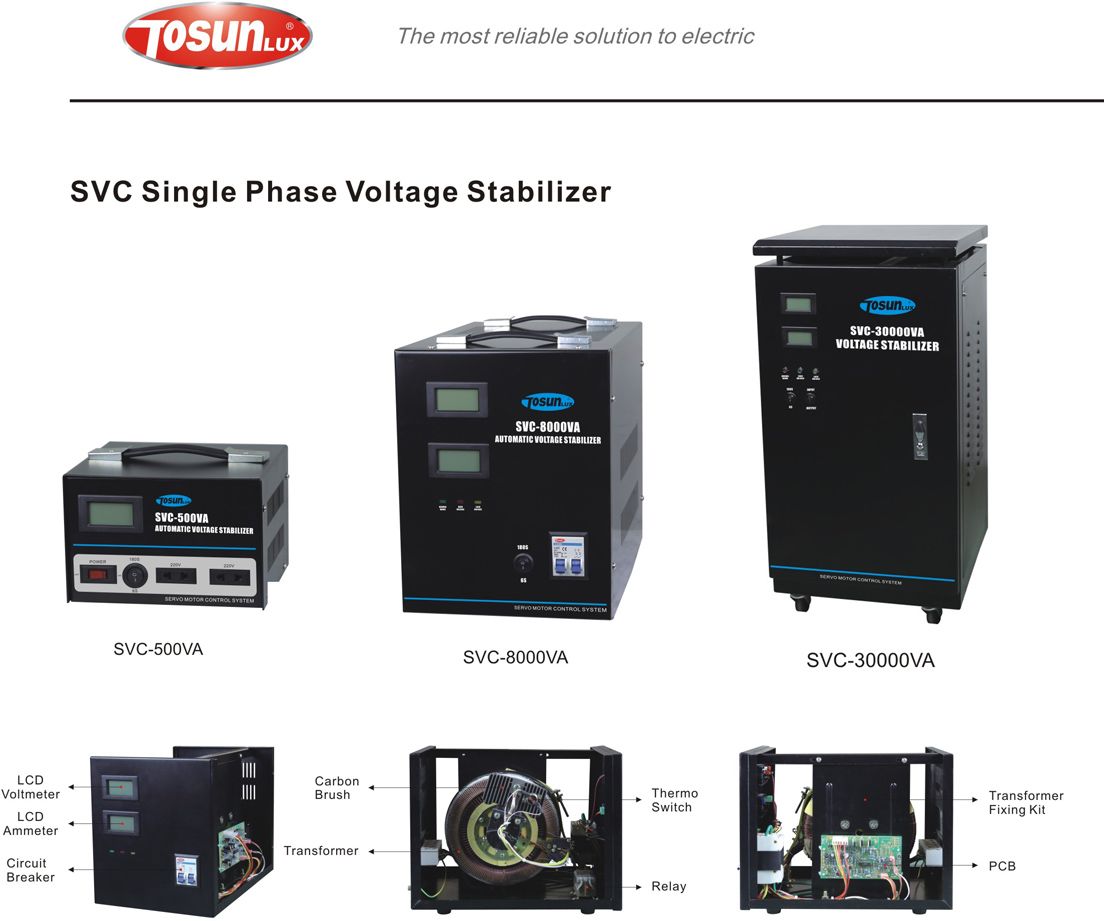

SVC fully automatic A.C voltage stabilizer consists of contact voltage regulator, sampling control circuit and servo motor. When input voltage or load changes, sampling control circuit will sample and amplify the voltage, and the servo motor will rotate in the desired direction, which turns the arm, adjusting voltage until the output voltage is regulated into the rated output voltage.
The product is of small size, light weight, less output waveform distortion and reliable performance. To guarantee its quality, foreign advanced technology and main parts are introduced and imported . It is widely used in electrical appliances which need constant. The product itself consumes little and can be continuously used for a long time.

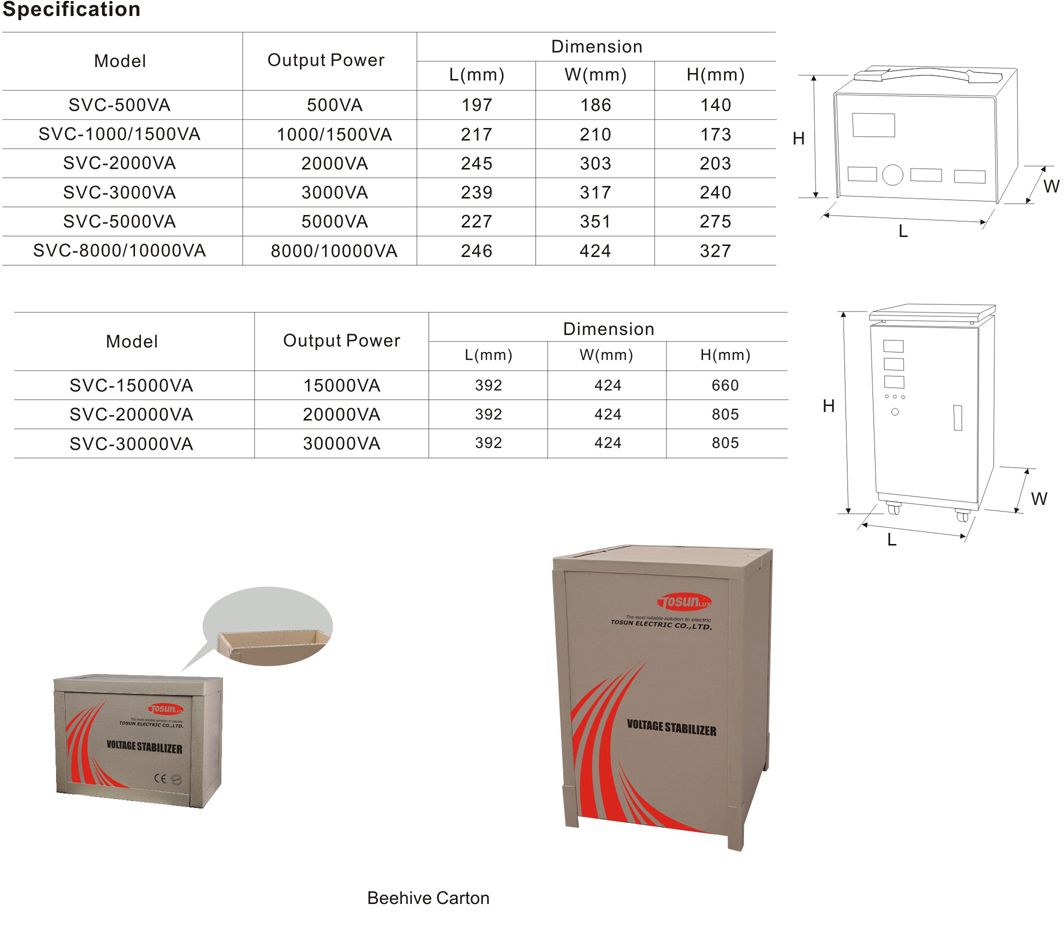

Specification

Input Voltage	130V~250V 160V~250V
Outpu Voltage	220V±3% with 110V±3%
Phase	Single Phase
Frequency	50/60Hz
Response Time	within 1 second against 10% input voltage deviation
Efficiency	better than 90%
Ambient Temperature	-5ºC~+40ºC
Relative Humidity	less than 95%
Waveform Distortion	non-lack fidelity in waveform

Model	Output Power	Dimension
Model	Output Power	L(mm)	W(mm)	H(mm)
SVC-500VA	500VA	197	186	140
SVC-1000/1500VA	1000/1500VA	217	210	173
SVC-2000VA	2000VA	245	303	203
SVC-3000VA	3000VA	239	317	240
SVC-5000VA	5000VA	227	351	275
SVC-8000/10000VA	8000/10000VA	246	424	327
SVC-15000VA	15000VA	392	424	660
SVC-20000VA	20000VA	392	424	805
SVC-30000VA	30000VA	392	424	805

Advantages:
Shut trip protection
Thermo protection
Over voltage protection
Overload protection
Delay protection
Low voltage protection
