SVC Single Phase Voltage Stabilizer

Name: SVC Single Phase Voltage Stabilizer
Brand: all-electronics-online.com
SKU: 752376755
Availability: InStock
Rating: 4.7 (132 reviews)

Price:	US $ 15-1700/Piece
Trade Terms:	FOB,CFR
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	500va-30kVA
Coil:	Pure Copper
Efficiency:	>90%
Input Voltage:	150-250VAC
Output Voltage:	220±3%
Rated Frequency (Hz):	50/60Hz
Waveform Distortion:	Non-Lack Fidelity in Waveform
Response Time:	<1s
Ambient Temperature:	-5ºC-+40ºC
Relative Humidity:	<95%
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Intermediate Frequency
Application Range:	Home, Schoo, Industry and So on
Brand:	Tosun

Product Description

Specification

Input Voltage	130V-250V 160V-250V
Output Voltage	220±3% with 110V±3%
Phase	Single Phase
Frequency	220±3% with 110V±3%
Response Time	within 1 sec. against 10% input voltage deviation
Efficiency	Better than 90%
Ambient Temperature	-5ºC-+40ºC
Relative Humidity	Less than 95%
Waveform Distortion	Non-lack fidelity in waveform

Dimension

Model	Output Power	Dimension
Model	Output Power	L(mm)	W(mm)	H(mm)
SVC-500VA	500VA	197	186	140
SVC-1000/1500VA	1000/1500VA	217	210	173
SVC-2000VA	2000VA	245	303	203
SVC-3000VA	3000VA	239	317	240
SVC-5000VA	5000VA	227	351	275
SVC-8000/10000VA	8000/10000VA	246	424	327
SVC-15000VA	15000VA	392	424	660
SVC-20000VA	20000VA	392	424	805
SVC-30000VA	30000VA	392	424	805

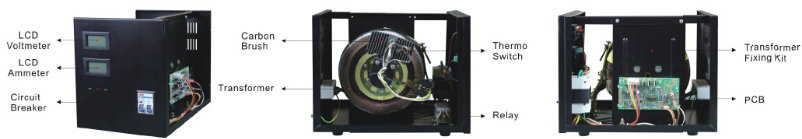

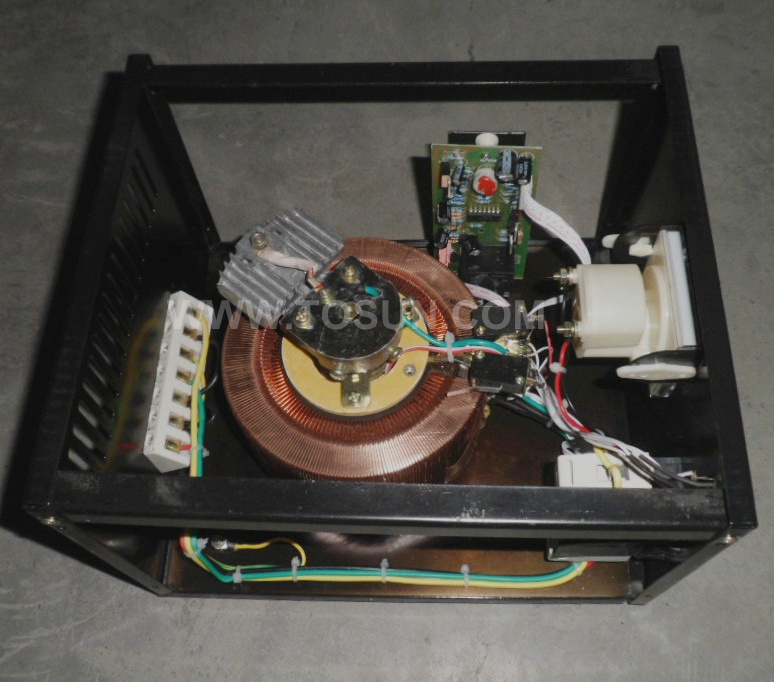

Internal Structure

Advantage

1. Shut trip protection
2. Thermo protection
3. Over voltage protection
4. Overload protection
5. Delay protection
6. Low voltage protection

Packing

Why Us?

1. Clients' benefit first.
2. Experinced in the line for more than 21 years.
3. Reasonable price and good source of raw material.
4. A group of professional inspectors monitor quality.
5. TUV, SEMKO, CE, CB, ROHS Approval for products.
6. Unique design for packing.
7. Experienced salesmen offer one-to-one service.
