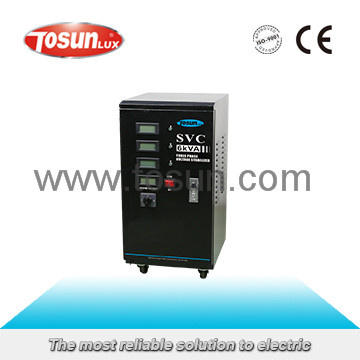

SVC Three Phase Automatic Voltage Stabilizer 6kVA

Prod Model:	SVC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	Three Phase 280-430V
Output Voltage:	Three Phase 280V±3%
Response Time:	<1sec.Against 10%Input Voltage Deviation
Efficiency:	>90%
Ambient Temperature:	-5°c~+40°c
Relative Humidity:	<95%
Waveform Distortion:	Non-Lack Fidelity in Waveform
Features:	Less Output Waveform Distortion

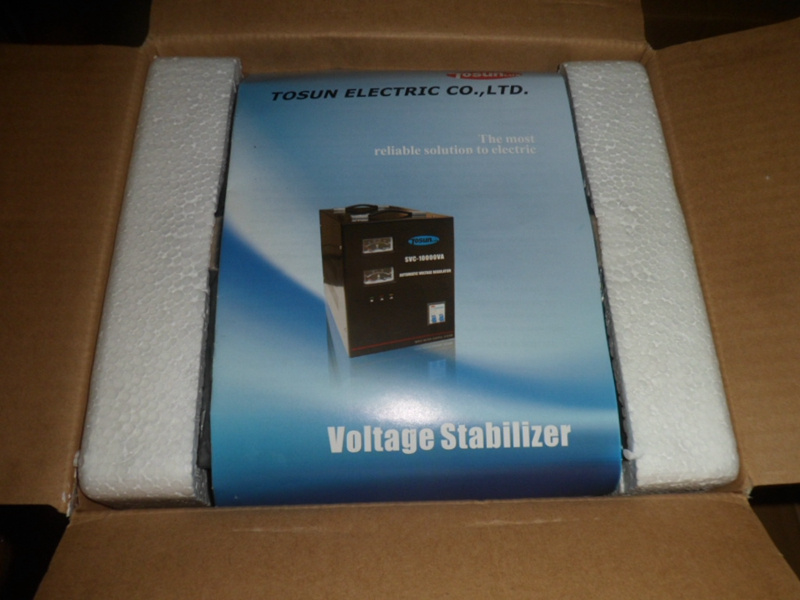

Package:	Beehive Carton
Current Type:	AC
Phase:	Three Phase
Usage:	SVC
Frequency:	50/60Hz
Application Range:	Electrical Appliances
Brand:	Tosunlux

Product Description

Application

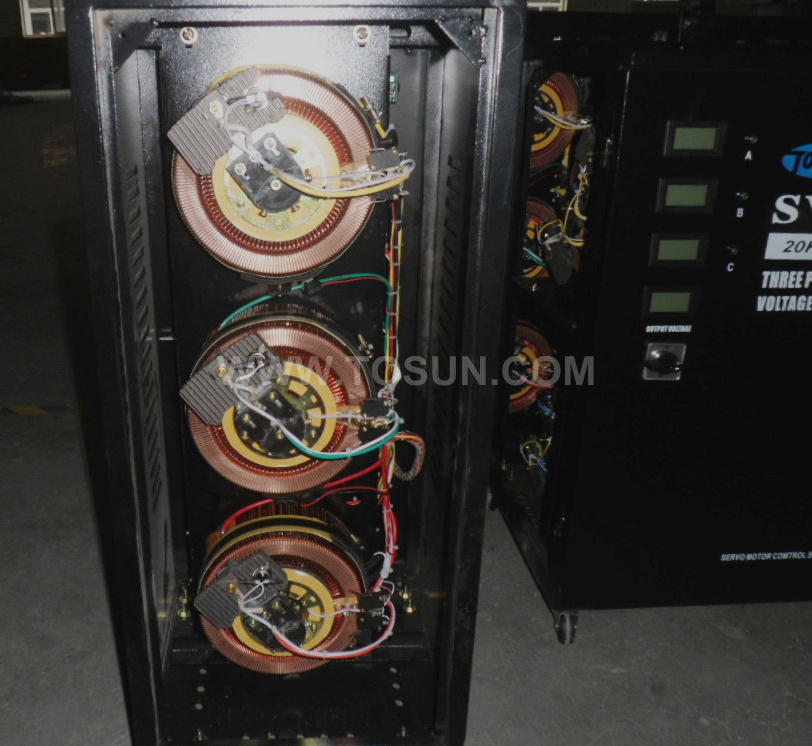

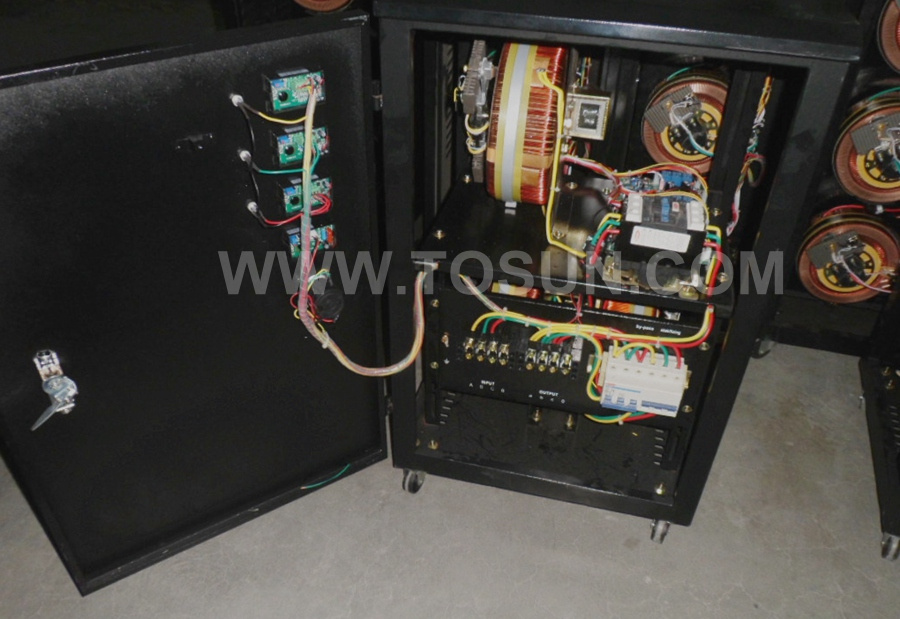

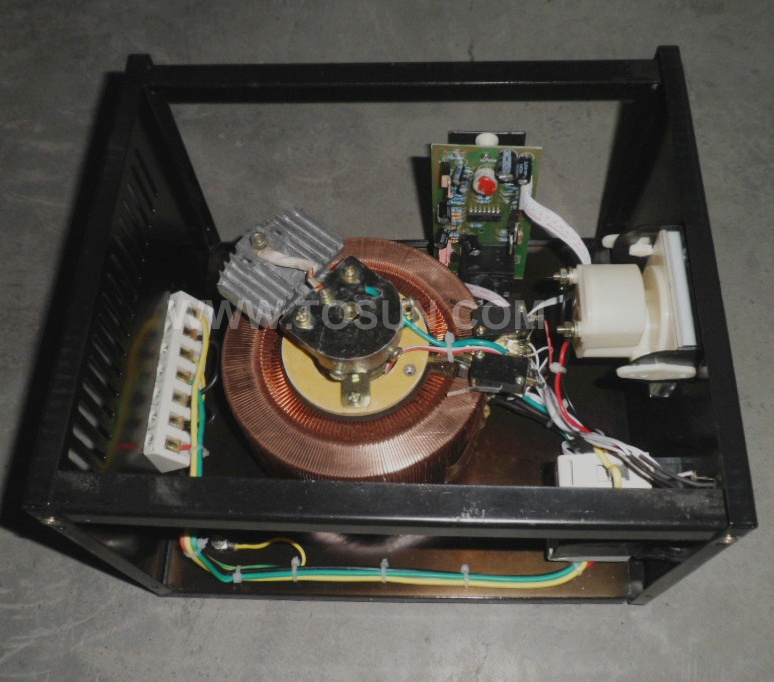

SVC fully automatic A.C voltage stabilizer consists of contact voltage regulator, sampling control circuit and servo motor. When input voltage or load changes, sampling control circuit will sample and amplify the voltage, and the servo motor will rotate in the desired direction, which turns the arm, adjusting voltage until the output voltage is regulated into the rated output voltage.
The product is of small size, light weight, less output waveform distortion and reliable performance. To guarantee its quality, foreign advanced technology and main parts are introduced and imported . It is widely used in electrical appliances which need constant. The product itself consumes little and can be continuously used for a long time.

Specification


Model(KVA)	1.5, 3, 4.5, 6, 9,15,20, 30, 50, 60,75, 90, 100
Input Voltage	three phase 280-430V
Output Voltage	three phase 280V±3%
Phase	Three Phase
Frequency	50/60Hz
Response Time	within 1 second against 10% input voltage deviation
Efficiency	better than 90%
Ambient Temperature	-5ºC~+40ºC
Relative Humidity	less than 95%
Waveform Distortion	non-lack fidelity in waveform
Insulation Resistance	more than 5MΩ



Model	Dimension
	L(mm)	W(mm)	H(mm)
SVC-3/4.5KVA	489	364	173
SVC-6KVA	290	358	692
SVC-9KVA	324	360	780
SVC-15KVA	358	392	863
SVC-20KVA	492	501	810
SVC-30KVA	492	501	810
SVC-50KVA	560	783	1185
SVC-60KVA	560	783	1185
SVC-100KVA	560	783	1285

Advantages :

Shut trip protection
Thermo protection
Over voltage protection
Overload protection
Delay protection
Low voltage protection
