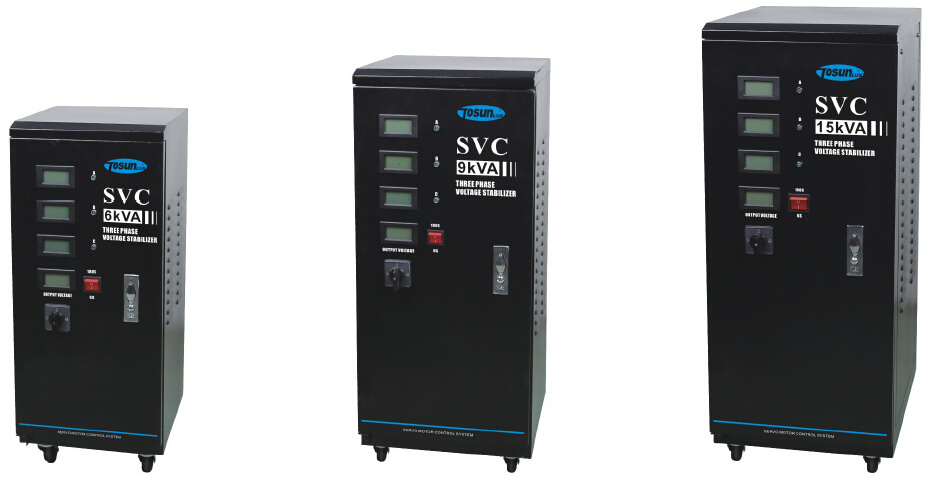

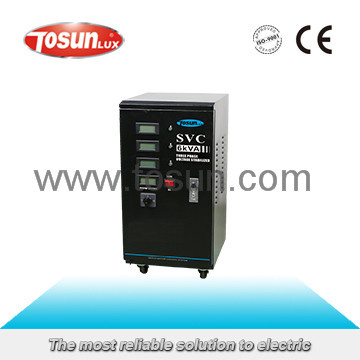

SVC Three Phase Voltage Stabilizer

Name: SVC Three Phase Voltage Stabilizer
Brand: all-electronics-online.com
SKU: 753298325
Availability: InStock
Rating: 4.7 (135 reviews)

Price:	US $ 179.82-183.48/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVC-6KVA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	3kVA-100kVA
Efficiency:	Better Than 90%
Current Type:	AC
Phase:	Three Phase
Usage:	SVC
Frequency:	Intermediate Frequency
Application Range:	Home, Schoo, Industry and So on
Brand:	Tosun

Product Description

Application

SVC Three Phase Automatic voltage stabilizer is the combination of SVC high function single phase automatic voltage stabilizer.
The incoming power network is three phases four wires system, the output power is also three phases four wires with three electric meters to indicate three phases separately, and a shift switch & voltage meter to shift and survey each phase.

Specification

Model (KVA)	1.5,3,4.5,6,9,15,20,30,50,60,75,90,100
Input Voltage	Three-phase 280-430V
Output Voltage	Three-phase 380±3%
Phase	Three-phase
Frequency	50/60Hz
Response Time	Within 1 sec.against 10% input voltage deviation
Efficiency	Better than 90&
Ambient Temperature	-5ºC-+40ºC
Relative Humidity	Less than 95%
Waveform Distortion	Non-lack fidelity in waveform
Insulation Resistance	More than 5MΩ

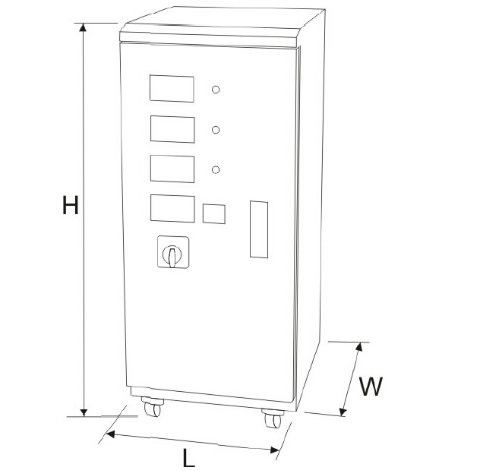

Dimension

Model	L(mm)	W(mm)	H(mm)
SVC-3/4.5KVA	489	364	173
SVC-6KVA	290	358	692
SVC-9KVA	324	360	780
SVC-15KVA	358	392	863
SVC-20KVA	492	501	810
SVC-30KVA	492	501	810
SVC-50KVA	560	783	1185
SVC-60KVA	560	783	11885
SVC-100KVA	560	783	1285

Applicaable Places

1. Computer
2. Test equipment
3. Lighting equipment
4. Alarm and security system
5. X-ray equipment
6. Communication system
7. Medical equipment
8. Photographic processing equipment
9. Numeric control machine tool
10. Industrial robot
11. Laboratory instrument
12. Hi-Fi equipment
