Switch Cabinet or Distribution UK Screw Cage Terminal Blocks

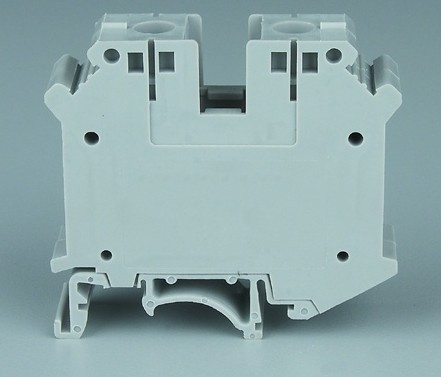

Name: Switch Cabinet or Distribution UK Screw Cage Terminal Blocks
Brand: all-electronics-online.com
SKU: 716411435
Availability: InStock
Rating: 5 (112 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Integrated IC
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle

Product Description

UK series Insulation Voltage: 600V. Proof voltage: 2500V IMIN. Resistibility: 100 M ohm
UK3N, UK5N, UK6N, UK10N, UK16N, UK35N,

1. UK35B Screw Terminal Block
2. Various Quality for Selection
3. Certificate: CE/ISO9001/RoHS
4. Competitive price

UK terminal block

Specification		Model
1Terminal Block		GUK 2.5B
2End Cover		D-GUK 2.5
3Fixed Bridge With Fixed Crimped Rolls	2-P	FBI 2-6
	3-P	FBI 3-6
	5-P	FBI 5-6
	10-P	FBI 10-6
4Step Bracket
5Insertion Bridge	2-P	EB 2-6
	3-P	EB 3-6
	10-P	EB 10-6
6Isolator Bridge Bar, 10P		ISSBI 10-6
7Bridge Bar Isolator		IS-K4
8Chain Bridge		USBR 2-7
9Separating Plate		TS-KK3
10Separating Plate,Width:1.5mm		ATP-GUK
11Test Plug Socket		PSB 3/10/4
12Test Plug Socket, Insulated		PSBJ 3/13/4
13Zack Strip		ZB6

Mechanical
Thickness/Width/Thickness of end cover		6.2/42.5/1.5mm
HeightNS 35:7.5 / NS 35:15 / NS 32		42/49.5/47mm
Rated Voltage/Rated Current		690V/32A
Rated Surge Voltage/Contamination Class		8KV/3
Wire Size		0.2-2.5mm²/24-12AWG
Stripping Length		7mm
Screw Thread/Tightening Torque		M3/0.6-0.8Nm
Intemal Cylindrical Gage		A3
Insulating Material/Inflammability Class		PA/V0

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
