Switching Diode Bav70 Dual Surface Mount of Electronic Component

Name: Switching Diode Bav70 Dual Surface Mount of Electronic Component
Brand: all-electronics-online.com
SKU: 799604745
Availability: InStock
Rating: 4.6 (105 reviews)

Price:	US $ 0.022/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BAV70
Family:	Diodes - Rectifiers - Arrays
Category:	Discrete Semiconductor Products
Packaging Type:	Tape & Reel (Tr)
Part Status:	Active
Diode Configuration:	1 Pair Common Cathode
Diode Type:	Standard

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

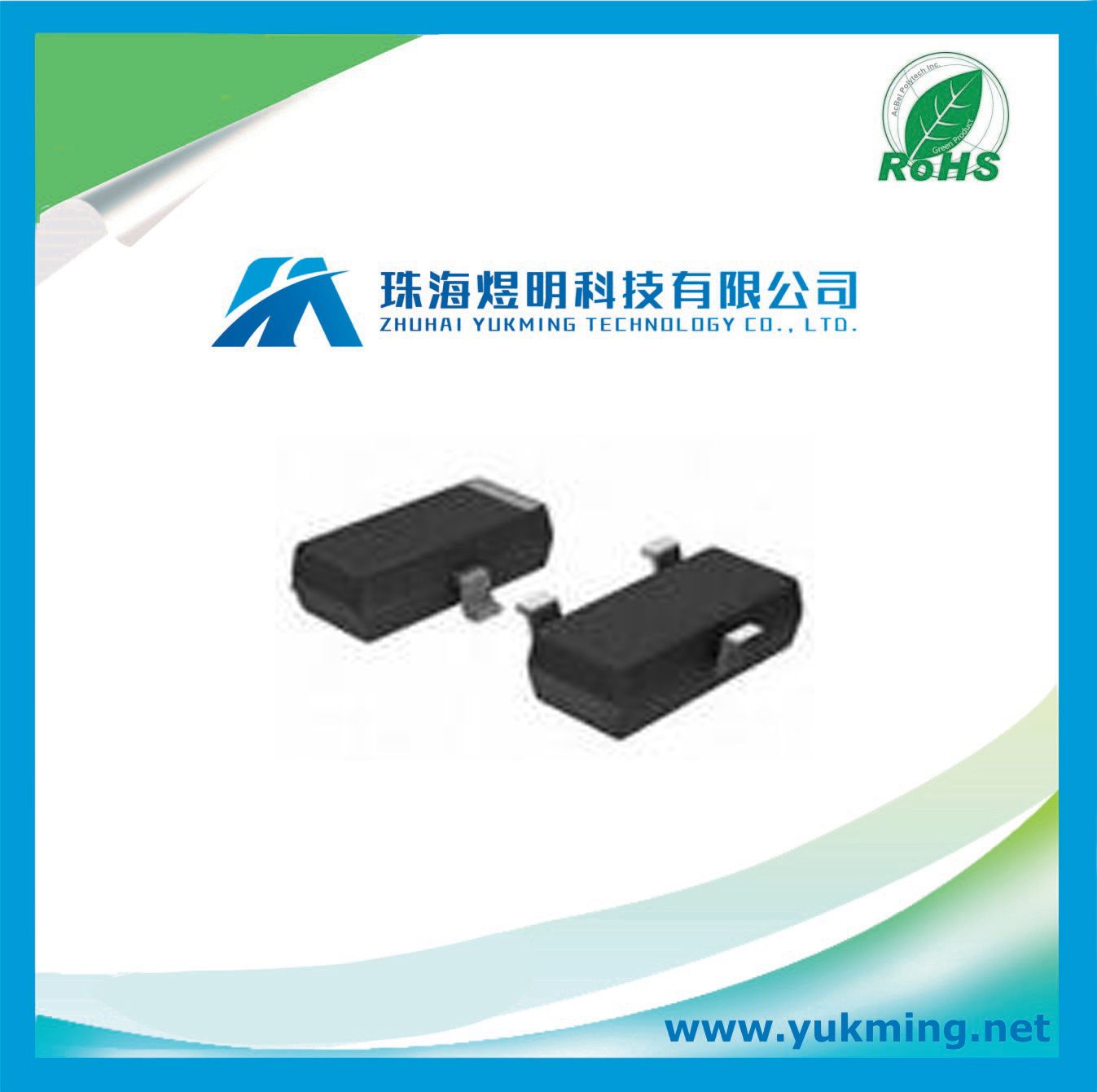

DUAL SURFACE MOUNT SWITCHING DIODE

Diode Array 1 Pair Common Cathode Standard 70V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3

Category Discrete Semiconductor Products
Family Diodes - Rectifiers - Arrays
Manufacturer Fairchild Semiconductor
Packaging Tape & Reel (TR)
Part Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 70V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 1.25V @ 150mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 6ns
Current - Reverse Leakage @ Vr 5µA @ 70V
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3 (TO-236)

FEATURES
FAST SWITCHING
SURFACE MOUNT PACKAGE IDEALLY SUITED
FOR AUTOMATIC INSERTION
HIGH CONDUCTANCE

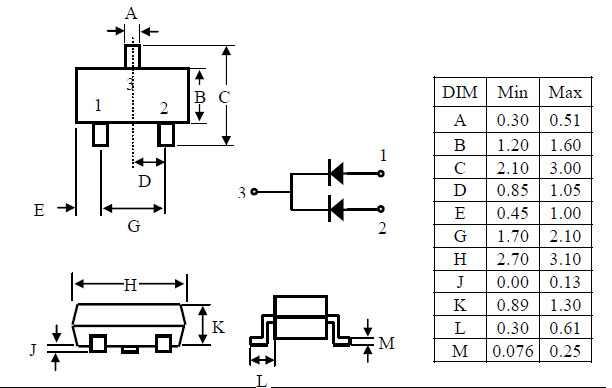

MECHANICAL DATA
CASE: SOT-23, PLASTIC, DIMENSIONS IN MILLIMETERS
TERMINALS: SOLDERABLE PER MIL-STD-202, METHOD 208
POLARITY: SEE DIAGRAM
WEIGHT: 0.008 GRAMS
