Switchmode Power Rectifier Diode Mur160rl of Electronic Component

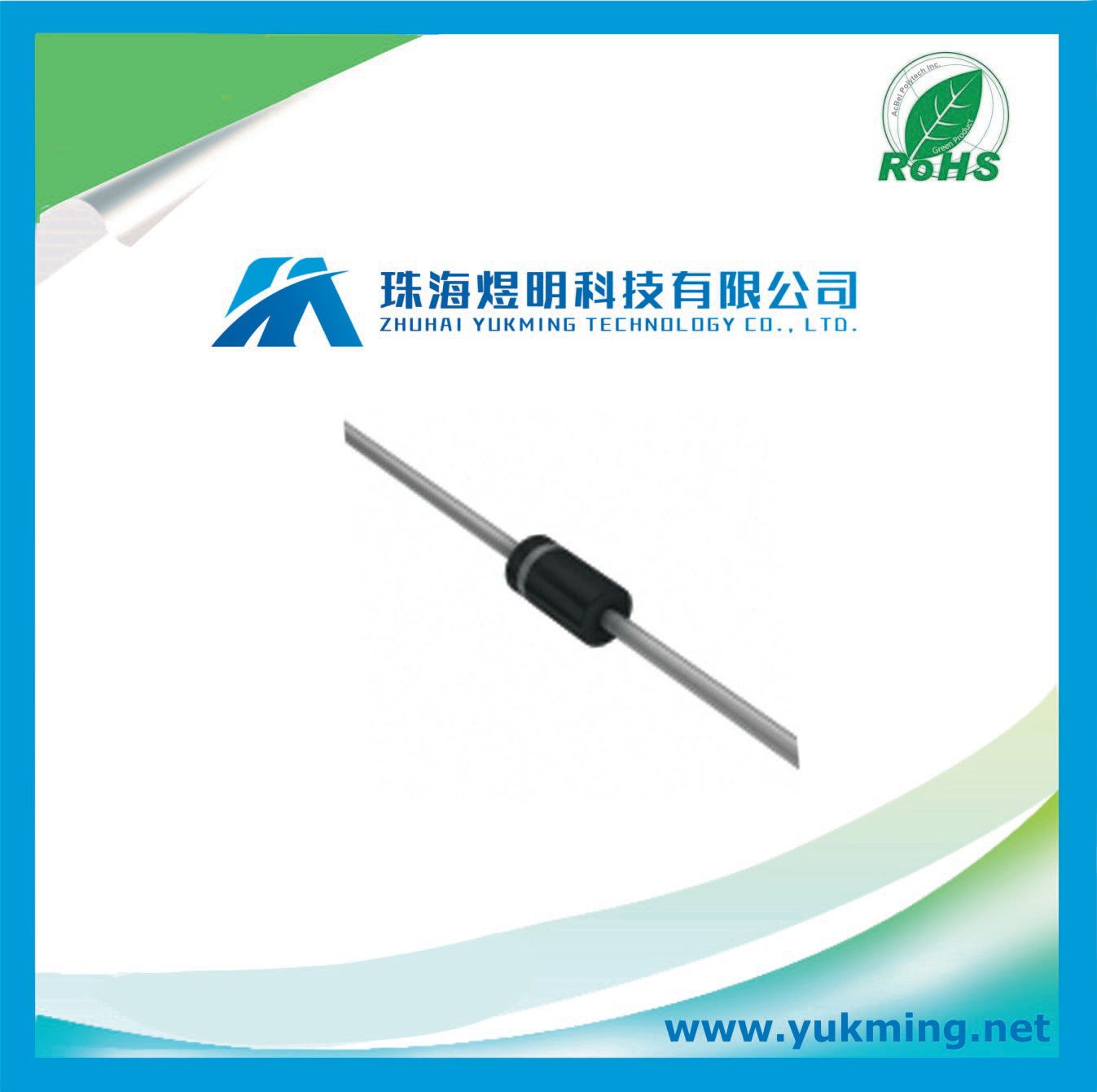

Name: Switchmode Power Rectifier Diode Mur160rl of Electronic Component
Brand: all-electronics-online.com
SKU: 796773775
Availability: InStock
Rating: 4.3 (92 reviews)

Price:	US $ 0.0255/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MUR160RL

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

The MUR120 series of SWITCHMODE power rectifiers are
designed for use in switching power supplies, inverters and as free
wheeling diodes.

Features
• Ultrafast 25, 50 and 75 Nanosecond Recovery Times
• 175°C Operating Junction Temperature
• Low Forward Voltage
• Low Leakage Current
• High Temperature Glass Passivated Junction
• Reverse Voltage to 600 V
• Pb−Free Packages are Available

Mechanical Characteristics
• Case: Epoxy, Molded
• Weight: 0.4 gram (approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
• Lead and Mounting Surface Temperature for Soldering Purposes:
220°C Max. for 10 Seconds, 1/16″ from case
• Shipped in plastic bags, 1000 per bag
• Available Tape and Reeled, 5000 per reel, by adding a "RL'' suffix to
the part number
• Polarity: Cathode Indicated by Polarity Band

Specifications
EU RoHS Compliant
Type Switching Diode
Configuration Single
Peak Reverse Repetitive Voltage (V) 600
Maximum Continuous Forward Current (A) 1@Ta=120C
Peak Non-Repetitive Surge Current (A) 35
Peak Forward Voltage (V) 1.25
Peak Reverse Current (uA) 5
Peak Reverse Recovery Time (ns) 75
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 175
Packaging Tape and Reel
Operating Junction Temperature (°C) -65 to 175

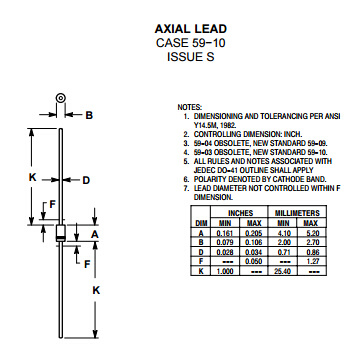

Package Diameter (mm) 2.7(Max)

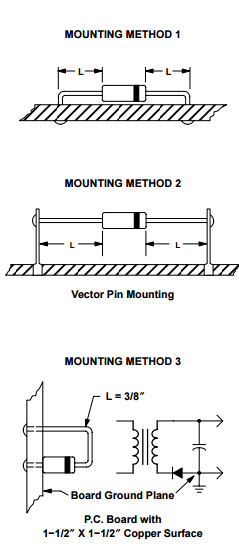

Mounting Through Hole
Package Length (mm) 5.2(Max)
PCB changed 2
Standard Package Name DO-204-AL
Supplier Package DO-41
Pin Count 2
Lead Shape Through Hole
