Sy Compression Copper Aluminum Bimetallic Lug Terminal Connector

Name: Sy Compression Copper Aluminum Bimetallic Lug Terminal Connector
Brand: all-electronics-online.com
SKU: 715682482
Availability: InStock
Rating: 4.3 (117 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SY
Surface:	Smooth
Finished:	Acid Cleaning
OEM:	Accept
Sample:	Free
Application:	Conduct Electricity
Type:	Crimp Terminal, Compression
Material:	Copper,Aluminum
Character:	High Conductivity

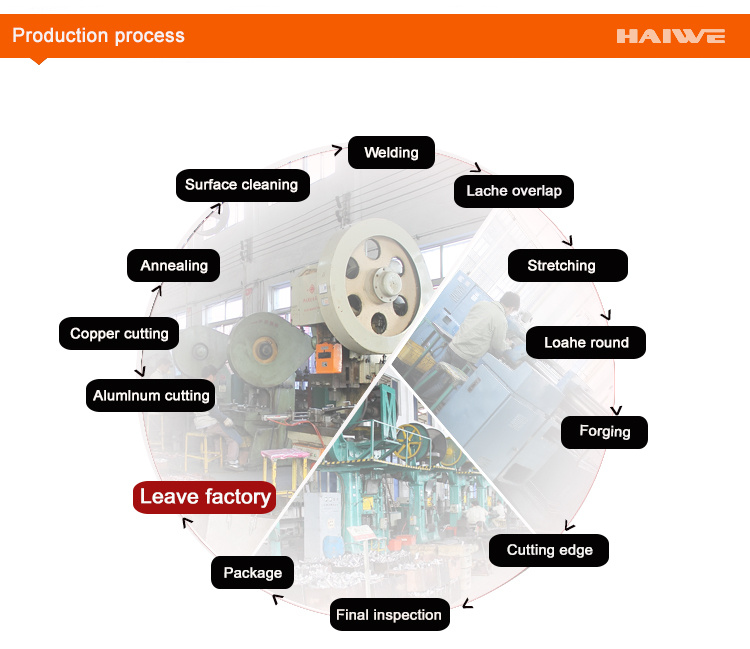

Production Process:	Punching
Shape:	Tubular
Interface Type:	Crimping
Certification:	SGS
Brand:	Haiwe

Product Description

SY compression copper aluminum bimetallic lug terminal connector

Product Description
1.Application
Compression terminal connector is suitable for outlet connecting of busbar down-conductor and electrical equipment(such as transformer,circuit breaker,isolating switch,wall bushing etc)

2.Material:
99.9% purity copper & 99.5% purity aluminum

3.Conductivity:
Copper 99.7% IACS Aluminum 61.2% IACS(1050)

4.Surface:
Smooth

5.Angle:
0⁰,45⁰,30⁰,90⁰

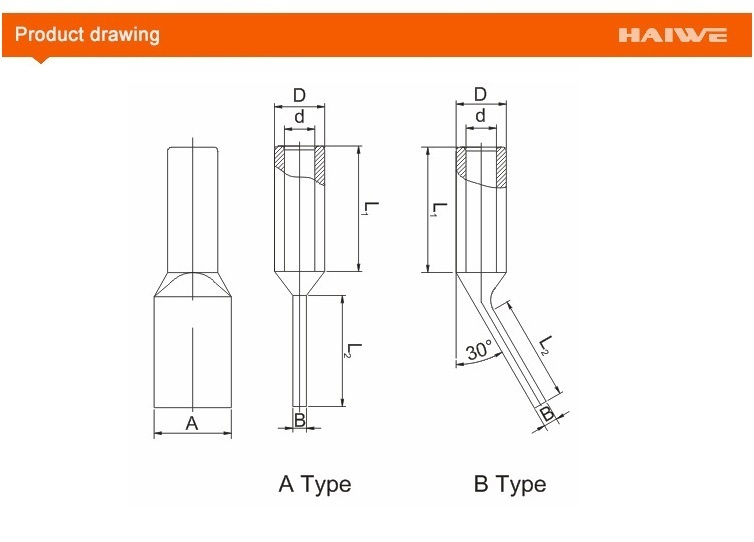

Type	Dimensions(mm)
Type	d	D	L1	L2	A	B
SY(T)-35	8.8	14	40	50	28	4.0
SY(T)-50	10	16	45	55	28	4.8
SY(T)-70	11.8	18	53	65	34	5.0
SY(T)-95	14.0	20	58	70	40	5.0
SY(T)-120	15.5	22	63	70	40	5.5
SY(T)-150	17.0	25	68	75	50	6.5
SY(T)-185	19.0	27	73	80	50	7..3
SY(T)-240	21.0	30	78	85	50	8.5
SY(T)-300	23.0	32	88	90	60	9.0
SY(T)-400	26.5	35	88	100	60	9.0
SY(T)-500	30.0	38	98	100	80	9.0
SY(T)-630	35.0	45	95	100	80	12.0
SY(T)-800	38.0	50	103	120	100	12.5

FAQ
1. How to buy your ideal products?
A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.

2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.

3. What is the delivery time?
A: It depends on order quantity.Generally, the delivery time will be within 15 to 30 days.

4. Package information
Not more than 35kg per carton box,about 1000kg per pallet

5.How long to make a sample?Is it free?
A:7 days depending on the sample's complexity.Normally,our sample is free

6.How to cantact us?
A:Send your inquiry details in the below,Click "send" now!

Our Services

Service
1.Thousands of products in stock and ready to ship.
2.The most competitive pricing
3.Free shipment container loading
4.Putting the customer's nees first,always
5.On call,24 hours a day,7 days a week

Haiwe electric Co., Ltd was established in 2007, is China's leading Manufacturer- Exporter of wide range of components used in power transmission and distribution lines & Equipment building industries, and We are pleased to introduce ourselves as a pioneer of power fitting, Distribution fitting, Overhead transmission line, Electrical Substation line Overhead insulation fitting etc. As per customers specifications and drawings.

The company's main customer base is made up of Distributors / Wholesalers of Electrical Products, Electrical Contractors & Installers, Equipment manufacturers, Maintenance companies and Government authorities. And has successfully exported our products to Southeast Asia, South America, MID East, Africa etc.

We aim to deliver products with "Zero" defects with very optimum prices, to assure this Haiwe has achieved.

As you browse through our website, we hope you will find what you are looking for. If not, just send us your inquiry or give us a call. If it is relevant to our line of work, we will be happy to provide a solution.
