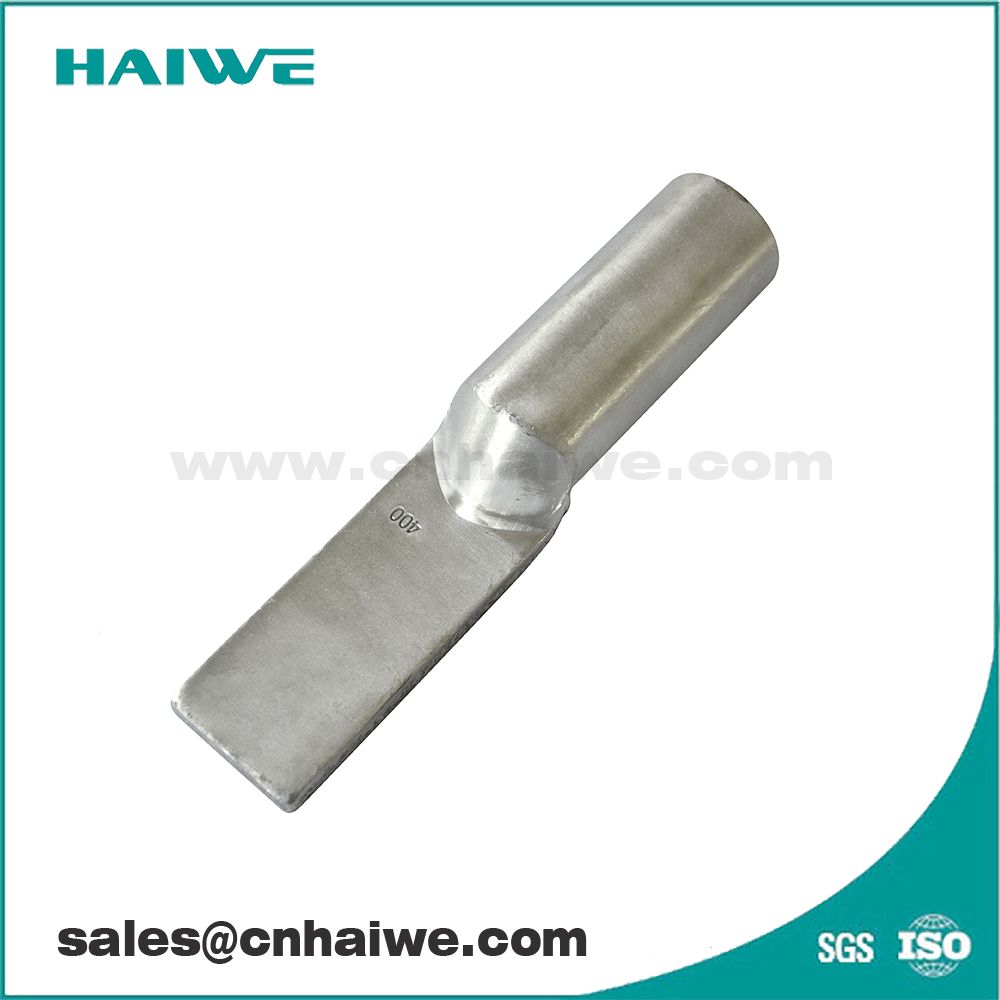

Syg Bimetallic Transition Terminal Connectors

Prod Model:	SYG
OEM:	Accept
Sample:	Free
Material:	Cast Aluminum
Application:	Power
Gender:	Terminal

Product Description

SYG Bimetallic Transition Terminal Connectors

Application:
Terminal connectors are used to connect tap conductor to power
equipments(transformer,circuitbreaker,disconnect
switch.etc)or to wall bushing of substation.It is suitable for connecting aluminum or copper cable to aluminum or
copper flat pad. And it is normally supplied with blank palm. 1 or 2 bolt drillings can be supplied to customers'
specifications,It have angle of 0°,30°.

Material:
Aluminum and copper.



Type	Suitable conductor	Dimensions(mm)
		d	D	L1	L2	A	B
SYG-35/6Q	LGJ-35/6	9.7	18	60	70	30	8
SYG-50/8Q	LGJ-50/8	11.0	18	60	70	30	8
SYG-70/10Q	LGJ-70/10	13.0	22	70	70	40	8
SYG-95/15~20Q	LGJ-95/15~20	15.5	26	80	90	40	8
SYG-120/7Q	LGJ-120/7	16.0	26	80	90	50	10
SYG-120/20~25Q	LGJ-120/20~25	17.2	26	80	90	50	10
SYG-150/8~20Q	LGJ-150/8~20	18.2	30	90	90	50	10
SYG-150/25~35Q	LGJ-150/25~35	19.0	30	90	90	50	10
SYG-185/10~30Q	LGJ-185/10~30	20.5	32	90	90	50	10
SYG-185/45Q	LGJ-185/45	21.5	32	90	90	50	10
SYG-240/30~40Q	LGJ-240/30~40	23.0	36	100	90	50	12
SYG-240/55Q	LGJ-240/55	24.0	36	100	90	50	12
SYG-300/15~20Q	LGJ-300/15~20	25.0	40	110	110	63	13
SYG-300/25~40Q	LGJ-300/25~40	25.5	40	110	110	63	13
SYG-300/50Q	LGJ-300/50	26.0	40	110	110	63	13
SYG-300/70Q	LGJ-300/70	27.0	42	110	110	63	13
SYG-400/20~25Q	LGJ-400/20~25	28.5	45	120	110	63	16
SYG-400/50Q	LGJ-400/50	29.5	45	120	110	63	16
SYG-400/65Q	LGJ-400/65	29.5	48	120	110	63	16
SYG-400/95Q	LGJ-400/95	31.0	48	120	110	63	16
SYG-500/35~45Q	LGJ-500/35~45	31.5	52	130	90	80	16
SYG-500/65Q	LGJ-500/65	32.5	52	130	90	80	16
SYG-630/45Q	LGJ-630/45	35.5	60	150	110	100	20
SYG-630/55~80Q	LGJ-630/55~80	36.5	60	150	110	100	20
SYG-800/55~100Q	LGJ-800/55~100	40.5	65	170	130	125	22
SYG-10/7~20Q-80	LGJ-10/7~20-80	17.2	26	80	90	80	9
SYG-150/8~20Q-80	LGJ-150/8~20-80	18.2	30	90	90	80	9
SYG-185/10~35Q-80	LGJ-185/10~35-80	20.5	32	90	90	80	10
SYG-240/30~40Q-80	LGJ-240/30~40-80	23.0	36	100	90	80	10
SYG-300/15~40Q-80	LGJ-300/15~40-80	25.5	40	110	90	80	12
SYG-400/20~65Q-80	LGJ-400/20~65-80	29.5	45	120	90	80	12
SYG-10/7~20Q-100	LGJ-10/7~20-100	17.2	26	80	110	100	8
SYG-150/8~20Q-100	LGJ-150/8~20-100	18.2	30	90	110	100	8
SYG-185/10~35Q-100	LGJ-185/10~35-100	20.5	32	90	115	100	10
SYG-240/30~40Q-100	LGJ-240/30~40-100	23.0	36	100	115	100	10
SYG-300/14~40Q-100	LGJ-300/14~40-100	25.5	40	110	115	100	12
SYG-400/20~65Q-100	LGJ-400/20~65-100	29.5	45	120	115	100	12
SYG-500/35~65Q-100	LGJ-500/35~65-100	32.5	52	130	115	100	14
