| Prod Model: |
SM-200H21D17C-EN3N |
| Rated Power: |
21kw |
| Rated Voltage: |
3 Phase 380V |
| Rated Torque: |
118nm |
| Rated Speed: |
1700rpm |
| Color: |
Black |
| Certificated: |
Ce ISO |
| Ke: |
171V/Krpm |
| Max Speed: |
2210rpm |
| Max Torque: |
354 |
| Place Of Origin: |
Ningbo |
| Number Of Stator: |
Single-Phase |
| Function: |
Control |
| Application: |
Engine |
| Casing Protection: |
IP54 |
| Starting Mode: |
Soft Start |
| Brand: |
Synmot |
Product Description

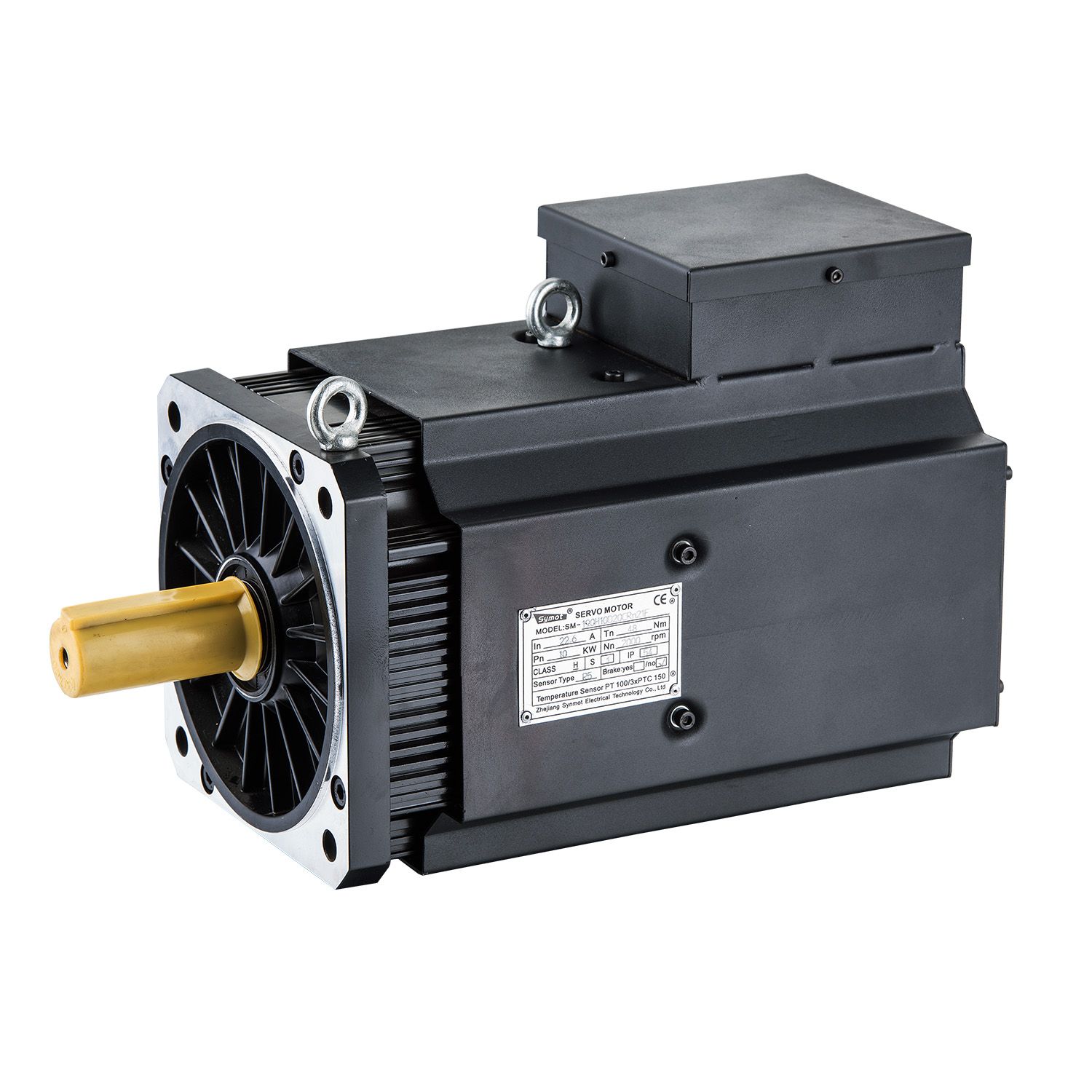

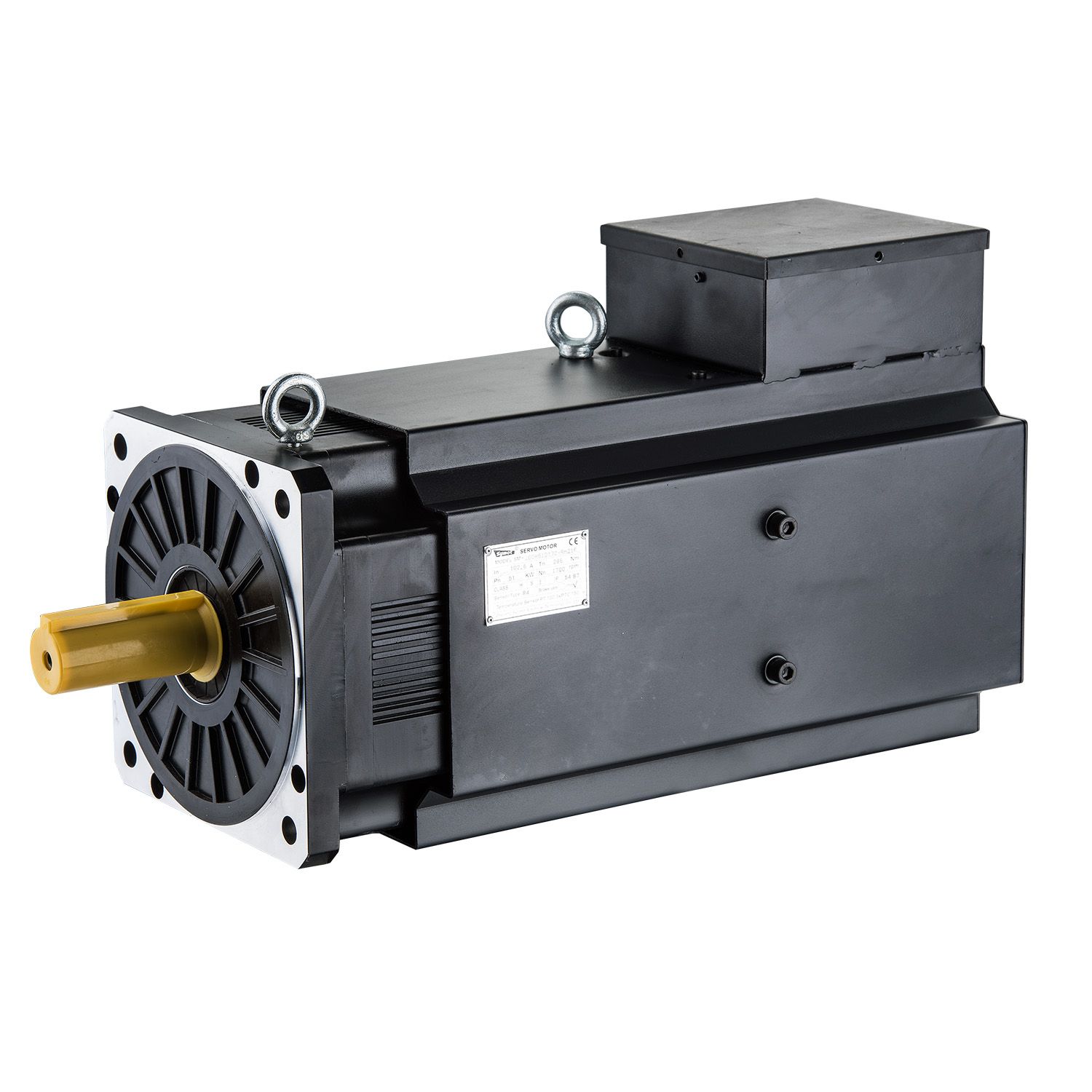

Synmot 21kw 118NM(SM-200H21D17C-EN31N) Dynamic Brushless Servo AC Motor for Injection moulding MachineProduct picture:
Technical Parameters:| Model | Rated torque | Rated voltage | Rated speed | Rated power | Rated current | Kt | Ke | Max speed | Max torque | Rotor intertia | Pole | Weight | Length |
| N.m | Vac | Rpm | Kw | Arms | Nm/A | V/Krpm | Rpm | N.M | Kg/cm2 | Pole | Kg | Mm |
| 200H75C15C | 50 | 380 | 1500 | 7.5 | 18 | 3.1 | 192 | 2000 | 150 | 54 | 10 | 18 | 342 |
| 200H90C17C | 50 | 380 | 1700 | 9 | 21 | 2.7 | 165 | 2210 | 150 | 54 | 10 | 18 | 342 |
| 200H11D20C | 50 | 380 | 2000 | 11 | 24 | 2.3 | 144 | 2500 | 150 | 54 | 10 | 18 | 342 |
| 200H11D15C | 70 | 380 | 1500 | 11 | 24 | 3.2 | 195 | 2000 | 210 | 81 | 10 | 30 | 379 |
| 200H13D17C | 70 | 380 | 1700 | 13 | 27 | 2.8 | 175 | 2210 | 210 | 81 | 10 | 30 | 379 |
| 200H15D20C | 70 | 380 | 2000 | 15 | 33 | 2.3 | 144 | 2500 | 210 | 81 | 10 | 30 | 379 |
| 200H15D15C | 96 | 380 | 1500 | 15 | 34 | 3.1 | 192 | 2000 | 288 | 108 | 10 | 37 | 416 |
| 200H17D17C | 96 | 380 | 1700 | 17 | 37 | 2.9 | 178 | 2210 | 288 | 108 | 10 | 37 | 416 |
| 200H20D20C | 96 | 380 | 2000 | 20 | 43 | 2.4 | 151 | 2500 | 288 | 108 | 10 | 37 | 416 |
| 200H18D15C | 118 | 380 | 1500 | 18 | 41 | 3.2 | 197 | 2000 | 354 | 134 | 10 | 48 | 453 |
| 200H21D17C | 118 | 380 | 1700 | 21 | 47 | 2.8 | 171 | 2210 | 354 | 134 | 10 | 48 | 453 |
| 200H25D20C | 118 | 380 | 2000 | 25 | 55 | 2.4 | 146 | 2500 | 354 | 134 | 10 | 48 | 453 |
| 200H22D15C | 140 | 380 | 1500 | 22 | 49 | 3.2 | 195 | 2000 | 420 | 160 | 10 | 57 | 490 |
| 200H25D17C | 140 | 380 | 1700 | 25 | 54 | 2.8 | 175 | 2210 | 420 | 160 | 10 | 57 | 490 |
| 200H29D20C | 140 | 380 | 2000 | 29 | 61 | 2.5 | 154 | 2500 | 420 | 160 | 10 | 57 | 490 |
| 200H25D15C | 157 | 380 | 1500 | 25 | 54 | 3.2 | 195 | 2000 | 471 | 160 | 10 | 57 | 490 |
| 200H28D17C | 157 | 380 | 1700 | 28 | 59 | 2.8 | 175 | 2210 | 471 | 160 | 10 | 57 | 490 |
| 200H33D20C | 157 | 380 | 2000 | 33 | 68 | 3.2 | 154 | 2500 | 471 | 160 | 10 | 57 | 490 |

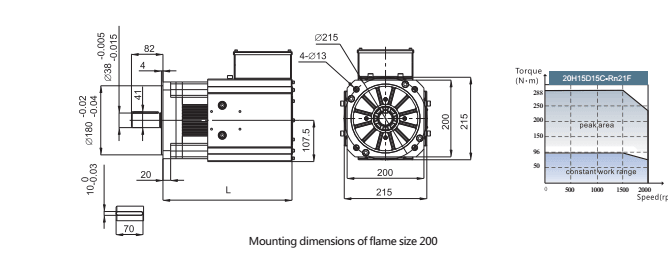

Mounting dimensions :
Synmot servo motor is permanent magnet AC motor ,main advantages:
A.Ultra energy-saving,high respomse and accuracy,low noise and low temperature rise .
B.The rotor is made of high-performance rare-earth permanent magnet material ,works reliably and to maintain less.
C.With low rotary inertia so that it is easy to improve the rapidity of system,small volume,high speed and high torque.
D.Global optimization using 2D and 3D inite element analysis ,with low cogging ,low torque-ripple and low noise and vibration .
C.Power range is from 0.4KW to 100KW ,with the motor rated speed from 350RPM to 20000RPM.
E.High acceleration and quick dynamic response ,adopting high precision optical encoder (17bit,33bit) to improve the position control accuracy.it controls the current according to D-P principal axis transformation ,which in crease the torque control accuracy from 5% to 2%.Autoritative certification:
Transportation information:
FAQ:1.Q:Can I get some samples?
A:We are hornered to offer you samples for quality check .
2.Q:Do you have the products in stock ?
A:All standard models we got in stock,Special products are manufactured according to your order.
3.Q:When do you delievery ?
A:It usually take 3-7 working days ,but the exactly time vary from different order at different time .
4.Q :Are the motors with brake?
A:The starndard without,but you can choose to install it or not,so the other size may be different,like length,weight and so on .
5Q:How long can it work ?
A:Properly use can work for 3years.
6.Q:Can the motors work in the water?
A:No,our motors can not work in the water ,but they can Prevent the splash water into the inner.
7.Q:How do you garrantee your motors?
A:quality comes first,all the motor must pass the testing and than packaged to delievery.
8.Warranty Period?
A:18 months after the days when the product leave our factory.
9:payment peroid ?
A:In general ,30% by T/T of the amount as Deposit ,70% by T/T of the amount need be paid within one week after the day when you receive the copy of the B/L by email or Consultations .About company:
Zhejiang Synmot Electrical Technology Co., Ltd. (Synmot) is a subsidiary of China Chenglu Group, with a total planned investment of 80 million USD. Synmot covers an area of 200mu and the total construction area is 180000 square meters, now is striving to build a Synmot servo industry zone. Synmot is dedicated to research and application of energy saving technology in machinery, is a professional manufacturer of servo motors, servo drives and servo systems. The rated power of Synmot servo motors is 0.2kw-160kw while the rated torque is 1 N.m-2500 Nm and the rated speed is 350 rpm-20000 rpm. The rated of Synmot drives is 0.4 kw-160 kw, which can satisfy the requirement of precise motion control in different industries. Synmot energy-saving systems have been widely used in 50 ton-3000 ton injection molding machinery, die casting machinery,hydraulic machinery, textile machinery, elevators,CNC machine tools, printing and packing, metallurgy and mines etc.Synmot has a famous electrical professor as the chief engineer.The technical team is composed of Ph.D, masters, senior engineers with strong ability of innovation and engineering. It has more than 30 design patents, and has established cooperation with Zhejiang University in production, design and research. Synmot has laboratories for motors,motor drives, EMC and energy-saving technologies, and can develop the specially specified servo system for automatic equipments, CNC machines and inspection devices.
Synmot uses computerized management systems such as ERP, OA, PLM etc. The enterprise culture is being positive, cooperative and pursuing excellence, takes technology as a guide, pays great attention to the product quality, so as to provide more environment-friendly, more precise and more stable products; to provide the professional solutions in electrical servo drive system.
Our Faith:
Respect Every Customer, Maximize customer's Profit
Our Service Philosophy:
Quality best , Credit first, and Customer first
Our Services:
With more than ten years of experience, Synmot's knowledge in bringing innovative service solutions to transformation of end-users, agent and machinery manufacturer has united to form our services.
With a focus on innovative services in servo field as well as supply training support, Synmot will deliver agile, cost-competitive solutions, to customers can reduce costs, drive efficiency
We're here, around the clock, around the world, and always ready.
Why choose Synmot ?
01.Comprehensive strength :
Synmot is one of the leading manufacturers of servo system in china .
02.Technical Strength:
The technology team has rich experience in hydraulic machinery and electric automatization,and is proficient in oil circuit system,electric system and upper control system,can carry out R&Daccording to clients special needs.
03:customer service:
A.Provide over-valued services including installation ,debugging,maintenance and trouble shooting.
B.Assist agent to expend business and provide"one-stop" service ,estabilish a strategic cooperative partnershp with agents,grow and create brilliant performances together .
C.Supply cost-efficient ptoducts ,provide excellent after-sales service .
Major client:
Sincerely welcome all friends to come to visit us, negotiate business, and seek common development.
Agents wanted Urgent
Any help ,pls contact me :
Mr Harry 86-188 6868 3336/180 5741 0063
Synmot is dedicated to research and application of energy saving technology in machinery, is a professional manufacture of servo motors, drives and servo system. The rated power of SM series drive is 0.4kw-100kw, which can satisfy the requirment of precise motion control in different industries, SM series energy -saving systems have been widely uesed in 50-3000ton injection molding machine, die casting machine, hydraulic machine, textile, elevator, lifting, CNC machine tool, printing and packing, metallurgy and mines etc
Synmot has national electrical professor as the chief engineer, the rechnical tea, is composed of pH, D masters, senior engineers with strong ability of innovation and engineering. It has more then 30 design patents and has established cooperation with Zhejiang University in production, design and research. Synmot has laboratories for motors, motor drives and energy saving technologies, and can develop the specially customized servo system of automatic equipment, CNC mahchines ans inspection devices.
Synmot uses computerized management systems such as ERP, OA, PLM etc, the enterprise culture is being positive and cooperative and pursuing excellence takes reaeach as guide, pays great attention to the product quality, so as to provide more environment-friendly, more precise and more stable products to provide the professional solutions in electrcal servo srivesystem
