| Prod Model: |
AC Permanent Magnet Synchronous servo Motor |
| Rated Power: |
0.4kw-100kw |
| Rated Voltage: |
3 Phase 220V--3 Phase 380V |
| Rated Torque: |
1.5-2500nm |
| Rated Speed: |
350rpm-20000rpm |
| Color: |
Black |
| Certificated: |
Ce ISO |
| Ke: |
32V/Krpm-192V/Krpm |
| Max Speed: |
20000rpm |
| Max Torque: |
2500 |
| Place Of Origin: |
Ningbo |
| Number Of Stator: |
Single-Phase |
| Function: |
Control |
| Application: |
Engine |
| Casing Protection: |
IP54 |
| Starting Mode: |
Soft Start |
| Brand: |
Synmot |
Product Description

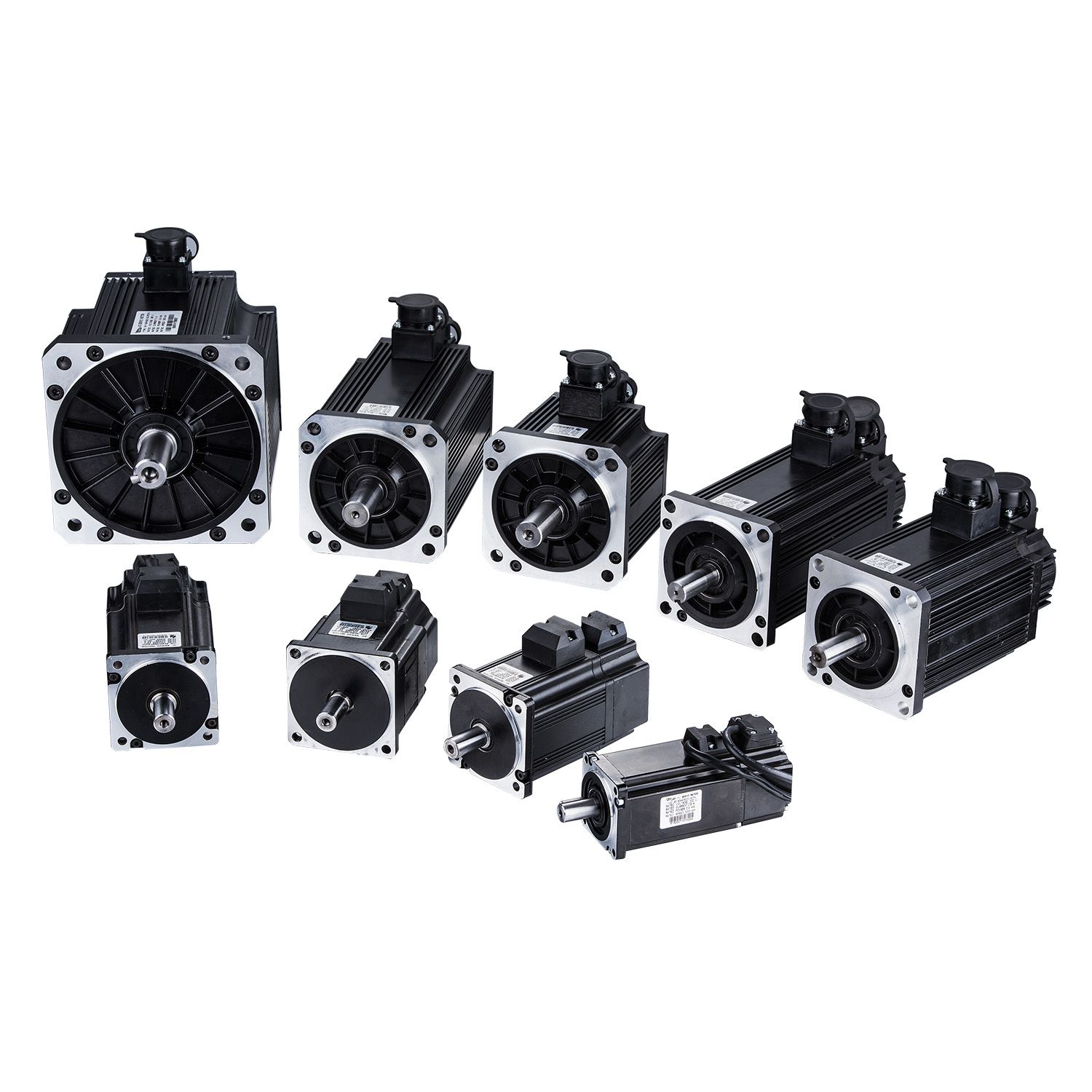

Synmot AC Permanent Magnet Synchronous servo MotorProduct picture:
Technical Parameters:| Model | Rated torque | Rated voltage | Rated speed | Rated power | Rated current | Kt | Ke | Max speed | Max torque | Rotor intertia | Pole | Weight | Length |
| N.m | Vac | Rpm | Kw | Arms | Nm/A | V/Krpm | Rpm | N.M | Kg/cm2 | Pole | Kg | Mm |
| 260H27D15C | 169 | 380 | 1500 | 27 | 58 | 3.1 | 192 | 2000 | 507 | 387 | 8 | 114 | 464 |
| 260H30D17C | 169 | 380 | 1700 | 30 | 64 | 2.7 | 175 | 2300 | 507 | 387 | 8 | 114 | 464 |
| 260H36D20C | 169 | 380 | 2000 | 36 | 75 | 2.3 | 149 | 2500 | 507 | 387 | 8 | 114 | 464 |
| 260H30D15C | 191 | 380 | 1500 | 30 | 64 | 3.2 | 197 | 2000 | 573 | 434 | 8 | 119 | 484 |
| 260H34D17C | 191 | 380 | 1700 | 34 | 71 | 2.8 | 177 | 2300 | 573 | 434 | 8 | 119 | 484 |
| 260H40D20C | 191 | 380 | 2000 | 40 | 86 | 2.3 | 148 | 2500 | 573 | 434 | 8 | 119 | 484 |
| 260H33D15C | 208 | 380 | 1500 | 33 | 70 | 3.2 | 198 | 2000 | 624 | 482 | 8 | 124 | 504 |
| 260H37D17C | 208 | 380 | 1700 | 37 | 79 | 2.8 | 176 | 2300 | 624 | 482 | 8 | 124 | 504 |
| 260H44D20C | 208 | 380 | 2000 | 44 | 90 | 2.3 | 154 | 2500 | 624 | 482 | 8 | 124 | 504 |
| 260H37D15C | 236 | 380 | 1500 | 37 | 79 | 3.1 | 198 | 2000 | 708 | 542 | 8 | 130 | 529 |
| 260H42D17C | 236 | 380 | 1700 | 42 | 90 | 2.9 | 173 | 2300 | 708 | 542 | 8 | 130 | 529 |
| 260H50D20C | 236 | 380 | 2000 | 50 | 106 | 2.4 | 149 | 2500 | 708 | 542 | 8 | 130 | 529 |
| 260H42D15C | 264 | 380 | 1500 | 42 | 91 | 3.2 | 193 | 2000 | 792 | 601 | 8 | 136 | 554 |
| 260H47D17C | 264 | 380 | 1700 | 47 | 98 | 2.8 | 179 | 2300 | 792 | 601 | 8 | 136 | 554 |
| 260H56D20C | 264 | 380 | 2000 | 56 | 116 | 2.4 | 152 | 2500 | 792 | 601 | 8 | 136 | 554 |
| 260H45D15C | 287 | 380 | 1500 | 45 | 97 | 3.8 | 193 | 2000 | 861 | 601 | 8 | 136 | 554 |
| 260H51D17C | 287 | 380 | 1700 | 51 | 114 | 2.8 | 165 | 2300 | 861 | 601 | 8 | 136 | 554 |
| 260H60D20C | 287 | 380 | 2000 | 60 | 124 | 2.5 | 152 | 2500 | 861 | 601 | 8 | 136 | 554 |
| 260H50D15C | 315 | 380 | 1500 | 50 | 106 | 3.2 | 194 | 2000 | 945 | 649 | 8 | 141 | 574 |
| 260H56D17C | 315 | 380 | 1700 | 56 | 126 | 2.8 | 164 | 2300 | 945 | 649 | 8 | 141 | 574 |
| 260H66D20C | 315 | 380 | 2000 | 66 | 139 | 3.2 | 149 | 2500 | 945 | 649 | 8 | 141 | 574 |
| 260H55D15C | 350 | 380 | 1500 | 55 | 122 | 3.2 | 188 | 2000 | 1050 | 745 | 8 | 151 | 614 |
| 260H62D17C | 350 | 380 | 1700 | 62 | 134 | 2.8 | 171 | 2300 | 1050 | 745 | 8 | 151 | 614 |
| 260H73D20C | 350 | 380 | 2000 | 73 | 149 | 3.2 | 154 | 2500 | 1050 | 745 | 8 | 151 | 614 |

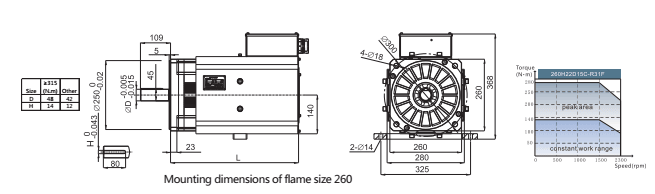

Mounting dimensions :
Synmot servo motor is permanent magnet AC motor ,main advantages:
A.Ultra energy-saving,high respomse and accuracy,low noise and low temperature rise .
B.The rotor is made of high-performance rare-earth permanent magnet material ,works reliably and to maintain less.
C.With low rotary inertia so that it is easy to improve the rapidity of system,small volume,high speed and high torque.
D.Global optimization using 2D and 3D inite element analysis ,with low cogging ,low torque-ripple and low noise and vibration .
C.Power range is from 0.4KW to 100KW ,with the motor rated speed from 350RPM to 20000RPM.
E.High acceleration and quick dynamic response ,adopting high precision optical encoder (17bit,33bit) to improve the position control accuracy.it controls the current according to D-P principal axis transformation ,which in crease the torque control accuracy from 5% to 2%.Autoritative certification:
Transportation information:
FAQ:1.Q:Can I get some samples?
A:We are hornered to offer you samples for quality check .
2.Q:Do you have the products in stock ?
A:All standard models we got in stock,Special products are manufactured according to your order.
3.Q:When do you delievery ?
A:It usually take 3-7 working days ,but the exactly time vary from different order at different time .
4.Q :Are the motors with brake?
A:The starndard without,but you can choose to install it or not,so the other size may be different,like length,weight and so on .
5Q:How long can it work ?
A:Properly use can work for 3years.
6.Q:Can the motors work in the water?
A:No,our motors can not work in the water ,but they can Prevent the splash water into the inner.
7.Q:How do you garrantee your motors?
A:quality comes first,all the motor must pass the testing and than packaged to delievery.
8.Warranty Period?
A:18 months after the days when the product leave our factory.
9:payment peroid ?

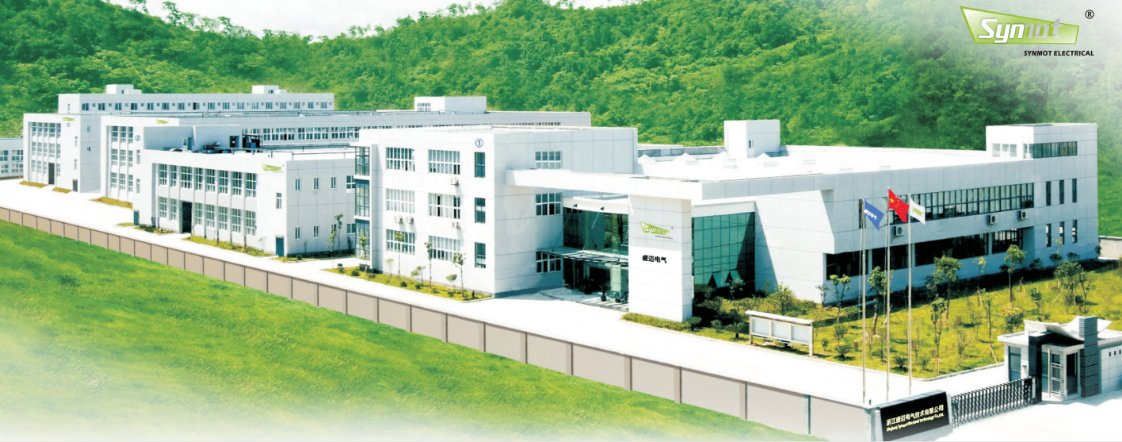

A:In general ,30% by T/T of the amount as Deposit ,70% by T/T of the amount need be paid within one week after the day when you receive the copy of the B/L by email or Consultations .About company:
