Sywv 75-7 1.02mm CCS CATV Cable

Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Model:	Sywv-75-5
Brand:	Jiuxin

Product Description

       OEM STANDARD SYWV-75-7 COAXIAL CABLE FOR SELLING

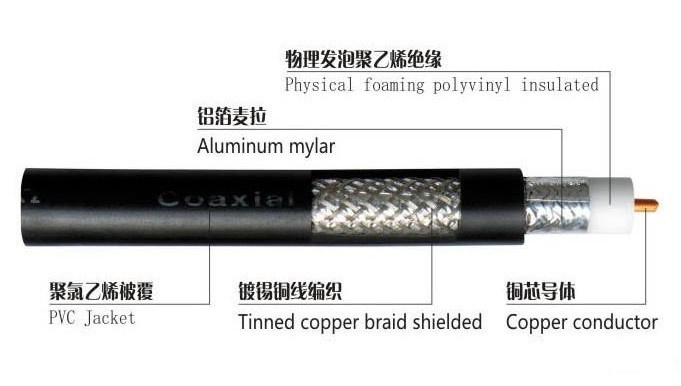

There is a simple introduction about RG6(some details)
1)Center conductor:BC,CCA,CCS,CCC
2)Insulation:Foam PE/Solid PE
3)Al-foil:Non-bonded Al-foil,bonded Al-foil,double bonded Al-foil
4)Braiding:40%-97% coverage Al-Mg,BC,CCC,CCA,CCS
5)Braiding wire diameter:0.10,0.11,.0.12,0.13,0.14,0.15,0.16mm
6)Braiding net:32,48,64,72,80,96,120,128,144 and more
7)Jacket:PVC,PE
Characteristics
1)Sparker Test:4000VAC
2)Impedance:75+3 Ohm
3)Capacitance:54+3pF/m
4)Velocity of Propagation:82%(min)
5)Return Loss:20dB min(5-2300MHz)

Features
 1. Fast and Reliable Connection
2. Durable and Reasonable Design of the Structure Realizes the High Performance
3. Wide Frequency Range
4. Fine Shields Protect the Data Transmission and Reduce the Interference
5. New Design of the Jacket Shows the Sense of Technology and Smartness
6. Jacket Color in Lucidity, Lucidity Blue , Black,White or as per Your Requirement

Applications
 1. Computer Network Systems
2. CCTV Monitoring Systems
3. Video and Signal Transmission System

Packing details:
 1. Packing Lengths: 100m/roll, 200m/roll, 300m/roll, 500m/roll.
2. Inner packing: Wooden reel, plastic reel, and paper reel.
3. Outer packing: Carton box, pull out box, pallet available.
4. Other packing available according to client's request.

Question & Answer
 1. What is your MOQ?
Generally, we make mass production based on MOQ 500pcs, single blister packing, since our sub-supplier ask
for 500pcs MOQ for blister. So if bulk package is ok for you, we can accpet lower order quantity.

2. How about your delivery date?
Normally our delivery date is about 25-30days after payment received.

3. Can you supply sample for customer
We can supply sample for customer's quality checking before placing new order to us, the delivery
cost will be charged on customer's account.

4. How about your price?
We will do our best to offer a good price for our customers, usually our price is worked out according
to the current exchange rate, probable order quantity, most important is your sincerity on cooperation!

About US

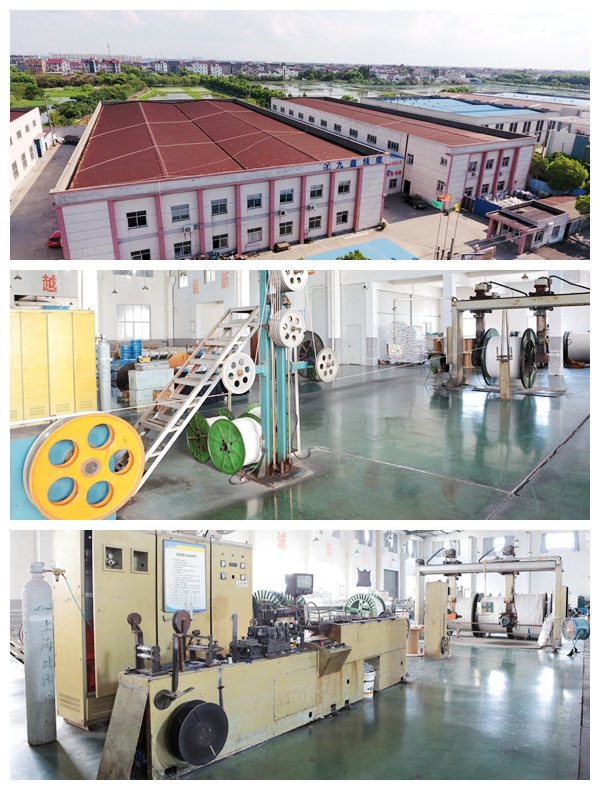

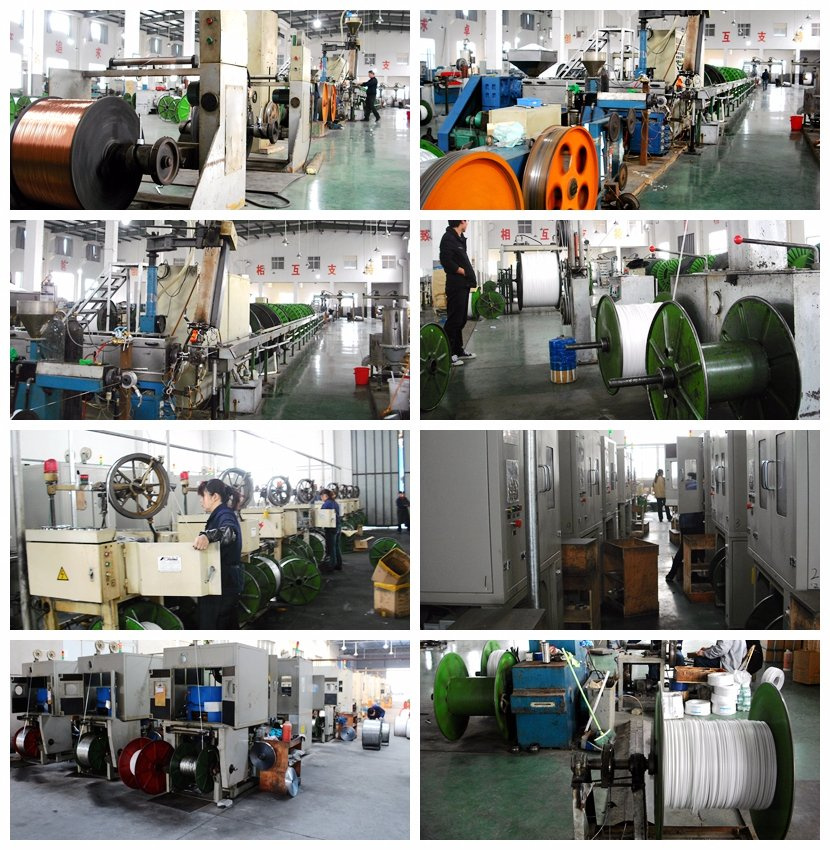

Suzhou Jiuxin Cable Co. Ltd was founded in 2003. is a professional manufacture of coaxial cable. located in Qidu town ,Wujiang District of Suzhou City. Company occupies the workshop area 3000 square meters, and employs 200 people.
The company mainly produces CATV television cable (coaxial cable) SYWV75-5 series, SYWV (Y) 75-7 series, SYWV (Y) 75-9 series, SYWV (Y)75-12 series, SYWLY75-9/12 aluminum pipe cable series, RG6 series and RG11 series and so on. Inspection by professional organizations, the company's products meet national standards, and we have got  SARFT registration certificate and ISO quality system certification.
