| Prod Model: |
SYWV(Y)-75-5 |
| Color: |
White, Black or Customized |
| Braid Material: |
Al-Mg, CCA, Bc, Tc |
| Dielectric: |
4.57mm Fpe |
| Performance: |
Test to 3GHz |
| Application: |
Audio/Video/TV/CATV |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
RoHS |
| Model: |
Coaxial |
| Brand: |
Jiuxin |
Product Description

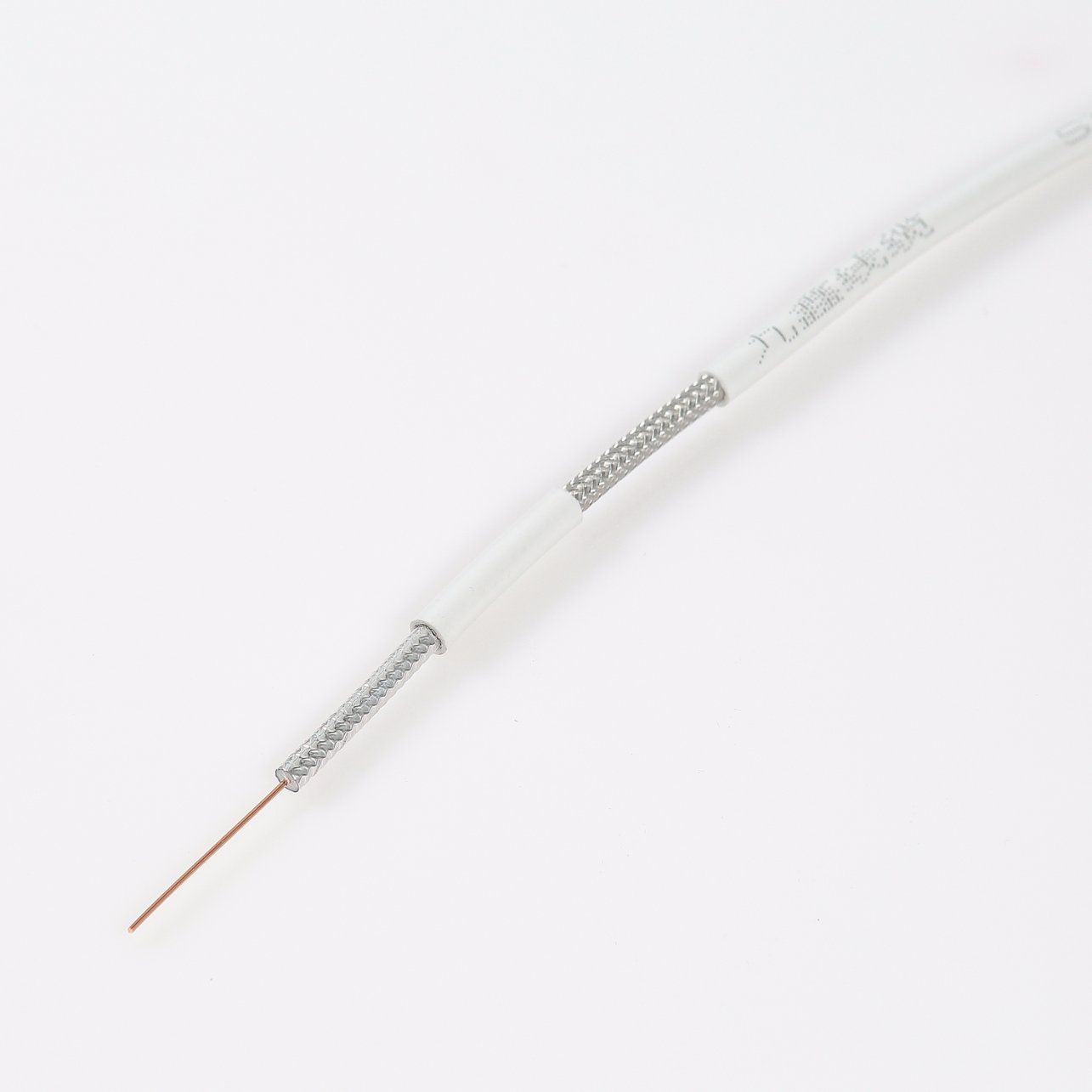

SYWV(Y)-75-5 foam coaxial cable
Specification:*. Tinned Copper BC: Bare Copper CCS: Copper Clad Steel CCA: Copper Clad Aluminum*. Al-Foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil and Messenger are available;
*. Braiding wire: AL, BC and TC available;
*. Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
*. Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
*. Braiding coverage: Between 30- 97% available;
*. PVC jacket of Flame retardant, UV, or UL available. | Component | Standard-Shield (Dia.mm) | Three-Shield (Dia.mm) | Quad-Shield (Dia.mm) |
| Inner Conductor | 1.02 | 1.02 | 1.02 |
| Dielectric | 4.57 | 4.57 | 4.57 |
| First Shield(Tape) | 4.75 | 4.75 | 4.75 |
| Jacket | 6.90 | 7.06 | 7.54 |
| Steel Messenger | Single | 1.30 | 1.30 | 1.30 |
| Dual | 1.83 | 1.83 | 1.83 |
| Impedance | 75ohms |
| Shielding Effectiveness (Ydb) | 55MHz | 68 |
| 300MHz | 70 |
| 1000MHz | 70 |
Electrical Characteristic| Electrical Characteristics [@68°F. ( 20°C)] |
| | Frequency(Mhz) | Nominal values (dB/100M) | Frequency(Mhz) | Nominal values (dB/100M) | Frequency(Mhz) | Nominal values (dB/100M) |
Attenuation | 5MHZ | 1.27 | 550MHZ | 9.97 | 2250MHZ | 21.68 |
| 50MHZ | 2.69 | 750MHZ | 11.97 | 3000MHZ | 24.57 |
| 100MHZ | 3.67 | 862MHZ | 12.69 | | |
| 200MHZ | 5.26 | 1000MHZ | 14.10 | | |
| 400MHZ | 8.11 | 1800MHZ | 20.15 | | |
| Min Return Loss(dB) | ≥20 |
| Impedance(Ω ) | 75± 3 |
| Velocity Rate(%) | 85 |
Application:
*. CATV-community antenna television
*. CCTV-closed-circuit television
*. DBS-direct broadcasting satellite etc
Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
Question & Answer
1. What is your MOQ?
Generally, we make mass production based on MOQ 500pcs, single blister packing, since our sub-supplier ask
for 500pcs MOQ for blister. So if bulk package is ok for you, we can accpet lower order quantity.
2. How about your delivery date?
Normally our delivery date is about 25-30days after payment received.
3. Can you supply sample for customer
We can supply sample for customer's quality checking before placing new order to us, the delivery
cost will be charged on customer's account.
4. How about your price?
We will do our best to offer a good price for our customers, usually our price is worked out according
to the current exchange rate, probable order quantity, most important is your sincerity on cooperation!
About US

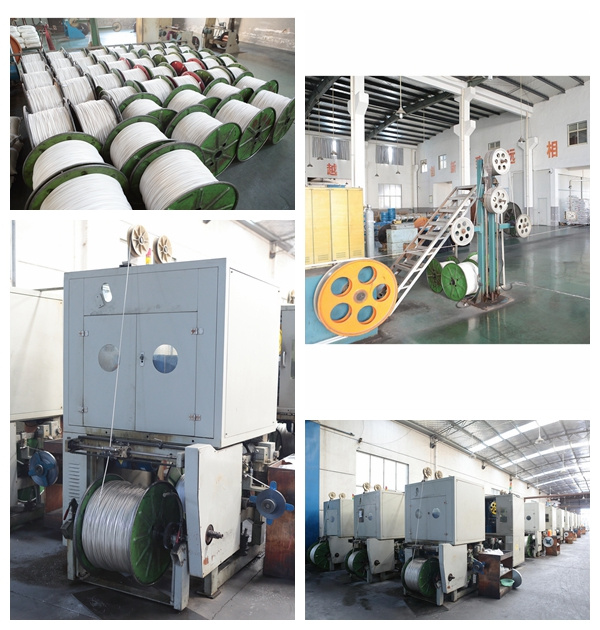

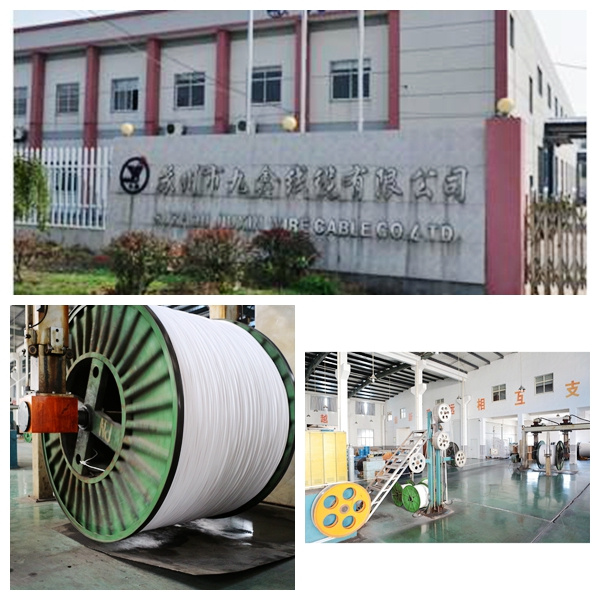

Suzhou Jiuxin Cable Co. Ltd was founded in 2003. is a professional manufacture of coaxial cable. located in Qidu town ,Wujiang District of Suzhou City. Company occupies the workshop area 3000 square meters, and employs 200 people.
The company mainly produces CATV television cable (coaxial cable) SYWV75-5 series, SYWV (Y) 75-7 series, SYWV (Y) 75-9 series, SYWV (Y)75-12 series, SYWLY75-9/12 aluminum pipe cable series, RG6 series and RG11 series and so on. Inspection by professional organizations, the company's products meet national standards, and we have got SARFT registration certificate and ISO quality system certification.
Suzhou Jiuxin Cable Co. Ltd was founded in 2003. Is a professional manufacture of coaxial cable. Located in Qidu town, Wujiang District of Suzhou City. Company occupies the workshop area 3000 square meters, and employs 200 people.
The company mainly produces CATV television cable (coaxial cable) SYWV75-5 series, SYWV (Y) 75-7 series, SYWV (Y) 75-9 series, SYWV (Y)75-12 series, SYWLY75-9/12 aluminum pipe cable series, RG6 series and RG11 series and so on. Inspection by professional organizations, the company's products meet national standards, and we have got SARFT registration certificate and ISO quality system certification.
Providing excellent service to all customers is the basic policy of Jiuxin. With excellence in quality control and the responsibility of management, we will continuously devote to company future and staff well-beings.
