Sywv75-5 Rg6b Foam PE RF Coaxial Cable

Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PE
Certification:	RoHS
Brand:	Jiuxin

Product Description

The products is manufactured according to the standards of SJ/T11138-1997. The cables has the low loss, low minimum attenuation properties
The product is mainly applied to the closed-circuit television system, community antenna television system, CATV system brand line and othe eletronic devices below 1GHz

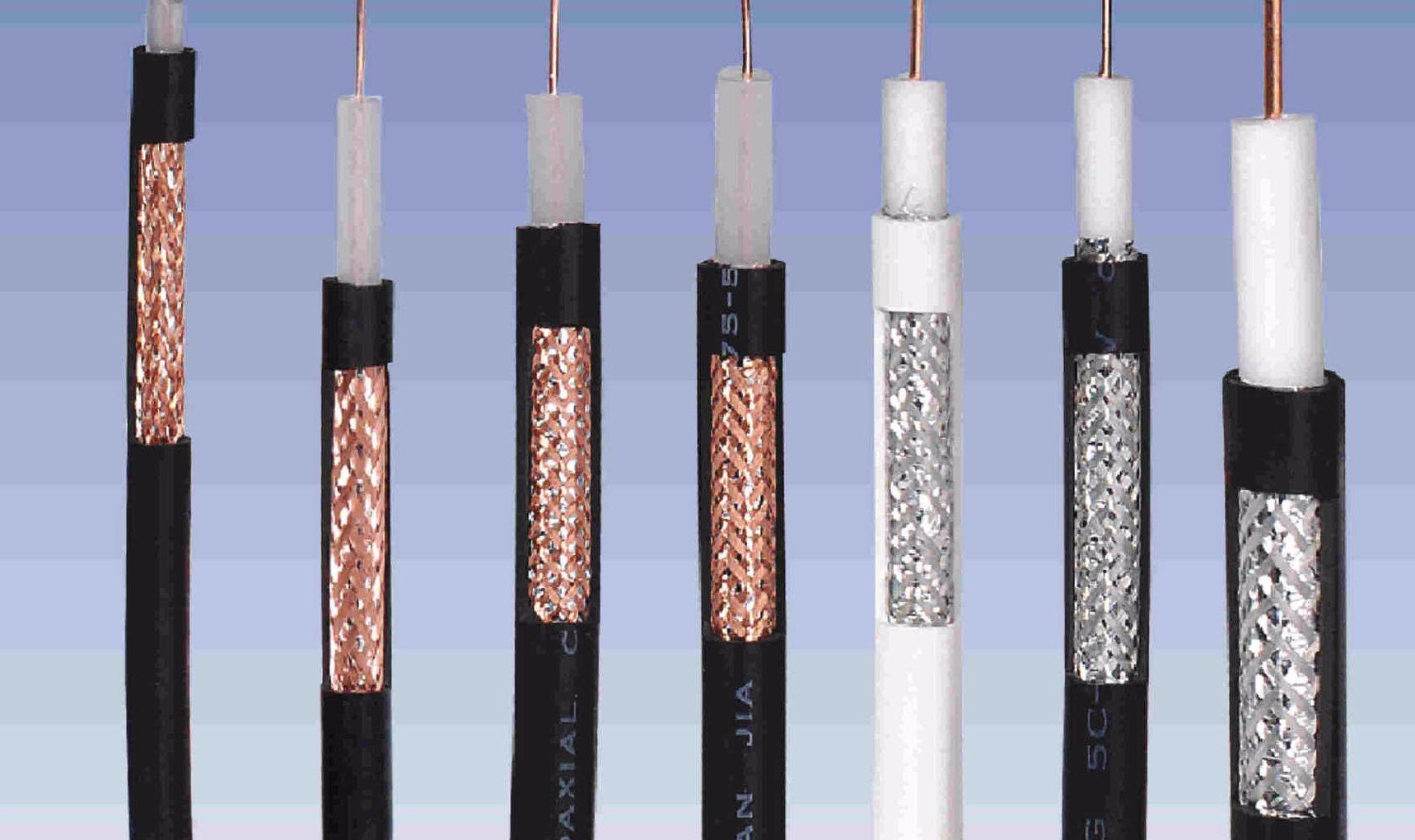

Product Structure

TYPE	Inner conductor		insulation		Outer conductor	Jacket
	Material	diameter	thickness	diameter	Form	Thickness	Diameter
SYWV-75-5	Copper/CCS	1/1.02	1.90	4.8±0.20	Tinned or Alloy Wire	0.88	7.2±0.3
SYWV-75-7	Copper/CCS	1/1.66	2.80	7.25±0.25	Tinned or Alloy Wire	1.05	10.3±0.3
SYWV-75-9	Copper/CCS	1/2.15	3.42	9.00±0.25	Tinned or Alloy Wire	1.15	12.3±0.3



 About JIUXIN Cable

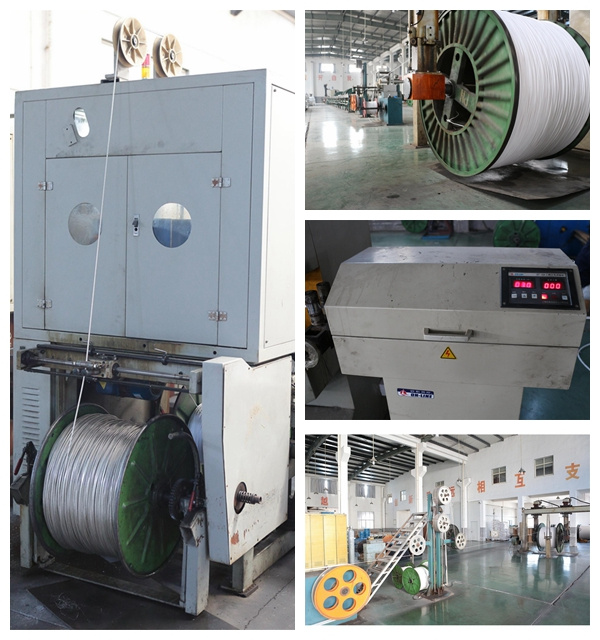

Suzhou Jiuxin Cable Co. Ltd was founded in 2003. is a professional manufacture of coaxial cable. located in Qidu town ,Wujiang District of Suzhou City. Company occupies the workshop area 3000 square meters, and employs 200 people.
The company mainly produces CATV television cable (coaxial cable) SYWV75-5 series, SYWV (Y) 75-7 series, SYWV (Y) 75-9 series, SYWV (Y)75-12 series, SYWLY75-9/12 aluminum pipe cable series, RG6 series and RG11 series and so on. Inspection by professional organizations, the company's products meet national standards, and we have got  SARFT registration certificate and ISO quality system certification.
Providing excellent service to all customers is the basic policy of Jiuxin. With excellence in quality control and the responsibility of management,  we will continuously devote to company future and staff well-beings.
