| Prod Model: |
SZ11 |
| Rated Capacity: |
630kVA-10000kVA |
| Rated Voltage: |
35kv |
| Vector Group: |
Dyn11 / Yyn0 |
| Material: |
Copper /Aluminum Winding |
| Application: |
Rectifier |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi Electirc |
Product Description
[ Product description ]

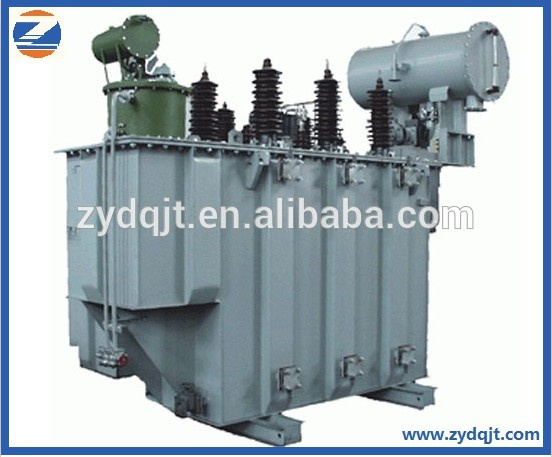

| Model Name: | SZ11 Series 35KV Regulating Transformer with OLTC |
| Specification : |
1.Rated Capacity : 630kva 800kva 1000kva 1250kva 2000kva 5000kva 10000kva
2.Rated Voltage : 35KV 38.5KV
3.Vector Group : Yd11 / Ynd11
4.Tapping Range : ±3×2.5%
|
| Detailed images | 1.[ Reliable Structure:]
Spiral loops with longitudinal oil path to produce a better interior cooling effect; Improve the effectual support of the loop's terminal face to strengthen the anti-short circuit electricity capability; New suspending structure and instrument-positioning frames to guarantee that the long distance transport and movement will be more reliable.
2.[ Excellent Materials:]
Oxygen-free copper lines of lower resistivity, which will become smoother and burr-free after series of additional surface treatment, so the load loss of our transformer is lower and the electric performance is better.
High-quality silicon-steel plates which are of lower unit loss, and the no-load of the transformers is lower.
High-quality wooden laminating insulation pieces, which won't split or move even under the influence of short circuit.Thoroughly filtrated transformer oil containing less water, gas and impurities, which makes our transformers work better.
High quality rubber sealing material, which can prevent the transformers form aging or leakage. |
|
[ Technical Parameters: ]
Model |
Voltage Combination | Connection Group Symbol | No-load Loss (W) |
Load Loss R(W) | No-load Current(%) |
Short circuit impedance (%) | Length L(mm) | Width W(mm) | Height H(mm) | *Gauge Horizontal*Vertical (mm) | Active parts Weight(Kg) | Oil Weight(Kg) | Total Weight(Kg) |
| |
High Voltage (kV) | Tapping Range of High Voltage % | Low Voltage (kV) | | | | | | | | | | | | |
| 630 | 35 | ±2×2.5%
±5%
| 3.15
6.3
10.5 | Yd11 | 830 | 7860 | 0.65 | 6.5 | 2400 | 1700 | 2210 | 820*820 | 2210 | 900 | 3250 |
| 800 | | | | | 980 | 9400 | 0.65 | | 2500 | 1850 | 2390 | 820*820 | 2350 | 1030 | 3500 |
| 1000 | | | | | 1150 | 1150 | 0.65 | | 2700 | 1950 | 2510 | 820*820 | 2490 | 1180 | 3860 |
| 1250 | | | | | 1400 | 1390 | 0.55 | | 2900 | 2050 | 2630 | 820*820 | 2600 | 1350 | 4350 |
| 1600 | | | | | 1690 | 1660 | 0.45 | | 3050 | 2130 | 2750 | 820*820 | 2810 | 1580 | 4855 |
| 2000 | | | | | 2170 | 1830 | 0.45 | | 3105 | 2195 | 2805 | 1070*1070 | 2800 | 1800 | 5300 |
| 2500 | | | | | 2560 | 1960 | 0.45 | | 3150 | 2535 | 2980 | 1070*1070 | 3525 | 2060 | 7665 |
| 3150 | 35-38.5 | ±2×2.5%
±5%
| 3.15
6.3
10.5 | | 3040 | 2300 | 0.45 | 7.0 | 3920 | 2725 | 2840 | 1070*1070 | 3995 | 2205 | 8565 |
| 4000 | | | | | 3610 | 2730 | 0.45 | | 3310 | 2915 | 3070 | 1070*1070 | 4825 | 2560 | 10115 |
| 5000 | | | | | 4320 | 3130 | 0.45 | | 3480 | 3020 | 3145 | 1070*1070 | 5700 | 2635 | 11305 |
| 6300 | | | | | 5240 | 3500 | 0.45 | 8.0 | 3590 | 2905 | 3210 | 1475*1475 | 7120 | 3240 | 13510 |
| 8000 | 35-38.5 | ±2×2.5%
| 3.15
3.3
6.3
6.6
10.5 | YNd11 | 7200 | 3840 | 0.35 | | 4070 | 3050 | 3595 | 1475*1475 | 8875 | 3840 | 16690 |
| 10000 | | | | | 8700 | 4530 | 0.35 | | 4106 | 2795 | 3655 | 2000*1475 | 10305 | 3600 | 17690 |
| 12500 | | | | | 1000 | 5380 | 0.30 | | 4570 | 3010 | 3840 | 1475*1475 | 12830 | 4310 | 20990 |
| 16000 | | | | | 1210 | 6580 | 0.30 | | 5235 | 3295 | 4615 | 2000*1475 | 16010 | 6650 | 27660 |
| 20000 | | | | | 1440 | 7950 | 0.30 | | 5360 | 3415 | 4660 | 2000*1475 | 18820 | 7600 | 32170 |
[ Packing & Delivery :]
| SAFE, TIMELY, EFFICIENT |
| For the product: | Most value S9 type oil immersed three phase 10kv-20 kv power transformer, we normally use wooden case or steel frame to pack , the packing size is up to the different models. As for very big transformers, we will order special containers to ship them. OR AS YOUR ORDER. |
| packing Details: | Inner Plastic smocks or asphalt felt bag with desiccating agent,then wooden carton or frame steel . |
| Delivery Details: | If you buy standard type product : 5-12 work days .If you buy Customized products: As your purchasing quantity to decide . |
[ Our Company ]:
Baoding Zhongyi Electrical material Manufacturing Co., Ltd.mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
Baoding Zhongyi Electrical material Manufacturing Co., Ltd. follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
