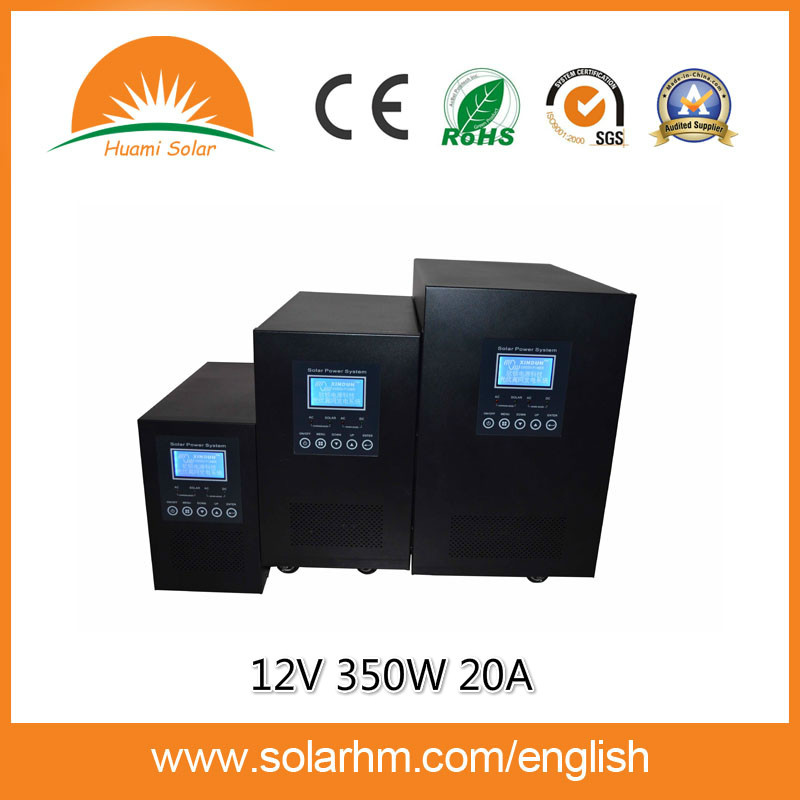

(T-12352) 12V350W20A Pure Sine Wave PV Inverter & Controller

Name: (T-12352) 12V350W20A Pure Sine Wave PV Inverter & Controller
Brand: all-electronics-online.com
SKU: 781216745
Availability: InStock
Rating: 4.7 (24 reviews)

Price:	US $ 89-98/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	T-12352
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	345210122mm
N.W:	9
Charge Current:	10A
Rated Charging Voltage:	12DC
Compulsive Charging Voltage:	14.8V
Balanced Charging Voltage:	14.4V
Floating Charging Voltage:	13.8V
Recovery Charging Voltage:	13.3V
Battery Over Voltage Protection/Recovery:	16.5V/15V
Under Voltage Protection:	10.5V

Product Description

product parameter

model	size	N.W(KG)
T-12351	345210122mm	9
T-12352		9
T-12501		10
T-12502		10

pv controller

Charge current	Rated charging voltage	Compulsive charging voltage	Balanced charging voltage	Floating charging voltage	Recovery charging voltage	Battery over voltage protection/recovery
10A	12DC	14.8v	14.4v	13.8V	13.3v	16.5v/15v

pv inverter

DC voltage	12v
Under voltage protection	10.5v
Inverter structure	Power frequency structure
Mains input	100v/110v/120v/127v/220v/230v/240v(±25%)
Inverter output	100v/110v/120v/127v/220v/230v/240v(±2%)
Mains input charging current	10A
Working way	Mains priority/solar power priority(optional)
Conversion time	≤4ms
Overload capacity	Overload 110% 30 seconds the machine automatically shut down; overload shutdown 120% 2 seconds;mains mode overload do not shutdown.
Conversion efficiency	≥80%
Output waveform	Pure sine wave
Work environment	Temperature 0-40ºC, humidity10-90%
Cooling mode	Forced air cooling
Protection function	Mains over/under-voltage, direct current is too high/under voltage, the inverter output short circuit
Display	LCD
Output waveform distortion	≤±0.3%
Input and output frequency	The same with power system

This solar system is consist of solar controller and pure sine wave inverter,ect.

Controller: solar power controller is an important part of the solar power system, System of charging and discharging and load work automatically by its intelligent control and protection. Its performance directly affects the reliability of the system. Especially the battery life, overcharge or over discharge will be cause damage and even lethal damage for the battery

Inverter: in solar photovoltaic power supply system, if it has the AC load, it is necessary to use the devices of the inverter. The direct current generated by solar modules or the battery release of DC into AC for load.

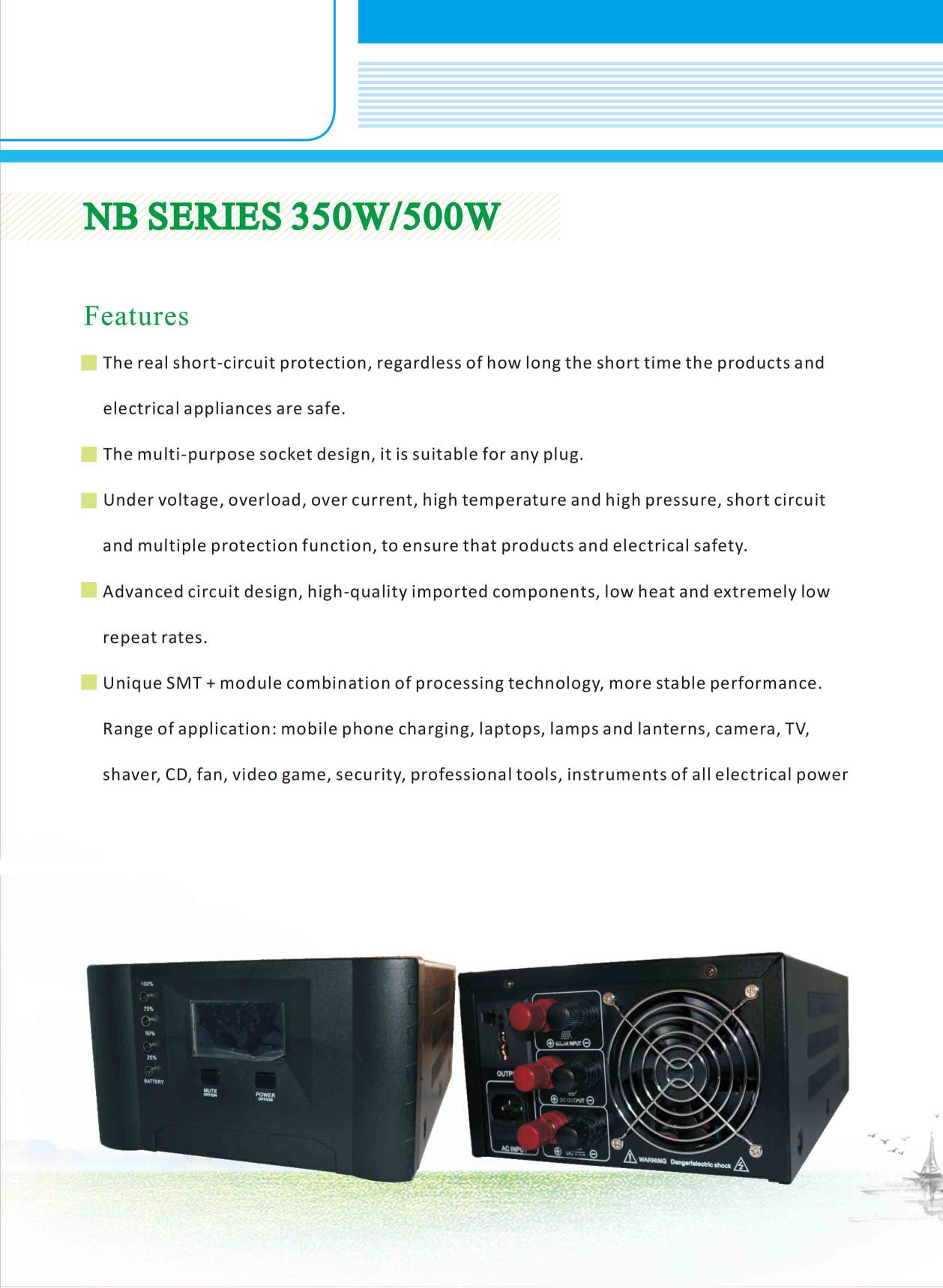

Features:
1.The real short-circuit protection, regardless of how long the short time the products and electrical appliances are safe. .
2.The multi-purpose socket design, it is suitable for any plug .
3.Under voltage, overload, over current, high temperature and high pressure, short circuit and multiple protection function, to ensure that products and electrical safety .
4.Advanced circuit design, high-quality imported components, low heat and extremely low repeat rates.
5.Unique SMT + module combination of processing technology, more stable performance.Range of application: mobile phone charging, laptops, lamps and lanterns, camera, TV, shaver, CD, fan, video game, security, professional tools, instruments of all electrical power.

Guangzhou Huami Solar Power Co., Ltd is a high-technical photovoltaic enterprise, which is located in Guangzhou, Guangdong province. And as a bridge connecting the most advanced Chinese photovoltaic industry and the rest of the world.

Our company specializes in solar panel, ranging from 1W to 300W, and solar roof tiles, which is unique in the world, and mainly divided into 8W, 12W, 20W and 24W capacity. All these products get the CE, RoHS, TUV and ISO 9001, ISO14001 certificate. As customer needs, we can supply both off-grid and on-grid solar system. Besides, our solar lamp, solar inverter, solar controller are all very popular in many countries.

Our company is honored with the short lead time, high quality, competitive price and first-class service in the solar power business field, that's why we can export lots of profucts to Eastern Europe, Northern Europe, Southeast Asia, Africa, andSouth America.

Welcome to visit our company and we are looking forward to cooperating with clients from all over the world!
