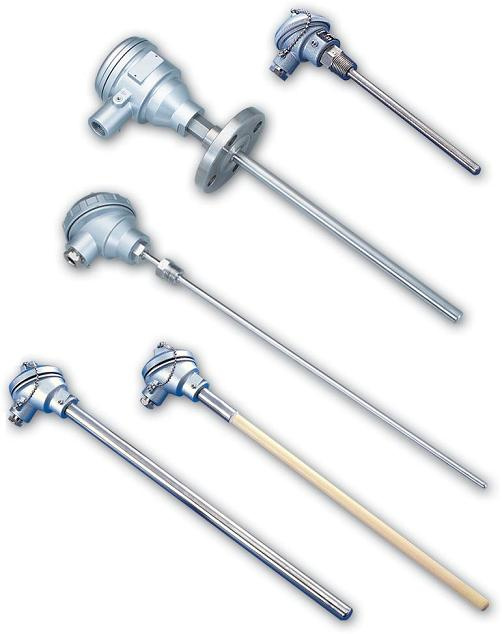

T/C Head Type Thermocouple

Products Information

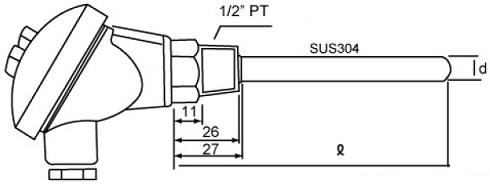

MT-106 Series General Thermocouple

→K / J Type
→With round T/C head and thread connection 1/2"~3/4"
→9.5Φ~under 600°C
   12.7Φ~under 700°C
   15.9Φ~under 800°C
   17.3Φ~under 900°C
   21.7Φ~under 1,000°C

Products Information

MT-106-1 Series General Thermocouple

→K / J Type
→With round T/C head and thread connection 1/2"~3/4"
→9.5Φ~under 600°C
   12.7Φ~under 700°C
   15.9Φ~under 800°C
   17.3Φ~under 900°C
   21.7Φ~under 1,000°C

Products Information

MT-107 Series General Thermocouple

→K / J Type
→With round T/C head but without thread connection
→9.5Φ~under 600°C
   12.7Φ~under 700°C
   15.9Φ~under 800°C
   17.3Φ~under 900°C
   21.7Φ~under 1,000°C

Products Information

MT-108 Series General Thermocouple

→K / J Type
→With round anti-explosion T/C head and flange
→9.5Φ~under 600°C
   12.7Φ~under 700°C
   15.9Φ~under 800°C
   17.3Φ~under 900°C
   21.7Φ~under 1,000°C

Products Information

MT-109 Series General Thermocouple

→R / S Type
→With round T/C head but without thread connection
→6, 8, 10, 12, 13, 15, 17Φ
   ceramic tube, up to 1,600°C
