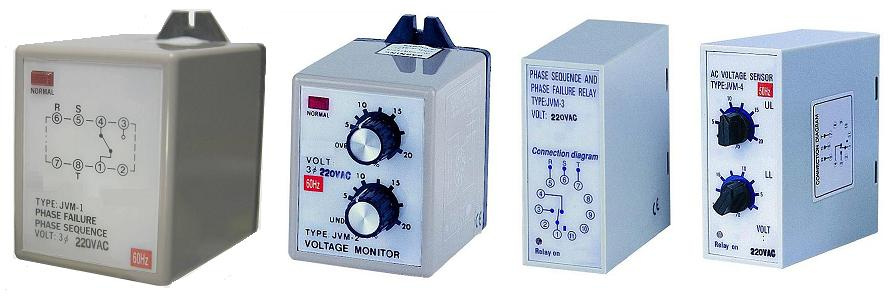

Volt Detecting Protecting Relay Jvm-1

Name: Volt Detecting Protecting Relay Jvm-1
Brand: all-electronics-online.com
SKU: 690665951
Availability: InStock
Rating: 4.6 (74 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,L/C,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JVM-1
Sales Method:	Export, Manufacture, OEM/ODM

Product Description

→Application : Phase Failure, Phase Sequence, Over / Under Voltage
→For preventing from three phase Inductive Motors reverses, it’s included additional power
   surging protection within 440V and to protect the overloading situation.
→Phase failure protection: When Power is fail, the loading is stop.
→Phase Sequence protection: When measuring the sequence of three phase, the power is
   stop to prevent motors from reversing.
→This series is for detecting and protecting the power status. When the power is applied
   un-normally, the protect relay automatically stops the power as well as to protect the
   electric circuits in the system.
→Surface mounting : Socket base 8PFA --- JVM-1 / JVM-2
                                Socket base P2CF11 --- JVM-3 / JVM-4
→Output capacity : SPDT 5A
→Response time of relay : Delay on 0.5sec., delay off 3 sec.
→Frequency : 50Hz or 60Hz (Depend upon user's area)Safety/Quality Approvals:
