| Prod Model: |
TK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
3kv 6kv 10kv |
| Shape: |
Linear Power |
| Installation Type: |
Im7311/Im5710 |
| Frequency: |
50/60Hz |
| Cooling Method: |
IC01 |
| Protaction Class: |
IP00 |
| Insulation Class: |
F |
| Temprature Rise: |
B |
| Working Duty: |
S1(Continuous) |
| Output Power: |
800kw |
| Number Of Poles: |
Three-Phase |
| Operation Mode: |
Electric Motor |
| Operating Speed: |
Constant Speed |
| Application: |
Power Tools |
| Ventilation: |
Closed |
| Structure: |
Rotating Pole Type (',Armature Fixed) |
| Magnetic Structure: |
Permanent Magnet |
| Brand: |
Pinnxun |
| Certification: |
ISO9001 CE CCC |
Product Description
Specifications

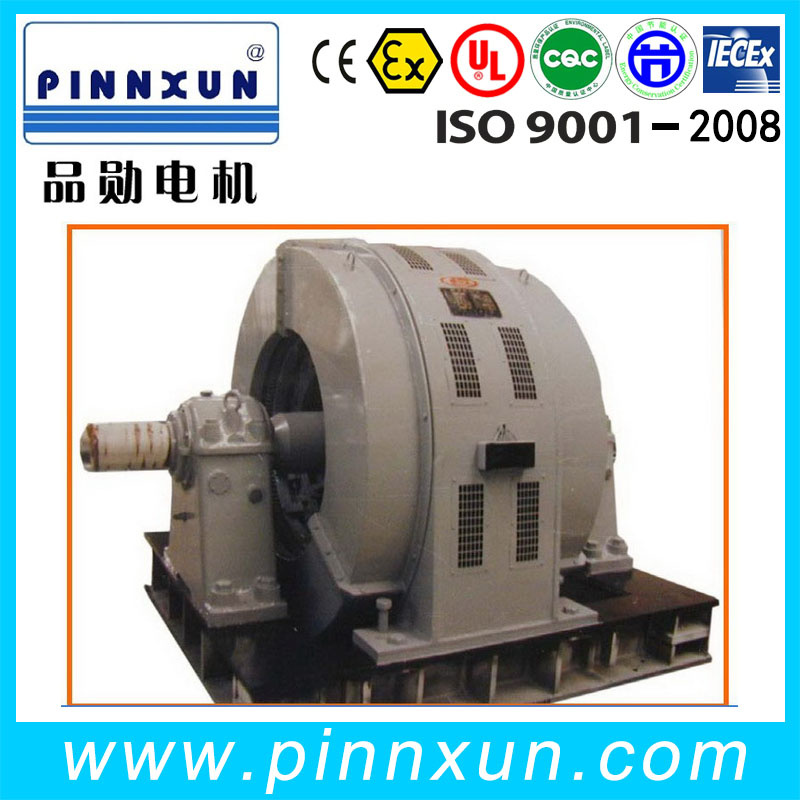

T series ac efficiency synchronous motor
Good quality with pretty price
Their voltage grade is 380V. 660V, 6KV, 10KV...Number of poles is 6 to 24, power range is 200KW to 1800KW.
Motor Performance
Power range: 160kw-6000kw
Frame Size: 355-1000mm
Rated Voltage: 3.3KV 6.6KV 10KV 11KV 13.8KV
Speed; 3000rpm 1500rpm 1000rpm 750rpm 600rpm
Protection Class: IP44 IP54 IP55
Cooling type; IC611 IC616
Ambient Temperature: -15° C~40° C
Altitude: Not exceed 1000 Meter
Rated Frequency: 50Hz/60Hz
Insulation Class: F
Temprature rise: B
Working Duty: S1(Continuous)
Usage of synchronous motor
The motors of three-phase synchronous are uesd for dniving large machinerydemanding invanable speed. Forexample industnal fan. Reciprocating compressor. Kibbler, water pump. Rolling mill auxilixry drive, etc. They are characterized by ldading power factor that can ameliorate the factor of the net. Reloiable operation, hifh of bigger over load multiple than the same three-phase AC asynchronous motors. Otherw ise the loading changes.
Their voltage grade is 380V. 660V, 6KV, 10KV...Number of poles is 6 to 24, power range is 200KW to 1800KW.
They are featured by advanced technology. Reasonable structure, high insulation grad. Good elecncal characteristic. Reasonable operation and convenient installation &maintenance. Before it leaves the factory, all motors shall have passed strict electrical inspection and running test wish assured performances.
The motors have two construction types. Salient pole and cryptic pole, and two mouning types, and horizontal type. The motors can be made two construction typed, one wish shaft and bearing(IM7311), the other without shaft and bearing (IM7311), The tyoe of cooling is often opening (IC01)and other types, The outer shell, s basic protection class is often IP00. Also can be made of IP23 and other degrees, The insulation class is F. The temperature difference is measured by class B. The way of excitation is ststic excitation, If the consumer want other demand, the motorscan be made into special types with salt-fog moisture &mould-proof or for high elevation.
Ordering Informations
1. Please indicate the motor type, rated output, rated voltage, rated frequency, synchronous speed, Explosion proof Mark, mounting type, rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment, normailly we think is CW roration and used indoor.
2. When user have special requirments, For example: Dispose the stator, bearing explosion proof and bearing temperature sensors, space heater, Plateau use, specical frequency, mounting size change, special output, the user must, order can be confirm after signing the technical agreement with engneering department.
3. The catalogue is only fpr reference, and there may be variations.
4. This range of motor can also be made into Variable-Frequency motors, the range of frequency of which is 0-100HZ, the output and overall dimensions should be confirm separately.
| Rated voltage | 6kv, 3kv, 10kv |
| Power range | 450-10000kw |
| Protection degree | IP44, IP54 |
