| Prod Model: |
TA8-12K |
| Product Name: |
Ta 8-12K Low Frequency Online UPS |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Kemapower |
Product Description
TA 6-12K Low frequency online ups 1. Single phase in, single phase out
2. Microprocessor control
3. True on-line double conversion design
4. Sine wave pulse width modulation.
5. Isolated output
6. IGBT inverter design
7. Wide Input voltage windows
8. Pure sine wave output with less than 3% THD
9. Expandable backup time
10. Generator compatible
11. Cold start
12. Load/Battery power meter display
13. Overload, on-line, battery status LED/LCD
14. Advanced Battery Management
15. Automatic charging in UPS off mode
16. Zero transfer time
17. Smart RS-232 communication port
18. Optional SNMP card
Technical Specification | MODEL | TA8K | TA10K | TA12K |
| Power capacity | 8KVA | 10KVA | 12KVA |
| 6.4kW | 8KW | 9.6KW |
| Input | Voltage Range | 220V or 110V+-20% |
| Frequency | 50/60Hz±5% |
| Phase | Single phase + GND |
| Output | Voltage Range | 220VAC ±1% or 110VAC ±1% |
| Frequency | 50/60Hz ± 0.3% |
| Phase | Single phase + GND |
| THD | < 3% (linear load), < 5%( nonlinear load) |
| Power Factor | 0.8 |
| Short Circuit Protection | Current limit, turn off automatically, Switch protect |
| Overload Capacity | Overload 125% for 10 Mins, 125%-150% for 30s .automatically resume when load become |
| normal |
| Battery | Type | Sealed lead acid, maintenance free |
| DC Voltage | 192VDC |
| Charge current | 6A | 6A | 6A |
| Panel indication | LCD | Input,oupt,battery voltage,frequency,load rate,UPS state, temperature |
| LED | Main input , bypass,Inverter,Battery,Over load,Fault |
| Efficiency | Whole unit | 85% |
| Communication | 1.Power status 2.UPS shutdown 3.monitor UPS status 4.UPS self test 5.auto-save files |
| Protection | Surge Protection | IEEE527B |
| Noise | FCC.A |
| Audible Noise | <55db (at 1 meter) |
| Environment | Temperature | 0--40 ºC |
| Humidity | 0%-95% |

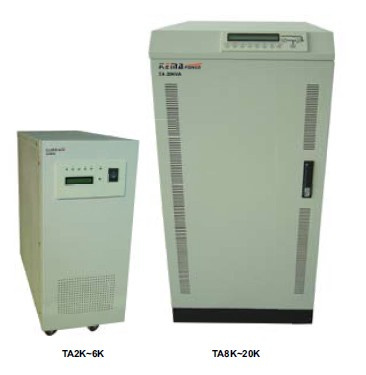

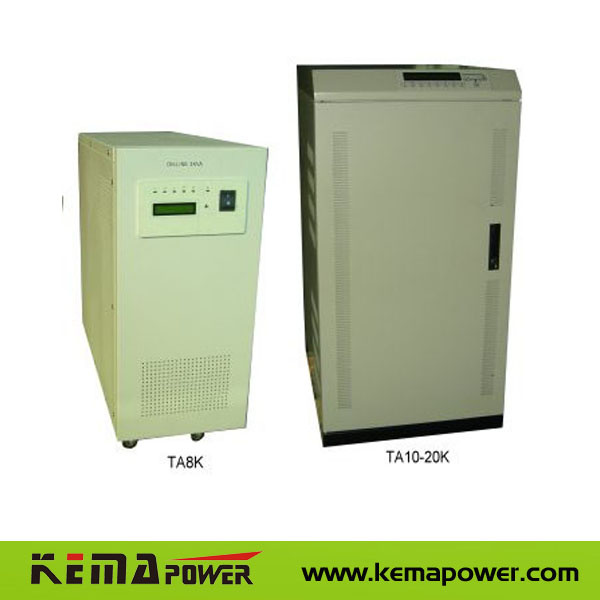

Product Show:
