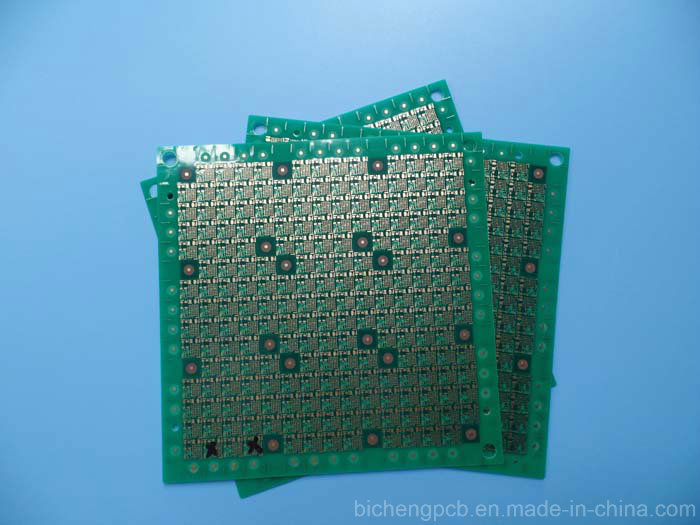

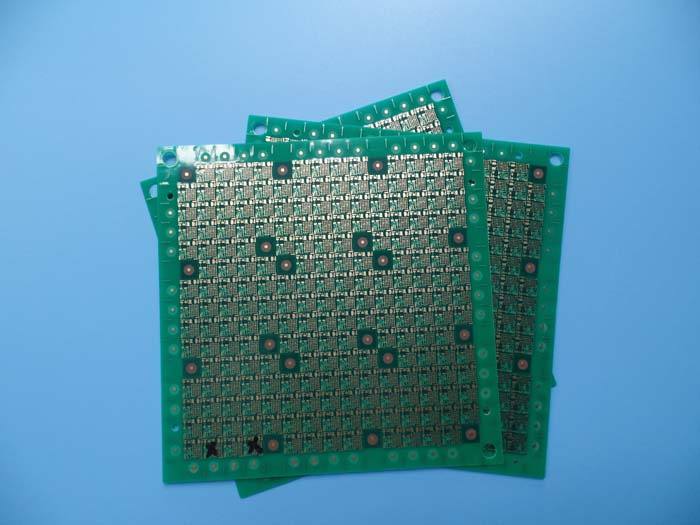

Tacoinc Tly-5 0.508mm (20 mil) PCB Board Panel Process
| Price: |
US $ 2.06/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-557-V5.57 |
| Board Thick: |
0.5mm |
| Out Layer Copper: |
1 Oz |
| Surface Finish: |
Enig |
| Soldermask Color: |
Green,Psr-2000gt 600d |
| Silkscreen Color: |
White,Ijr-4000 MW300 |
| Min Line Width (Mil): |
5.2 |
| Min Line Spacing (Mil): |
5.8 |
| Electrical Test: |
100% PCB Passed |
| Visual Inspectio: |
Ipc-a-600h&Ipc-6012c |
| Warp-Twist: |
<= 0.75% |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Company ProfileBicheng Enterprise Limited serves global clients from Shenzhen, China since 2003.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
Printed Circuit Board

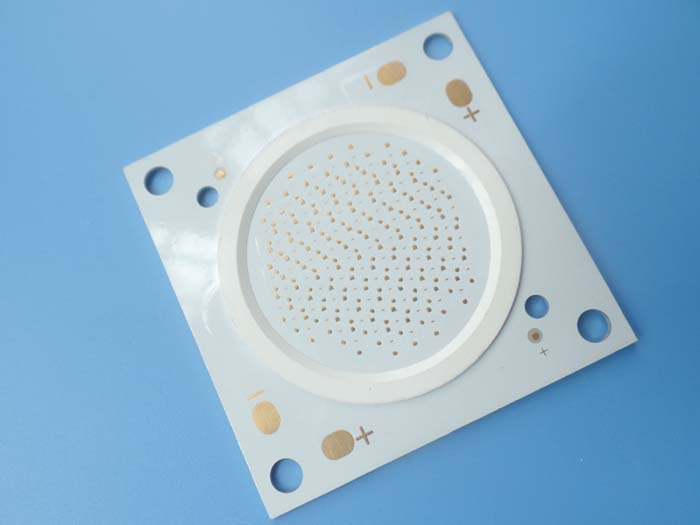

Aluminum PCB

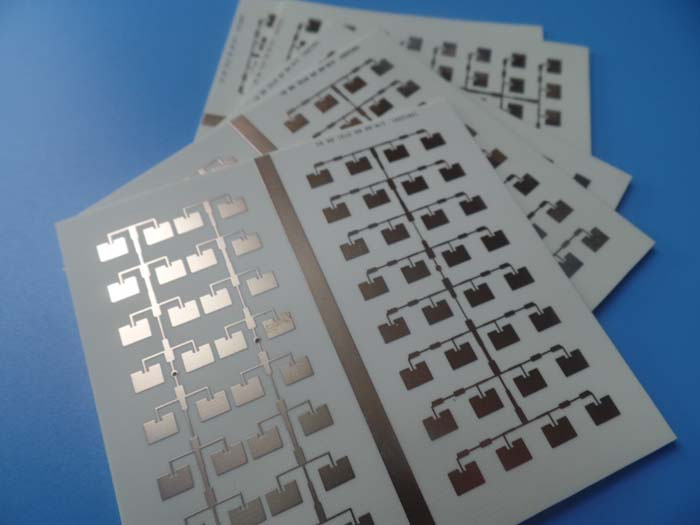

High Frequency PCB

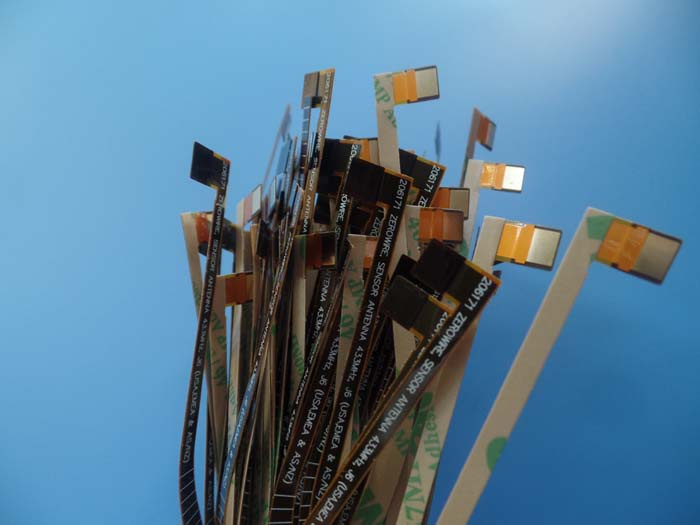

Flex PCB
ITEQ Laminate/ Prepreg : IT-180ATC / IT-180ABS
IPC-4101C Spec / 99 / 101 / 126
LAMINATE( IT-180ATC)| Property | Thickness
<0.50 mm | Thickness
>=0.50 mm | Units | Test
Method |
| [0.0197 in] | [0.0197 in] |
Typical
Value | Spec | Typical
Value | Spec | Metric | IPC-TM-
650 |
| (English) | (or as
noted) |
Peel Strength,
minimum | | | | | N/mm | 2.4.8 |
A.Low profile
copper foil and
very low profile
copper foil - all
copper weights >
17mm [0.669 mil] | | | | | (lb/inch) | 2.4.8.2 |
B.Standard profile
copper foil | 0.88 (5.0) | 0.70 (4.00) | 0.88 (5.0) | 0.70
(4.00) | | 2.4.8.3 |
1.After Thermal
Stress | | | | | | |
| 2.At 125°C [257 F] | | | | | | |
3. After Process
Solutions | 1.23 (7.0) | 0.80 (4.57) | 1.40 (8.0) | 1.05
(6.00) | | |
| | 1.05 (6.0) | 0.70 (4.00) | 1.23 (7.0) | 0.70
(4.00) | | |
| | 1.05 (6.0) | 0.55 (3.14) | 1.23 (7.0) | 0.80
(4.57) | | |
Volume Resistivity,
minimum | | | | | MW-cm | 2.5.17.1 |
| A. C-96/35/90 | 3.0x1010 | 106 | -- | -- |
B. After moisture
resistance | -- | -- | 3.0x1010 | 104 |
C. At elevated
temperature E-24/125 | 5.0x1010 | 103 | 1.0x1010 | 103 |
Surface Resistivity,
minimum | | | | | MW | 2.5.17.1 |
| A. C-96/35/90 | 3.0x1010 | 104 | -- | -- |
B. After moisture
resistance | -- | -- | 3.0x1010 | 104 |
C. At elevated
temperature E-24/125 | 4.0x1010 | 103 | 4.0x1010 | 103 |
Moisture Absorption,
maximum | -- | -- | 0.12 | 0.8 | % | 2.6.2.1 |
Dielectric Breakdown,
minimum | -- | -- | 60 | 40 | kV | 2.5.6 |
Permittivity (Dk, 50%
resin content) | | 5.4 | | 5.4 | -- | |
(Laminate & Laminated
Prepreg) | | | |
| A. 1MHz | 4.4 | 4.4 | 2.5.5.9 |
| B. 1GHz | 4.4 | 4.4 | |
| C. 2GHz | 4.2 | 4.3 | 2.5.5.13 |
| D. 5GHz | 4.1 | 4.1 | |
| E. 10GHz | 4 | 4.1 | |
Loss Tangent (Df, 50%
resin content) | | 0.035 | | 0.035 | -- | |
(Laminate & Laminated
Prepreg) | | | |
| A. 1MHz | 0.015 | 0.014 | 2.5.5.9 |
| B. 1GHz | 0.015 | 0.015 | |
| C. 2GHz | 0.015 | 0.015 | 2.5.5.13 |
| D. 5GHz | 0.016 | 0.016 | |
| E. 10GHz | 0.017 | 0.016 | |
Flexural Strength,
minimum | | | | | N/mm2 | 2.4.4 |
| A. Length direction | -- | -- | 500-530 | 415 | (lb/in2) |
| | -- | -- | (72,500-76,850) | -60,190 | |
| B. Cross direction | -- | -- | 410-440 | 345 | |
| | -- | -- | (59,450-63,800) | -50,140 | |
Arc Resistance,
minimum | 125 | 60 | 125 | 60 | s | 2.5.1 |
Thermal Stress
10 s at 288°C
[550.4F],minimum | | | | | Rating | 2.4.13.1 |
| A. Unetched | Pass | Pass
Visual | Pass | Pass
Visual |
| B. Etched | Pass | Pass
Visual | Pass | Pass
Visual |
Electric Strength,
minimum | 45 | 30 | -- | -- | kV/mm | 2.5.6.2 |
(Laminate & Laminated
Prepreg) |
| Flammability, | V-0 | V-0 | V-0 | V-0 | Rating | UL94 |
(Laminate & Laminated
Prepreg) |
Glass Transition
Temperature(DSC) | 175 | 170 minimum | 175 | 170
minimum | ˚C | 2.4.25 |
Decomposition
Temperature | -- | -- | 345 | 340
minimum | ˚C | 2.4.24.6 |
(5% wt
loss) |
X/Y Axis CTE
(40ºC to 125ºC) | -- | -- | 10--13 | -- | PPM/˚C | 2.4.24 |
| Z-Axis CTE | | | | | | 2.4.24 |
| A. Alpha 1 | -- | -- | 45 | 60
maximum | PPM/˚C |
| B. Alpha 2 | -- | -- | 210 | 300
maximum | PPM/˚C |
| C. 50 to 260 Degrees C | -- | -- | 2.7 | 3.0
maximum | % |
| Thermal Resistance | | | | | | 2.4.24.1 |
| A. T260 | -- | -- | >60 | 30
minimum | Minutes |
| B. T288 | -- | -- | >30 | 15
minimum | Minutes |
| CAF Resistance | -- | -- | Pass | AABUS | Pass/Fail | 2.6.25 |

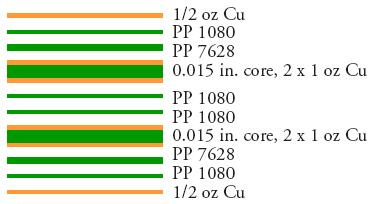

6 layer 0.062 stackup
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
