Taconic Tla-6 RF PCB Board 2 Layer Printed Circuit Board
| Price: |
US $ 1.52/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-103-V1.03 |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Via: |
Plated Through Hole(Pht) |
| Flamibility Rating: |
UL 94 V0 Approval Min |
| Minimum / Maximum Holes: |
0.3/7.6mm |
| Board Thick: |
1.1mm |
| Copper Thick: |
1.5 Oz |
| Minimum Trace and Space: |
6.4 Mil/6.3 Mil |
| Board Plating: |
0.0030" |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
PTFE Polytetrafluorothylene |
| Insulation Materials: |
PTFE Polytetrafluorothylene |
| Dielectric: |
Tla-6 |
Product Description

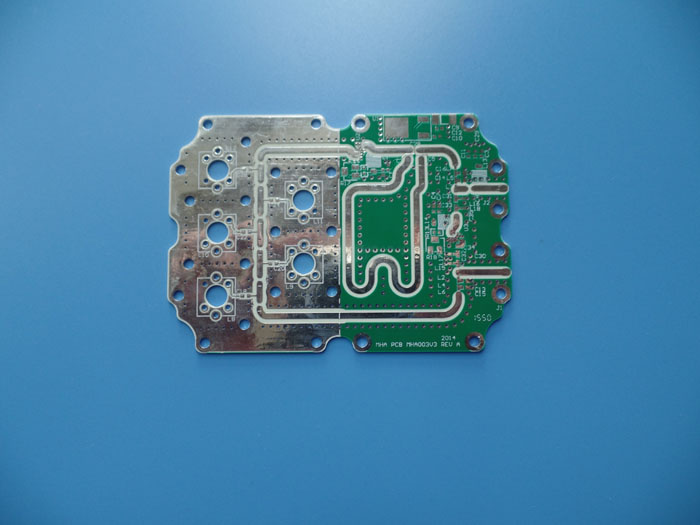

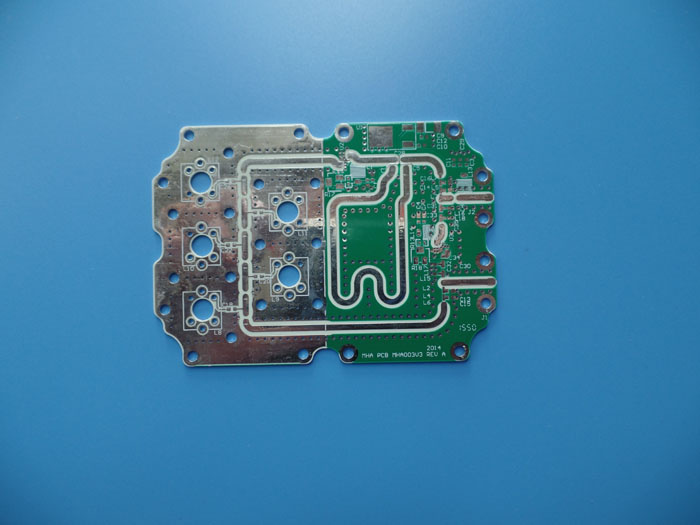

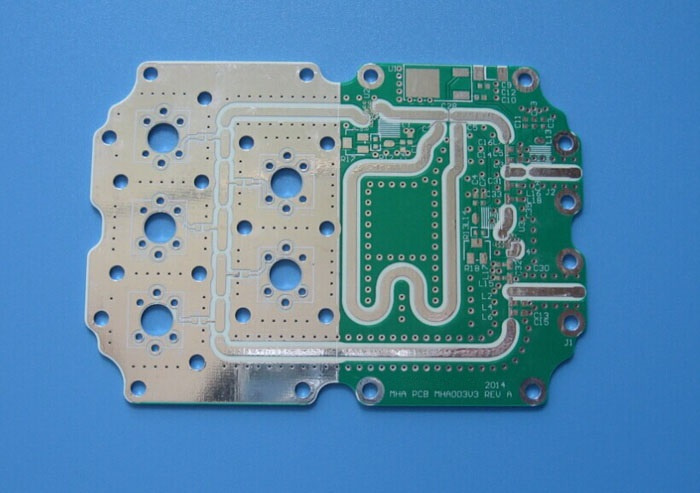

High Frequency RF PCB Board TACONIC TLA-6 37mil 1oz HASL printed circuit board Applied In GPS Antenna
Commodity IntroductionThis is a type of TLA-6
PCB for the application of GPS Antenna. It's a 2 layer board at 1.1mm thick.
The base laminate is from Taconic, Solder mask and silkscreen from Taiyo. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 105 x 65mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| TLA-6 37mil(0.94mm) |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 6.4mil/6.3mil |
| Minimum / Maximum Holes: | 0.3/7.6mm |
| Number of Different Holes: | 9 |
| Number of Drill Holes: | 149 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | TLA-6 37mil(0.94mm) |
| Final foil external: | 1.5oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.1mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | HASL ,Lead Free, Sn>=2.54µm |
| Solder Mask Apply To: | Top, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH), Via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | GPS antenna, Led Light Fittings
Video Surveillance Systems
Gigabit Switches
Wireless Adapters
DC AC Inverter |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Quality PolicyBicheng has developed series of management procedures and approaches to assure that PCBs are
in compliance with the customers' requirements, inclusive of selection of the vendors, work in progress
(WIP) inspection, outgoing delivery inspection and customer service etc. Evaluation and Audit of Suppliers Suppliers have to be evaluated by Bicheng. In addition, Bicheng will appraise and rank suppliers every
year to guarantee the materials supplied are meeting Bicheng's requirements. Furthermore, Bicheng
continuously develop suppliers and supervise them to improve their quality and environment management
basing on the systems of ISO9001 & ISO14001. Contract Evaluation Bicheng shall review and verify customer's requirements to make sure that we have the capability to satisfy customers' requirements including specifications, delivery and other demands prior to accepting an order. Making, audit and control of manufacturing data.When customers' design data and specifications are provided to our market department, Bicheng has to verify
all the requirements. Then, convert the design data into manufacturing data by CAM. Finally, a manufacturing
instruction (MI) is generated according to the real manufacturing process and technologies for manufacturing
department as the basis for actual fabrication. MI must be reviewed by independent engineers and QA
engineers before issue. Incoming Material Quality ControlAll materials have to be inspected before warehousing. We established a series of strict inspection procedure
and instruction to control the incoming materials. Furthermore, various precise inspecting instruments and
apparatus guarantee the capability to judge the material good or not. We issue material with first in first out principle, and give out "alarm" for the material that will reach the shelf life to ensure the materials are used up before expiry.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
