taizhou factory price CE approved Y2 series high quality copper wire winding three phase AC induction motor for fan
Price: |
US $ 100/Piece |
Trade Terms: |
FOB |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
Y2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Core Wire: |
100%Copper |
Power: |
0.18kw-315kw |
Protection Class: |
IP44 |
Insulation Class: |
F |
Protection Feature: |
Totally Closed |
Mounting: |
B3, B5, B35, B14, B34 |
Number Of Stator: |
Three-Phase |
Function: |
Driving |
Number Of Poles: |
2, 4, 6, 8 |
Certification: |
CE |
Product Description

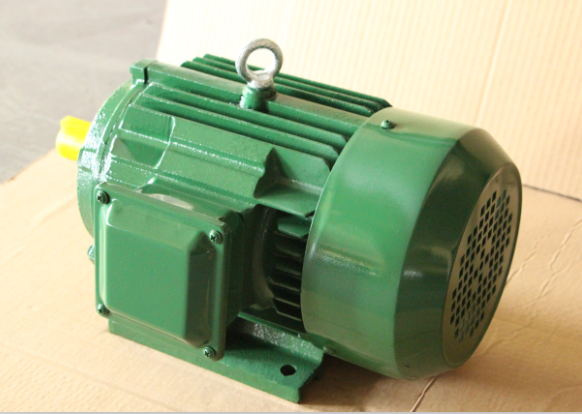

Product Description: taizhou factory price CE approved Y2 series high quality copper wire winding three phase ac induction motor for fan
Y2 series motor has the advantages of high efficiency and energy saving, low noise and little vibration. It is widely used in General purpose including cutting, machine, pumps, fans, conveyors,machine tools of farm duty and foodprocess, when:
1.The altitude not exceeding 1000m above sea level.
2.The ambient temperature varies in different season,but not exceeding +40 ºC and no less than -15 ºC
DETAILS:
a. Three phase
b. Aluminum casing
c. 100% Copper Wire
d. External Ventilation cooling
e. Class F insulation
f. IP44/54 Protection
g. Continous work duty type

TECHNICAL DATA
Type | Power | Current | Speed | Efficiency | Power Factor | Locked rotor torque rated torque | Locked rotor current rated current | Breakdown torque rated torque |
Y2-63M1-2 | 0.18 | 0.53 | 2720 | 65.0 | 0.80 | 2.2 | 5.5 | 2.2 |
Y2-63M2-2 | 0.25 | 0.69 | 2720 | 68.0 | 0.81 | 2.2 | 5.5 | 2.2 |
Y2-71M1-2 | 0.37 | 0.99 | 2740 | 70.0 | 0.81 | 2.2 | 6.1 | 2.2 |
Y2-71M2-2 | 0.55 | 1.4 | 2740 | 73.0 | 0.82 | 2.2 | 6.1 | 2.3 |
Y2-80M1-2 | 0.75 | 1.8 | 2840 | 75.0 | 0.83 | 2.2 | 7.0 | 2.3 |
Y2-80M2-2 | 1.1 | 2.6 | 2840 | 77.0 | 0.84 | 2.2 | 7.0 | 2.3 |
Y2-90S-2 | 1.5 | 3.4 | 2845 | 79.0 | 0.84 | 2.2 | 7.0 | 2.3 |
Y2-90L-2 | 2.2 | 4.9 | 2845 | 81.3 | 0.85 | 2.2 | 7.5 | 2.3 |
Y2-100L-2 | 3 | 6.3 | 2860 | 83.3 | 0.87 | 2.2 | 7.5 | 2.3 |
Y2-112M-2 | 4 | 8.1 | 2880 | 85.0 | 0.88 | 2.2 | 7.5 | 2.3 |
Y2-132S1-2 | 5.5 | 11.0 | 2900 | 86.0 | 0.88 | 2.2 | 7.5 | 2.3 |
Y2-132S2-2 | 7.5 | 14.9 | 2900 | 87.0 | 0.88 | 2.2 | 7.5 | 2.3 |
Y2-160M1-2 | 11 | 21.3 | 2930 | 88.0 | 0.89 | 2.2 | 7.5 | 2.3 |
Y2-160M2-2 | 15 | 28.8 | 2930 | 89.0 | 0.89 | 2.2 | 7.5 | 2.3 |
Y2-160L-2 | 18.5 | 34.7 | 2930 | 90.0 | 0.90 | 2.2 | 7.5 | 2.3 |
Y2-180M-2 | 22 | 41.0 | 2940 | 90.0 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-200L1-2 | 30 | 55.5 | 2950 | 91.2 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-200L2-2 | 37 | 67.9 | 2950 | 92.0 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-225M-2 | 45 | 82.3 | 2960 | 92.3 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-250M-2 | 55 | 100 | 2965 | 92.5 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-280S-2 | 75 | 135 | 2970 | 93.0 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-280M-2 | 90 | 160 | 2970 | 93.8 | 0.91 | 2.0 | 7.5 | 2.3 |
Y2-315S-2 | 110 | 195 | 2975 | 94.0 | 0.91 | 1.8 | 7.1 | 2.2 |
Y2-315M-2 | 132 | 233 | 2975 | 94.5 | 0.91 | 1.8 | 7.1 | 2.2 |
Y2-315L12 | 160 | 279 | 2975 | 94.6 | 0.92 | 1.8 | 7.1 | 2.2 |
Y2-315L2-2 | 200 | 348 | 2975 | 94.8 | 0.92 | 1.8 | 7.1 | 2.2 |
Y2-355M-2 | 250 | 433 | 2980 | 95.3 | 0.92 | 1.8 | 7.1 | 2.2 |
Y2-355L-2 | 315 | 544 | 2980 | 95.6 | 0.92 | 1.8 | 7.1 | 2.2 |
Company infromation |
professional manufacturer with more than 17 years experience |
Alibaba Assessed Gold Supplier and Trade Assurance |
500,000 to 600,000pcs of electric motor were exported annually |
several tests to ensure the quality |
Best production capability,best quality control,best service |
we can be your OEM manufacturer with your authorization of brand. |
Taizhou Qizhen Mechnical and Electrical Technology Co.Ltd is located in the Chinese Yangtze River Delta and in a coastal open city -Taizhou city .We are a professional manufacture of electric motors and water pumps . Our company has formed a perfect production and management system and have passed the CE/CCC/QS/CQC quality cetification.We mainly produce YE2/YE3/YS series three-phase asynchronous motor, YC/JY/YL series single- phase motor, YEJ series electromagnetic braking motor, YVF2 series/ YD series /M series motor and so on. We are also specialized in the production of water pump, such as JET series water pump, QB series water pump, IDB series/CPM series/WQD series/QDX series/ CDL series water pump and so on. With good quality , reasonable price and satisfactory services,our products have been exported to many countries ,which include Brazil, Burma, Lebanon, South Africa, Iran, Kenya, Pakistan, Philippine, Egypt, Britain, Belgium, Ukraine, Tajik ,ect. |

Established in 2014, Taizhou Qizhen Mechanical and Electrical Technology Co., Ltd is a new well-known professional electric motor and pump manufacturer in Zhejiang, which is an enterprise integrating R&D, production, import and export. Our products are widely exported to overy fifty countries and regions such as east Europe, South America, Southeast Asia and Middle East, Africa; Meanwhile, we have kept well touch with dozens of trade companies at home and abroad for cooperation relationship.
Our main products include electric motor type with Y series, Y2 series and YS series of three-Phase asynchronous electric motors, YC series, YL series, JY Series and YY series of single-Phase electric motors, and other derived electric motors, such as YCT series electromagnectrism speed regualating motors, YEJ series electromagnetic-brake motor, YVF2 variable-frequency speed regualating motor, YB2 explosion proof electric motor, YD Double-speed electric motor, YSF/YT series energy-saving induction motor and so on.
With own R&D center, our company has rich technology power, advanced developing measures, highly effective production facilities, overall test conditions and complete modern management system. In the meantime, we have thoroughly carries out IEC standard.
In the aspect of enterprise spirit, our company has advocated management philosophy "Realistic, concrete, effective, innovative ", and always insisted on the principle "People are the basis, Quality is the key to win ". Believing in "First-class enterprise image, design idea and product quality ", our company will pursue greater development for a more brillian future. Also, we are willing to strengthen cooperation and interchange with all customers and be always the creator of every customer, Value with the aim of "Meet the demands of the consumer and go beyond the expection of the customers
