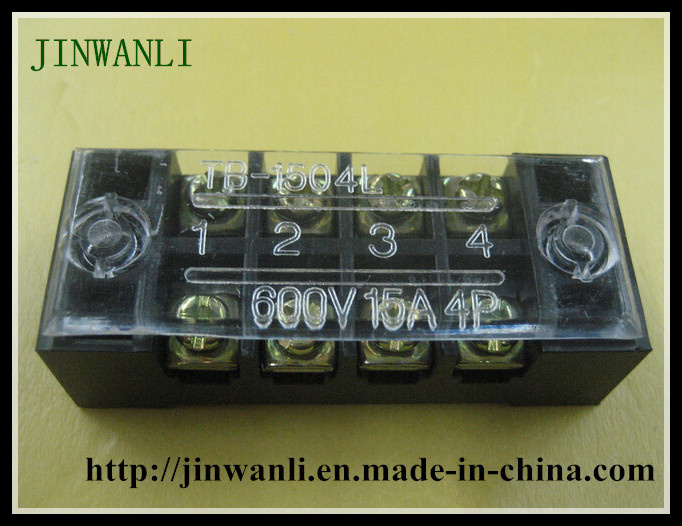

Tb-1504 Panel Mounted Fixed Terminal Block

Name: Tb-1504 Panel Mounted Fixed Terminal Block
Brand: all-electronics-online.com
SKU: 761867605
Availability: InStock
Rating: 4.4 (39 reviews)

Price:	US $ 0.17/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper
Certification:	RoHS, CCC
Customized:	Customized
Condition:	New
Flame Retardant:	High
Application:	Cable
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed

Product Description

Specifications

neral Product Information
Item number:	TB-1504
Rating:	600V, 15A, 4 Poles
Size:	5622.015.5mm (LWH)
Wire Size:	2.0 mm2 / AWG 14
Screw Size:	M3

Molded from UL94-V2 material with excellent flame- and shock-resistance
Sectional or one-piece construction. Easy and Flexible to form multipole assembly.

Protective Cover come with Terminal Blocks for Free.
Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.

TB Series Terminal Block are Panel Mounted Terminal Block , the basic color is black. There are reserved install holes on both sides. Load current can be 15A, 25A, 35A

The products are with a Protective Cover, whose materials are PS, this makes the products are durable. Marker Strip is not required, it is mold printed.

Data sheet

Product specification	Rated current (A)	Pole number(A)	Mounting size (mm)	Length/Breadth/Height (mm)	Crimping terminal (mm)
TB-1503	15	3	36	47/22/15.5	M3
TB-1504	15	4	45	56/22/15.5	M3
TB-1505	15	5	54	65/22/15.5	M3
TB-1506	15	6	63	74/22/15.5	M3
TB-1510	15	10	99	110/22/15.5	M3
TB-1512	15	12	153	164/22/15.5	M3
TB-2503	25	3	45	56/30/17	M4
TB-2504	25	4	57	68/30/17	M4
TB-2505	25	5	69	80/30/17	M4
TB-2506	25	6	81	92/30/17	M4
TB-2510	25	10	99	110/22/15.5	M4
TB-2512	25	12	117	128/22/15.5	M4
TB-4503	45	3	58,5	89.5/68/21	M5
TB-4504	45	4	75	86/38/21	M5
TB-4505	45	5	91.5	102.5/38/21	M5
TB-4506	45	6	108	119/38/21	M5
TB-4510	45	10	174	185/38/21	M5
TB-4512	45	12	207	218/38/21	M5
TC-603	60	3	60.5	84.5/54.5/31.5	M6
TC-604	60	4	82.5	113/54.5/31.5	M6
TC-605	60	5	118	129/54.5/31.5	M6
TBC-1003	100	2	75.5	86.5/43.5/35	M6
TBC-1004	100	4	96	108/43.5/35	M6
TBC-1006	100	6	140	153/43.5/35	M6
