Tb-1506 Electrical Meter Terminal Blocks

Name: Tb-1506 Electrical Meter Terminal Blocks
Brand: all-electronics-online.com
SKU: 756364035
Availability: InStock
Rating: 4.8 (36 reviews)

Price:	US $ 0.15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Tb-1506
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Wer Supply
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed

Product Description

Specification
1.Certificates: EN60947-1, GB14048.7 and JB/T9659.26
TB, TC, TBC, TA plastic terminal block

2.Wire Section: 0.5-1.5mm2, 0.5-2.5mm2, 0.5-4mm2 Rated Current/ Voltage: 15A/600V, 25A/600V, 45A/600V, 10A/660V.

3.Current: 15A, 25A, 35A, 45A, 60A, 100A
Poles: 3, 4, 5, 6, 10, 12

4.Housing Material: Polyphenyl or polycarbonate

5.Contact: Copper pieces, tin plated brass screws
Cover: Reinforced plastic, ensures heat-resistance, good toughness and no crack.

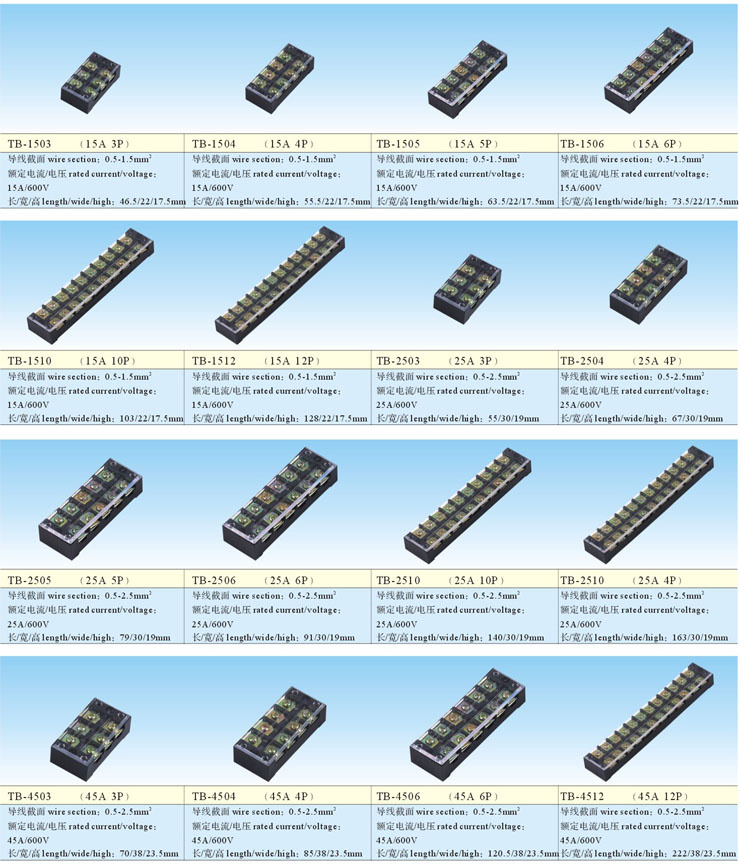

Data sheet

Product specification	Rated current (A)	Pole number(A)	Mounting size (mm)	Length/Breadth/Height (mm)	Crimping terminal (mm)
TB-1503	15	3	36	47/22/15.5	M3
TB-1504	15	4	45	56/22/15.5	M3
TB-1505	15	5	54	65/22/15.5	M3
TB-1506	15	6	63	74/22/15.5	M3
TB-1510	15	10	99	110/22/15.5	M3
TB-1512	15	12	153	164/22/15.5	M3
TB-2503	25	3	45	56/30/17	M4
TB-2504	25	4	57	68/30/17	M4
TB-2505	25	5	69	80/30/17	M4
TB-2506	25	6	81	92/30/17	M4
TB-2510	25	10	99	110/22/15.5	M4
TB-2512	25	12	117	128/22/15.5	M4
TB-4503	45	3	58,5	89.5/68/21	M5
TB-4504	45	4	75	86/38/21	M5
TB-4505	45	5	91.5	102.5/38/21	M5
TB-4506	45	6	108	119/38/21	M5
TB-4510	45	10	174	185/38/21	M5
TB-4512	45	12	207	218/38/21	M5
TC-603	60	3	60.5	84.5/54.5/31.5	M6
TC-604	60	4	82.5	113/54.5/31.5	M6
TC-605	60	5	118	129/54.5/31.5	M6
TBC-1003	100	2	75.5	86.5/43.5/35	M6
TBC-1004	100	4	96	108/43.5/35	M6
TBC-1006	100	6	140	153/43.5/35	M6
