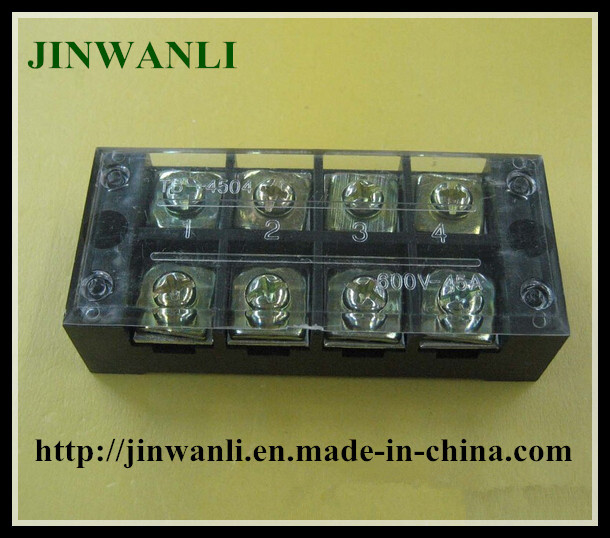

Tb Series Binding Post Speaker Terminals

Tb Series Binding Post Speaker Terminals
Price: US $ 0.17/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Wer Supply
Environmental Protection: Resistance to Environmental
Connection Mode: Threaded Connection
Shape: Rectangle
Contact Termination Form: Welding Connection

Product Description

It in conformity with standards such as EN60947-1, GB14048.7 and JB/T9659.26

TB, TC, TBC, TA plastic terminal block
Main Model: TB-1503, TB-1504, TB-1505, TB-1506, TB-1510, TB-1512, TB-2503, TB-2504, TB-2505, TB-2506, TB-2510, TB-2512, TB-4503, TB-4504, TB-4505, TB-4506, TB-4512, TB-60A/3P, TB-60A/4P, TB-100A/3P/4P.

Wire Section: 0.5-1.5mm2, 0.5-2.5mm2, 0.5-4mm2
Rated Current/ Voltage: 15A/600V, 25A/600V, 45A/600V, 10A/660V.

Current: 15A, 25A, 35A, 45A, 60A, 100A
Poles: 3, 4, 5, 6, 10, 12

Housing Material: Polyphenyl or polycarbonate
Contact: Copper pieces, tin plated brass screws
Cover: Reinforced plastic, ensures heat-resistance, good toughness and no crack

Rated voltage:600V
Item No.TB-1503TB-1504TB-1506TB-1512TB-2503TB-2504TB-2506TB-2512
Electrical Specifications
Rated Volt [V]600V
Rated Current [A]15A25A
Wire Size [mm2]2.0 mm26.0 mm2
Wire Size [AWG]AWG 14AWG 10
Materials
Insulator MaterialsPC
ColorBlack (White, Blue, Red, Brown, ...)
Flame Retarded GradeUL94V-2 (UL94V-0)
Operating Temperature [ºC]-40ºC+110ºC (Max: +220ºC)
ConductorBrass, Nickel Plated (Copper, Tin Plated)
DimensionsProtective Cover come with terminal blocks for free.  No Marker Strip needed. (Molded Printed.)
Total Length L [mm]46.555.573.5128.550.561.582.5147.5
Ref. Length L1 [mm]36.545.563.5118.040.051.072.0136.0
Gap A [mm]7.08.0
Pitch B [mm]9.010.5
Width W [mm]22.028.0
Height H [mm]17.519.0
Screw (C) (Steel, Zinc Plated)M3M4
Rated Torque [N-m]0.51.2
Rated Torque [in-lb]4.410.6
Poles3461234612
Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
