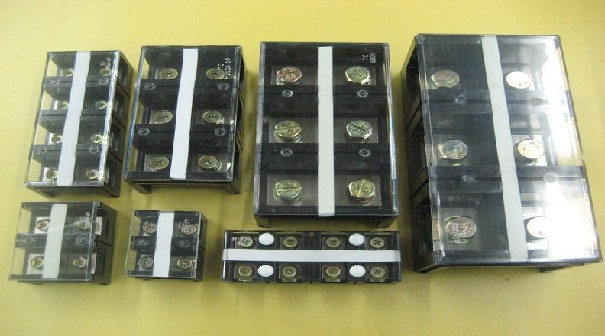

Tb Series Fixed Terminal Block

Name: Tb Series Fixed Terminal Block
Brand: all-electronics-online.com
SKU: 714955585
Availability: InStock
Rating: 4.4 (120 reviews)

Price:	US $ 0.4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Cable
Environmental Protection:	Resistance to Environmental
Connection Mode:	Push-Pull Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed

Product Description

Specifications

1. High pressure resistant, long sever times
2. The lowest price
3.20year production experence

The series of TC Terminals adopt plate-type, screw-clamping, low base, sealed and integral construction,

Rating Voltage 600V, Rating Current:
60A, 100A, 150A, 200A, 300A, 400A, 500A, 600A, respectively eight specifications. Cross section 10-300mm2, the product has the features of simple constrution, convenient to install, reliable.

Can use for large current wiring connection for all kinds of electrical appliances.

Product specification	Rated current (A)	Pole number(A)	Mounting size (mm)	Length/Breadth/Height (mm)	Crimping terminal (mm)
TB-1503	15	3	36	47/22/15.5	M3
TB-1504	15	4	45	56/22/15.5	M3
TB-1505	15	5	54	65/22/15.5	M3
TB-1506	15	6	63	74/22/15.5	M3
TB-1510	15	10	99	110/22/15.5	M3
TB-1512	15	12	153	164/22/15.5	M3
TB-2503	25	3	45	56/30/17	M4
TB-2504	25	4	57	68/30/17	M4
TB-2505	25	5	69	80/30/17	M4
TB-2506	25	6	81	92/30/17	M4
TB-2510	25	10	99	110/22/15.5	M4
TB-2512	25	12	117	128/22/15.5	M4
TB-4503	45	3	58,5	89.5/68/21	M5
TB-4504	45	4	75	86/38/21	M5
TB-4505	45	5	91.5	102.5/38/21	M5
TB-4506	45	6	108	119/38/21	M5
TB-4510	45	10	174	185/38/21	M5
TB-4512	45	12	207	218/38/21	M5
TC-603	60	3	60.5	84.5/54.5/31.5	M6
TC-604	60	4	82.5	113/54.5/31.5	M6
TC-605	60	5	118	129/54.5/31.5	M6
TBC-1003	100	2	75.5	86.5/43.5/35	M6
TBC-1004	100	4	96	108/43.5/35	M6
TBC-1006	100	6	140	153/43.5/35	M6

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
