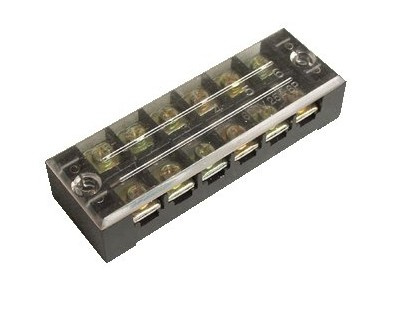

TB Terminal Block TB2506(plastic terminal block)

Name: TB Terminal Block TB2506(plastic terminal block)
Brand: all-electronics-online.com
SKU: 714954225
Availability: InStock
Rating: 4.3 (115 reviews)

Price:	US $ 0.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper
Certification:	RoHS, ISO, SGS
Flame Retardant:	High
Customized:	Customized
Condition:	New
Application:	Cable
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Contact Termination Form:	Screws Fixed

Product Description

Main Model: TB-1503, TB-1504, TB-1505, TB-1506, TB-1510, TB-1512, TB-2503, TB-2504, TB-2505, TB-2506, TB-2510, TB-2512, TB-4503

They are in conformity with standards such as EN60947-1, GB14048.7 and JB/T9659.26

Wire Section: 0.5-1.5mm2, 0.5-2.5mm2, 0.5-4mm2 Rated Current/ Voltage: 15A/600V, 25A/600V, 45A/600V, 10A/660V.

Current: 15A, 25A, 35A, 45A, 60A, 100A
Poles: 3, 4, 5, 6, 10, 12
Housing Material: Polyphenyl or polycarbonate

Contact: Copper pieces, tin plated brass screws

Cover: Reinforced plastic, ensures heat-resistance, good toughness and no crack
Rated voltage: 600V

Item No.	TB-2503L	TB-2504L	TB-2506L	TB-2512L	TB-3503	TB-3504	TB-3506	TB-3512
Electrical Specifications
Rated Volt [V]	600V
Rated Current [A]	25A				35A
Wire Size [mm2]	6.0 mm2				10.0 mm2
Wire Size [AWG]	AWG 10				AWG 8
Materials
Insulator Materials	PC
Color	Black (White, Blue, Red, Brown, ...)
Flame Retarded Grade	UL94V-2 (UL94V-0)
Operating Temperature [ºC]	-40ºC~+110ºC (Max: +220ºC)
Conductor	Brass, Nickel Plated (Copper, Tin Plated)
Dimensions	Protective Cover come with terminal blocks for free. No Marker Strip needed. (Molded Printed.)
Total Length L [mm]	56.0	68.0	92.0	164.0	56.0	68.0	92.0	164.0
Ref. Length L1 [mm]	45.0	57.0	81.0	153.0	45.0	57.0	81.0	153.0
Gap A [mm]	10.0
Pitch B [mm]	12.0
Width W [mm]	30.0
Height H [mm]	19.5
Screw (C) (Steel, Zinc Plated)	M4
Rated Torque [N-m]	1.2
Rated Torque [in-lb]	10.6
Poles	3	4	6	12	3	4	6	12

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
