Tdgc\Tsgc Series Contact Voltage Regulator

$Tdgc\Tsgc Series Contact Voltage Regulator$

Price:	US $ 5.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSGC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	0.5kVA---45kVA
Input Voltage:	220V/380V
Output Voltage:	0-250V/ 0-430V
Efficiency:	95%
Current Type:	AC
Phase:	Three Phase
Frequency:	Intermediate Frequency
Usage:	Tsgc
Brand:	Powlik

Product Description

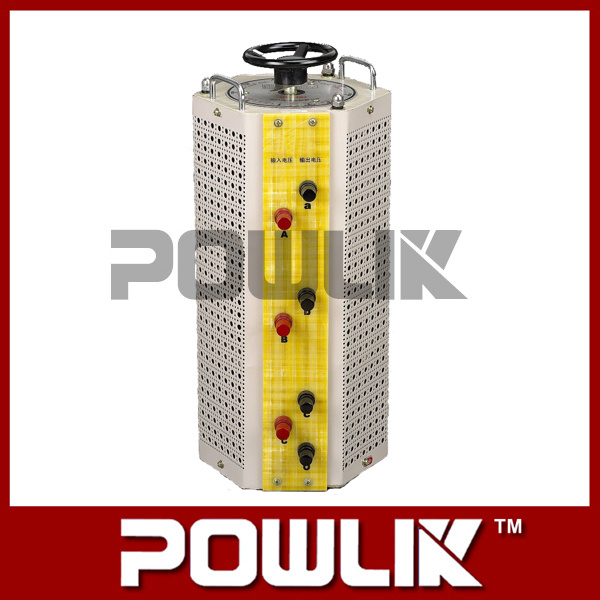

Tdgc\Tsgc Series Contact Voltage Regulator

Principle & Characteristics
The voltage regulator is in the structure of adjustable compensator, it wind a coil on the loop core, thee brush coincide with the rubbed surface of the coil closely under the spring pressure effect, rotate
The revolving shaft to drive the brush stand, and make the brush move along the coil surf ace to change the contact position of the brush, that means change the turns rate of primary and secondary coil, which
Can make the output voltage stepless adjusted within the adjustment range. It has the advantage of no waveform distortion, small volume, less weight, high efficiency, simple and reliable operation, un for
Long period and so on.

Scope of Application
It is widely used in industry (as chemical industry, metallurgy, instruments, meters, electromechanical manufacturing, light industry etc. ), scientific experiment, public facilities and domestic electric appliance to fulfill voltage regulating, temperature control, speed regulating, light adjusting, power control and so on, it is an ideal AC regulated power source.

Specification & Capacity	Max Output Capacity KVA	Phase	Input Voltage	Output Voltage	Max Output Current	Overall Size (WxDxL)mm	Weight KG
Specification & Capacity	Max Output Capacity KVA	Phase	Input Voltage	Output Voltage	Max Output Current	Overall Size (WxDxL)mm	Weight KG
TDGC-0.5	0.5	1	220V	0-250V	2	130x150x175	4.1
TDGC-1	1				4	185x200x215	6.1
TDGC-2	2				8	230x230x215	9.2
TDGC-3	3				12	265x270x215	13
TDGC-5	5				20	345x390x260	26.2
TDGC-7	7				28	345x390x260	28.5
TDGC-10	10				40	345x390x420	48.5
TDGC-15	15				60	345x430x570	71.5
TDGC-20	20				80	345x440x570	76
TDGC-30	30				120	345x440x1090	140
TSGC-3	3	3	380V	0-430V	4	185x205x510	21.3
TSGC-6	6				8	235x240x510	32.2
TSGC-9	9				12	265x270x510	42.5
TSGC-15	15				20	345x430x570	68
TSGC-20	20				27	345x430x570	76.5
TSGC-30	30				40	345x440x1050	136
TSGC-45	45				60	345x450x1050	158
