Technical Characteristics of Current Transformers

Name: Technical Characteristics of Current Transformers
Brand: all-electronics-online.com
SKU: 741235095
Availability: InStock
Rating: 4.3 (68 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	300/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSQ-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Current Transformer
Maximum Voltage:	0.72kv
Primary Current:	5A-3000A
Rated Frequency:	50/60Hz
Application:	Electronic
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer

Product Description

This series of CT can be applied to test, control. Display and record the running of the electrical equipment, and to protect the equipment against the damage. In the AC circuit with the raled voltage value below 720V and the frequency of 50-60Hz. The product can be also applied to form a complete of mine transformer.
The products comply with VDE 0414, BS7626 and IEC 44-1 standard.

SPECIFICAIONS
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage, (Um) 0.72Kv AC.
Continuous overload, (ID) 1.2In
Operating temperature -10C~50C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A

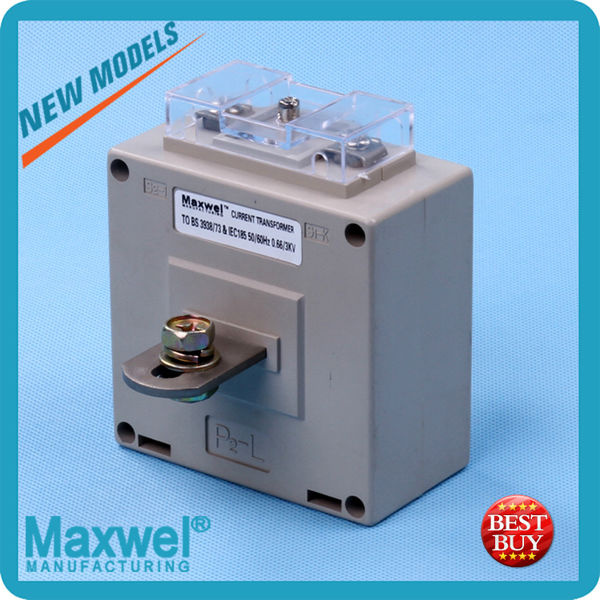

Window type current transformer MSQ-100
CT IEC 44-1 standard
Quality warranty
Best prices.
Competive prices!

Bar: 80 x 30mm/ 100 x 10mm
Conductor: Φ 60mm

Type	Rated current (A)	Rated power (VA)		Weight (kg)
Type	Rated current (A)	Class: 0.5	Class: 1	Weight (kg)
MSQ-100	1500/5	15	15	0.8
	1600/5	15	15	0.8
	2000/5	15	15	0.94
	2250/5	15	15	0.98
	2500/5	15	15	1.1
	3000/5	15	15	1.16
