Teflon Wire UL1180 PTFE Insulated Wire with UL Certificate

Name: Teflon Wire UL1180 PTFE Insulated Wire with UL Certificate
Brand: all-electronics-online.com
SKU: 830235725
Availability: InStock
Rating: 4.5 (68 reviews)

Price:	US $ 0.1-1.2/Meter
Min Order:	6100/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL1180
Rated Voltage:	300V
Rated Temp:	200c
Color:	White, Black, Red, Brown, Yellow, Blue etc
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Certification:	RoHS
Application:	Internal Wire

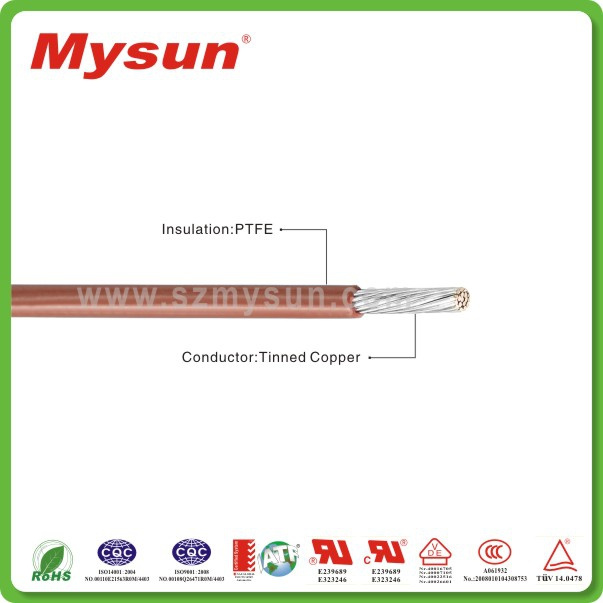

Insulation Material:	PTFE
Brand:	Mysun

Product Description

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
32	7/0.08	0.24	0.33	0.90	563	610/2000
30	7/0.10	0.30	0.33	0.96	361	610/2000
28	7/0.12	0.36	0.33	1.02	227	610/2000
26	7/0.16	0.48	0.33	1.14	143	610/2000
24	7/0.20	0.60	0.33	1.23	89.3	610/2000
22	19/0.15	0.75	0.33	1.41	56.4	305/1000
20	19/0.185	0.93	0.33	1.59	35.2	305/1000
18	19/0.235	1.17	0.35	1.87	22.2	305/1000
16	19/0.30	1.50	0.35	2.20	14	305/1000
14	19/0.37	1.85	0.35	2.55	8.78	305/1000
12	19/0.47	2.35	0.35	3.05	5.53	305/1000
10	37/0.43	3.00	0.35	3.70	3.476	305/1000

Service
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
