| Prod Model: |
rf cable assemblies |
| Name: |
Telecom Cable Assembly RF Feeder Cable |
| Conductor: |
Copper |
| Insulation: |
PE |
| Jacket: |
PE |
| Impedance: |
50 Ohm |
| Application: |
Coaxial Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PE |
| Certification: |
CCC |
| Type: |
Coaxial Cable |
| Model: |
Coaxial Cable |
| Brand: |
Jiukai |
Product Description

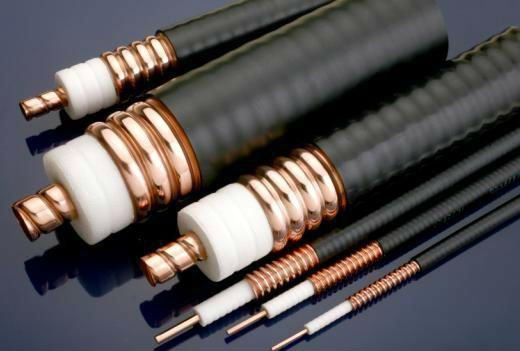

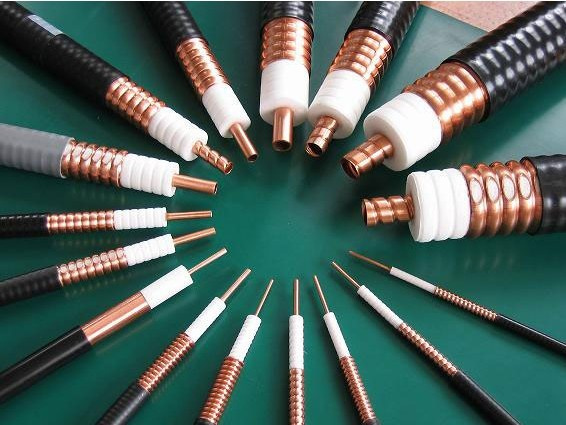

Telecom Cable assembly rf feeder cable
Options for material (leaky feeder coaxial cable)
1) Inner conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: unbonded AP, Bonded AP, APA, Bonded APA available;
3) Braiding material: Al-mg, CCA,Bare Copper and Tinned Copper wire available;
4) Braiding wire diameter: 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, 120,128 ,144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) Jacket material: PVC, PE Flame retardant,UV, Rohs, available.
8) Note: Customized Specifications are also welcome
What is leaky feeder coaxial cable ?
Coaxial Cable (often referred to as coax), is an electrical cable made up of a shielded
central core surrounded by an insulating spacer is intern shielded by an outer cylindrical conductor.
The cable tends to be protected by an outer rubber or plastic jacket. The inner conductor,
known as the center core, and the outer cylindrical conductor, known as the metallic shield,
share the same geometric axis, hence the name, coaxial cable.
Used primarily as a means of conducting electronic signals such as television, radio and Internet,
coaxial cables provide a high degree of protection against electromagnetic interference and attenuation.
Coax cable is designed to guide electronic signals with low emission along the length of the cable.

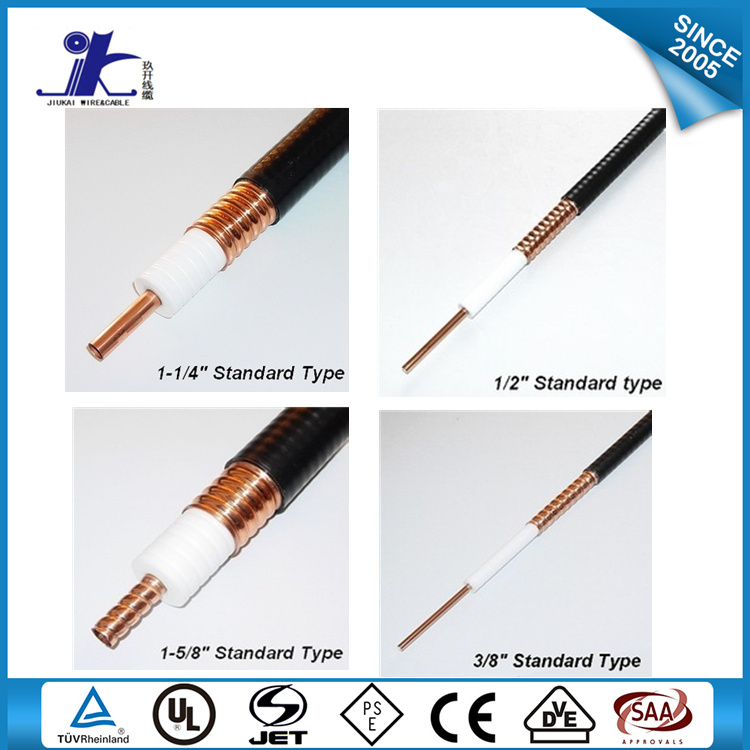

| Type | Impedance | Diameter of Conductor | Jacket | Weight |
| (Ohms) | Inner(mm) | Outer(mm) | Thickness(mm) | Diameter(mm) | (kg/km) |
| 1-5/8" | 50 | 17.3 | 46.5 | 1.75 | 50 | 1310
1-1/4 |
| 1-1/4" | 50 | 13.1 | 35.8 | 1.8 | 39.4 | 980 |
| 7/8" | 50 | 9.05 | 24.9 | 1.3 | 27.5 | 530 |
| 5/8" | 50 | 7.05 | 19.8 | 1.2 | 22.2 | 400 |
| 1/2" | 50 | 4.8 | 13.8 | 1 | 15.8 | 240 |
| 3/8" | 50 | 3.15 | 9.53 | 0.85 | 11.2 | 135 |
| 7/8" S | 50 | 9.42 | 24.9 | 1.05 | 27.5 | 430 |
| 1/2" S | 50 | 3.6 | 12.2 | 0.7 | 13.2 | 120 |
| 1/4" S | 50 | 1.91 | 6.4 | 0.6 | 7.4 | 80 |
Packaging & delivery
| Packaging Details: | 1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll. |
| | 2. According to customer requirement. |
| Shipping Details: | 7-15 days after payment. |
Certification
Company Information
Shanghai Jiukai Wire & Cable Co., Ltd is a national high and new tech enterprise. We consistently dedicate to the R&D, production and sales of wires and cables. We are professional HV&LV power cables, LV electrical wires and security cables in China. We introduce the most advanced automatic production lines, first-class testing & inspection equipments and laboratory for cable security test and application test. We have the technical team of local & overseas experts in cable industry. Strict quality control and safety policy ensures our products meet and exceed the GB industry standards. Our Cables are well sold to Americas, Europe, Middle-east, Southeast Asia and Africa. We establish the strategic partnership with many global electronic enterprises. We mainly produce nearly 10 categories (thousands of kinds) cables, such as audio & video cable, elevator cable, data cables, computer cable, CAT5E LAN cable , CAT 6 LAN cable, solar PV cable, UL wire, flexible cable and special cable. All our cables has already got the certificates of national or international professional testing organizations,such as China CCC certificate , US UL certificate , European Union CE Certificate , German TUV, Quality system certification certificate ISO9001:2000. And we get the honors of "Re-contract And Trustworthy Enterprise ","Measurement Qualified Enterprises" , "China Top Brand" and "China Cable Manufacturer TOP 100 ".
Why Choose Us
We are a professional wire and cable manufacturer
Quality control: Our defective products rate is 0.01%
Economically priced, exquisitely made
Adequate supply capacity, punctual delivery time
Best of sales service are provided
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
