| Prod Model: |
Queen Star Online UPS |
| Input Voltage: |
176~276VAC/304~478VAC |
| Input Frequency: |
46~54Hz/56~64Hz |
| Input Power Factor: |
0.99 |
| Output Voltage: |
220/230/240VAC |
| Output Frequncy: |
50 / 60Hz |
| Output Power Factor: |
0.8 |
| Transfer Time: |
0ms |
| Capacity: |
6-20kVA |
| Communication: |
Snmp, RS-232, USB+Intelligent Slot |
| Net Weight: |
30-68(Kg) |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Application: |
Office, Hospital, Server, etc |
| Brand: |
Upsen |
Product Description
Telecom system Backups Online UPS high adaptability compact design 6K-20Kva (1ph in/1ph out,3ph in/3ph out)
Product Description

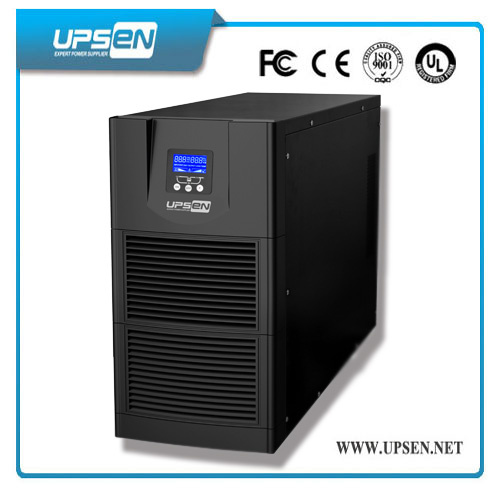

Introduction:Queen Star Series Online UPS 6K-20Kva, is of fully of advanced DSP Online HF UPS.
It has high adaptability, performance, compact design and less batteries to reduce your space and installation cost.
Perfect Application
Network, data centre, servers and workstations, control system, communication system, Telecom system, power station,
security system, hospital, school, home and office etc.
Main Features
1.True online double conversion technology, Pure Sine Wave Output
2.0.8 Output Power Factor, Digital LCD Screen, Zero transfer time
3.DSP Technology, compact design 4.Active input power factor correction (PFC)
5.Protection against all types of power problems
6.Wide range of input voltage and frequency
7.Active Load Management, cold start function
8.Sufficient Expansion Slots for USB,AS400,CMC monitoring,SNMP,RS485 and EMD environment monitoring

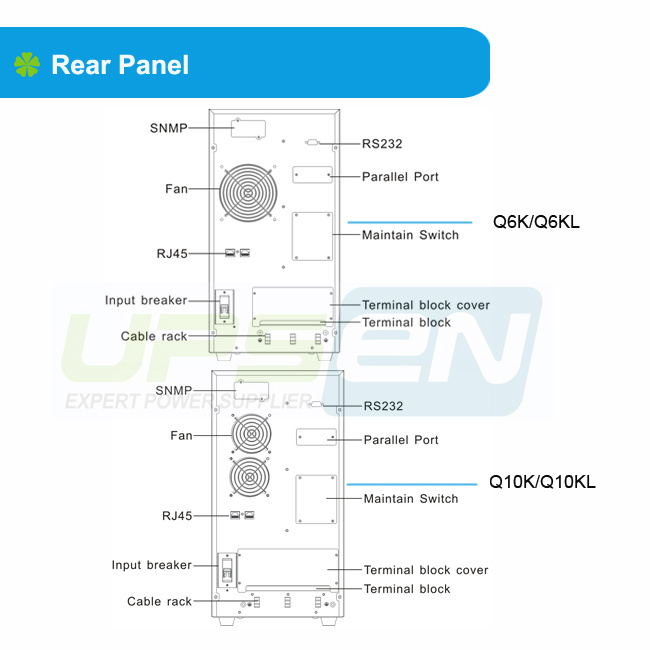

9.Equipped with maintenance bypass switch
10.Generator Supportable
11.Sealed lead acid, maintenance free battery
Technical Specification
Model | Q6K | Q6KL | Q10K | Q10KL | 31Q10KL | 31Q15KL | 31Q20KL |
Capacity | 6KVA/4800W | 10KVA/8000W | 15KVA/12KW | 20KVA/16KW |
Input | Nominal Voltage | 220/230/240Vac | 380/400/415Vac |
Voltage Range | 176~276Vac (1P2W+G) | 304~478Vac (3P4W+G) |
Current | 31A (max) | 50A (max) | 50A (max) | 75A (max) | 100A (max) |
Frequency | 46~54Hz/56~64Hz |
Power Factor | ≥0.99 |
Output | Voltage | 220/230/240± 2%Vac (1P2W+G) |
Frequency | 50/60Hz(adjustable) 50/60Hz± 5% (Line mode) 50/60Hz ± 0.05Hz ( Battery mode) |
|
|
Current | 27.3A | 45A | 68A | 91A |
Power Factor | 0.8lag |
Waveform | Pure Sine Wave |
Waveform Distortion | Line load <2% | Line load <3% |
Back-up Time | Full Load | ≥7′ | Depends on external batteries bank's Capacity | ≥5′ | Depends on external batteries bank's Capacity |
Half Load | ≥20′ | ≥13′ |
Battery Nominal Voltage | 192/240Vdc |
Transfer Time | 0ms |
Overload Capacity | >105% 1min, >120% 30s transfer to bypass, shut down in 1min |
Communication | SNMP,RS-232,USB+Intelligent Slot |
Operating Environment | Temperature | 0C~40ºC |
Humidity | 15%~90% |
Dimension | Width (mm) | 260 | 260 | 260 | 260 | 260 |
Depth (mm) | 560 | 533 | 560 | 533 | 560 |
Height (mm) | 717 | 501 | 717 | 501 | 717 |
Net Weight(Kg) | 68 | 18 | 70 | 20 | 28 | 30 | 30 |
*Specification are subject to change without prior notice |
UPSEN Competitive Advantages1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
Please contact us freely with any question,We'll give you the suitable solution. Looking forward to cooperating with you.
