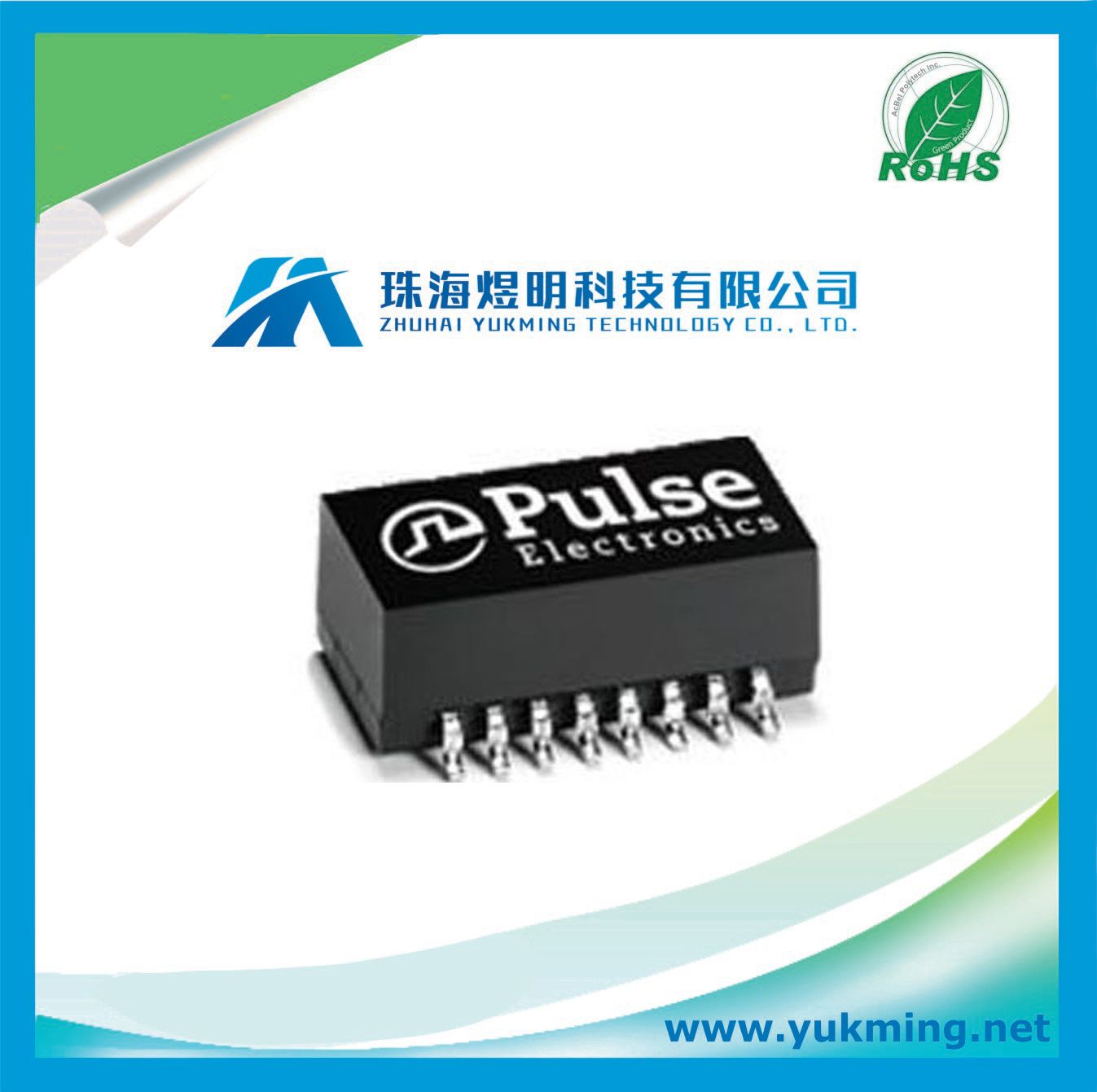

Telecom Transformer IC H1102nl Integrated Circuit

Name: Telecom Transformer IC H1102nl Integrated Circuit
Brand: all-electronics-online.com
SKU: 796853005
Availability: InStock
Rating: 4.9 (146 reviews)

Price:	US $ 0.05-2.0/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	H1102NL

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

Telecom Transformer

DESCRIPTION
Telecom Transformer 1:1/1:1 0.65Ohm Prim. DCR 0.65Ohm Sec. DCR 16Term. Gull Wing SMD

This H1102NL telecom transformer manufactured by Pulse will speed up switching speeds in telecommunication systems. This telecom transformer has a minimum operating temperature of 0 °C and a maximum of 70 °C. It has 16 terminals. This device comes in tube packaging. It has a turn ratio of 1:1/1:1. It also has a 10/100base-t single port transformer. The maximum DCR on the primary side is 0.65 Ohm, while its 0.65 Ohm on the secondary side. This product is 12.7 mm long, 5.99 mm tall and 9.65 mm deep.

Specifications
EU RoHS Compliant
Transformer Type 10/100Base-T Transformer
Turns Ratio 1:1/1:1
Maximum DCR Primary Side (Ohm) 0.65
Maximum DCR Secondary Side (Ohm) 0.65
High Potential 1500Vrms
Mounting Surface Mount
Lead Style Gull Wing
Number of Terminals 16
Maximum OCL Inductance (mH) 0.35(Min)
Maximum Insertion Loss (dB) [email protected] to 100MHz
Minimum Return Loss (dB) -10@60MHz to 80MHz
Minimum Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 70
Packaging Tube
Product Length (mm) 12.7
Product Height (mm) 5.99
Product Depth (mm) 9.65

RoHS peak reflow temperature rating: 245°C
Meets IEEE 802.3 specification
Compact footprint for use in the most space-restrictive applications
