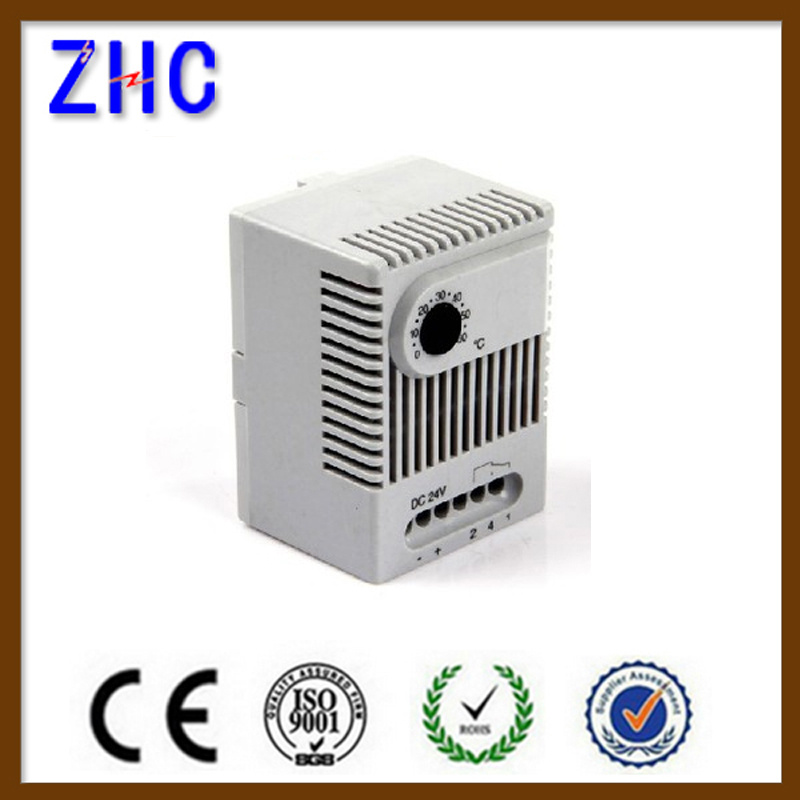

Temperature Controller Et011 24VDC Bimetal Electronic Heating and Cooling Temperature Sensor

Name: Temperature Controller Et011 24VDC Bimetal Electronic Heating and Cooling Temperature Sensor
Brand: all-electronics-online.com
SKU: 794232045
Availability: InStock
Rating: 4.6 (107 reviews)

Price:	US $ 2-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ET011
Switch Temperature Difference:	Approx.3k
Sensor Element:	PTC
Contact Type:	Change-Over
Contact Resistance:	<10mΩ
Service Life:	>100,000 Cycles
EMC:	Acc.to En 55014-1-2,En 61000-3-2,En 61000-3-3
Mounting:	Clip for 35mm DIN Rail, En60715 or for Exit Filter
Casing:	Plastic According to UL94 V-0, Light Grey
Weight:	Approx.80g
Fitting Position:	Variable

Product Description

temperature controller ET011 24VDC bimetal electronic heating and cooling temperature sensor

Usage of product

Electronic thermostat for regulating high performance DC 24V equipment. Heating or cooling appliances as well as signal devices can be switched via the potential free change-over contact. In comparision to mechanical thermostats,the ET 011 has a low hysteresis making the switching point and setting accuracy more precise.

Product advantage

1. High DC breaking capacity
2. Low hysteresis
3. Adjustable temperature
4. Change-over contact
5. Clip fixing

Technical Data

Switch temperature difference	Approx.3K
Sensor element	PTC
Contact type	Change-over
Contact resistance	<10mΩ
Service life	>100,000 cycles
Max. Switching capacity	28VDC,16A
Color	white
EMC	acc.to EN 55014-1-2,EN 61000-3-2,EN 61000-3-3
Connection	5-pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² strande wire(with wire end ferrule)1.5mm²
Mounting	Clip for 35mm DIN rail, EN60715 or for exit filter EF 118 series
Casing	Plastic according to UL94 V-0, light grey

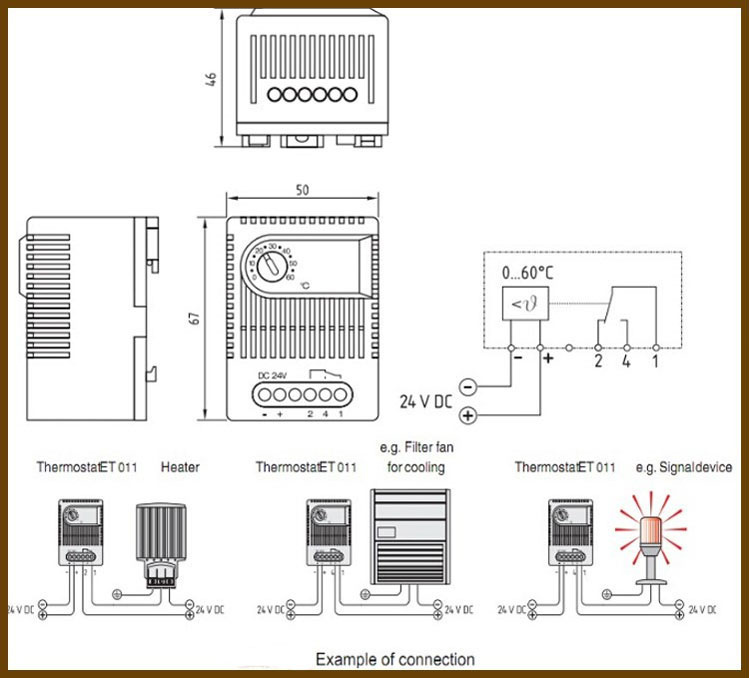

Dimensions	675046mm
Weight	approx.80g
Fitting position	Variable
Operating/Storage temperature	0 to 60 °C (32 to +140°F)/-45 to 80°C(-49 to +176°F)
Protection type	IP20

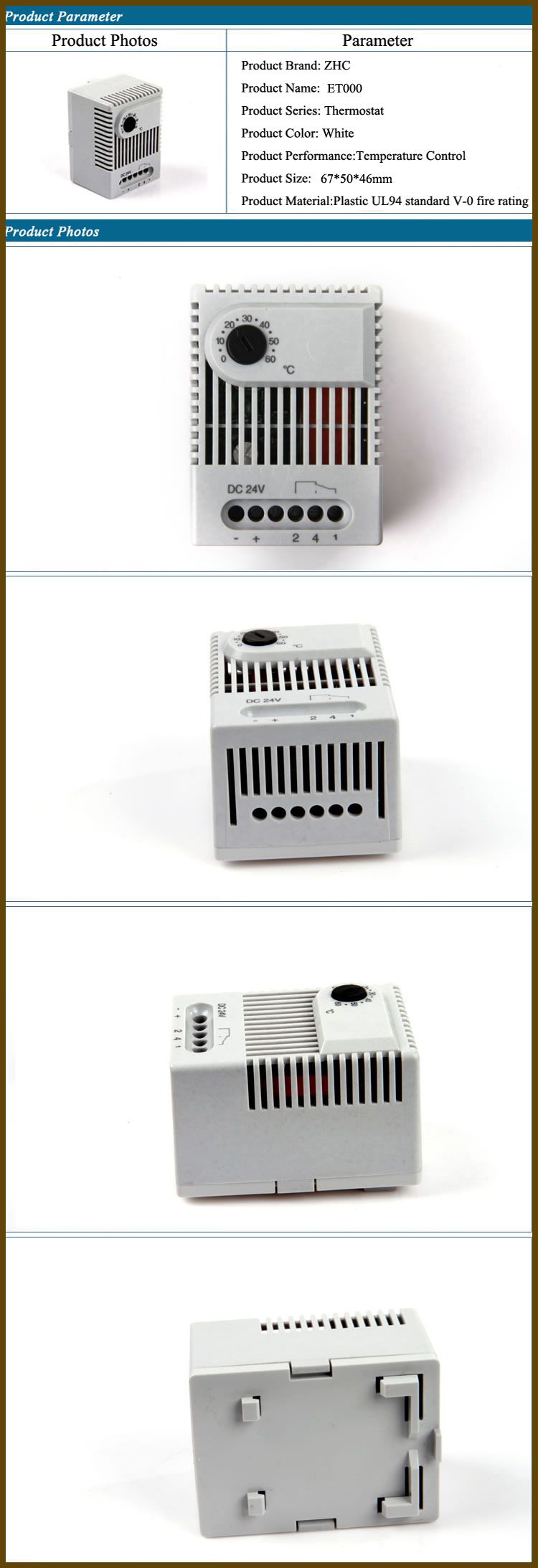

Product show

Product details

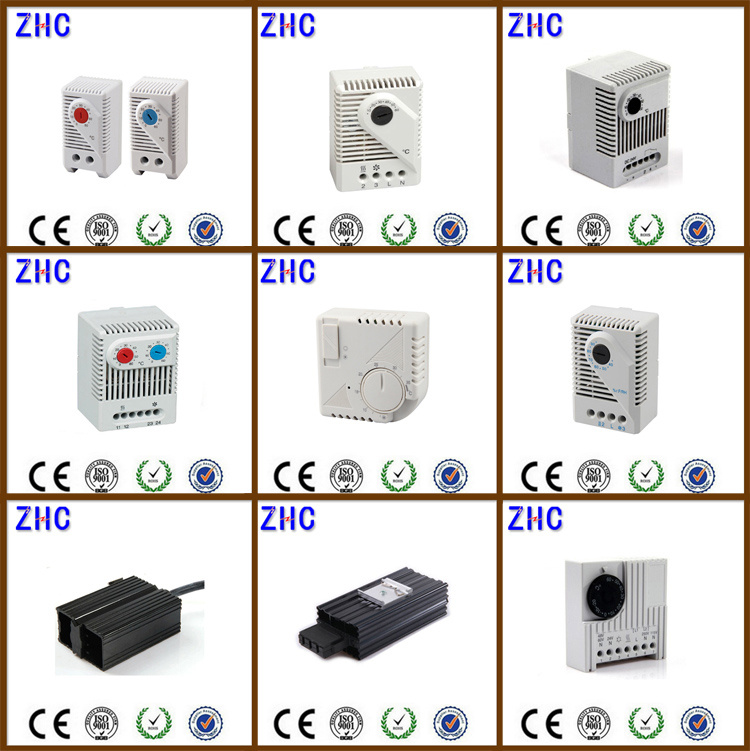

Similar product
