| Prod Model: |
HW-MS05 |
| Name: |
Microwave Induction Module Hw-Ms05 |
| Layer: |
Single Layer PCB |
| Input Voltage: |
DC5V-24V Default |
| Output Voltage: |
3V |
| Trigger Way: |
Repeat(Default) |
| Delay Time: |
2s(Default) |
| Size: |
35*18*4mm |
| Distance: |
10m(Default)M |
| PCB: |
Outline with Green Oil |
| New Product: |
Offer Sample |
| Metal Coating: |
Tin |
| Mode Of Production: |
SMT |
| Layers: |
Single-Layer |
| Base Material: |
FR-4 |
| Customized: |
Customized |
| Condition: |
New |
| Certification: |
Ce |
Product Description
Temperature Sensor Usage led motion sensor module for led strip light HW-MS05
Microwave radar sensor body sensor switch module
Welcome OEM module!
1.Detail:

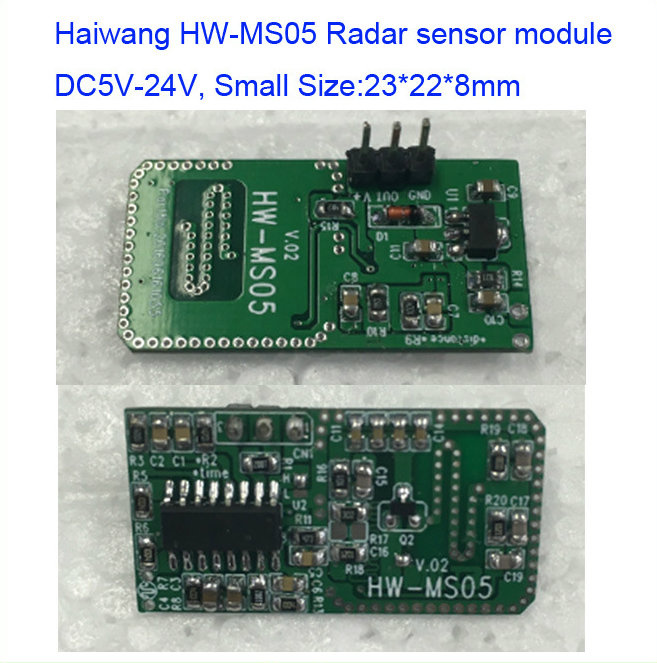

Mini Size HW - MS05 is our company newly developed MS series in a single PCB microwave sensor module.The product is particularly suited to ultra-thin design of intelligent household appliances, security products, lighting products and other electronics.
Single PCB module,simplifies the making process, economize the make time and cost, and reduce the product of bad hidden trouble, improve the quality. so, the products have demonstrated the superior market competitiveness.
We can custom the module as your request,welcome to ask me.OEM is highly welcomed.
2.Technical parameters:
| NO. | Items of parameter | Specifications of parameter | remarks |
| 01 | POwer Supply.input range | 5V ~ 24VDC;3.7V~24VDC(by custom) | Custom-able |
| 02 | Output voltage | 3V (Default) | stabili-volt inside,Custom-able:Vcc=+5.0V or +3.3V |
| 03 | operating current | Static Iin≤2mA | basic standard |
| 05 | Sensor distance | Default:10m(indoor test) | adjustable |
| 06 | Delay-time for output | Default:2sec. | adjustable |
| 07 | frequency range | FT=2.5GHz-5.8GHz | design by standards |
| 08 | Outline size | single-PCB:35*18*4mm | PCB surface green oil |
3. Warm note:
1.Strictly prohibited to operate in charge to avoid any mistake, such as burn out circuit or get an electric shock.
2.Avoid installed in the rain, to prevent damage or affect the lifetime.
3.Better install far away from the place of the magnetic field or the conductor to avoid wrong actions
