| Prod Model: |
T-930 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Temperature: |
-40~ 85 Degrees Celsius |
| Ethernet: |
1 |
| Mount: |
Standard Rail or Bolts |
| Power: |
AC 85-265V or DC 9-36V |
| Dimension: |
169X134X63mm |
| Weight: |
0.5kg |
| Warranty: |
3 Years |
| I/O: |
16ai, 8ao |
| Application: |
Air-Conditioner |
| Certification: |
CE |
Product Description

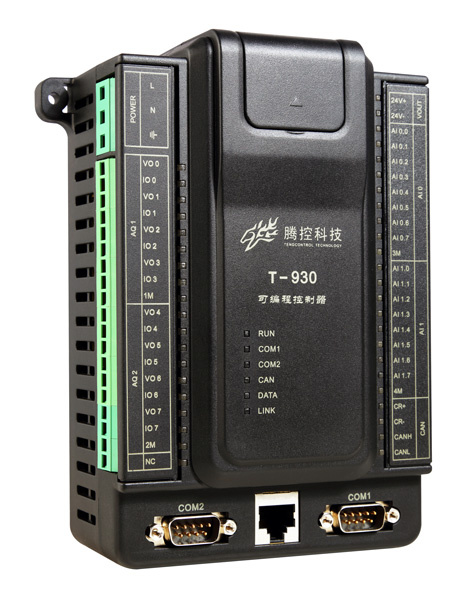

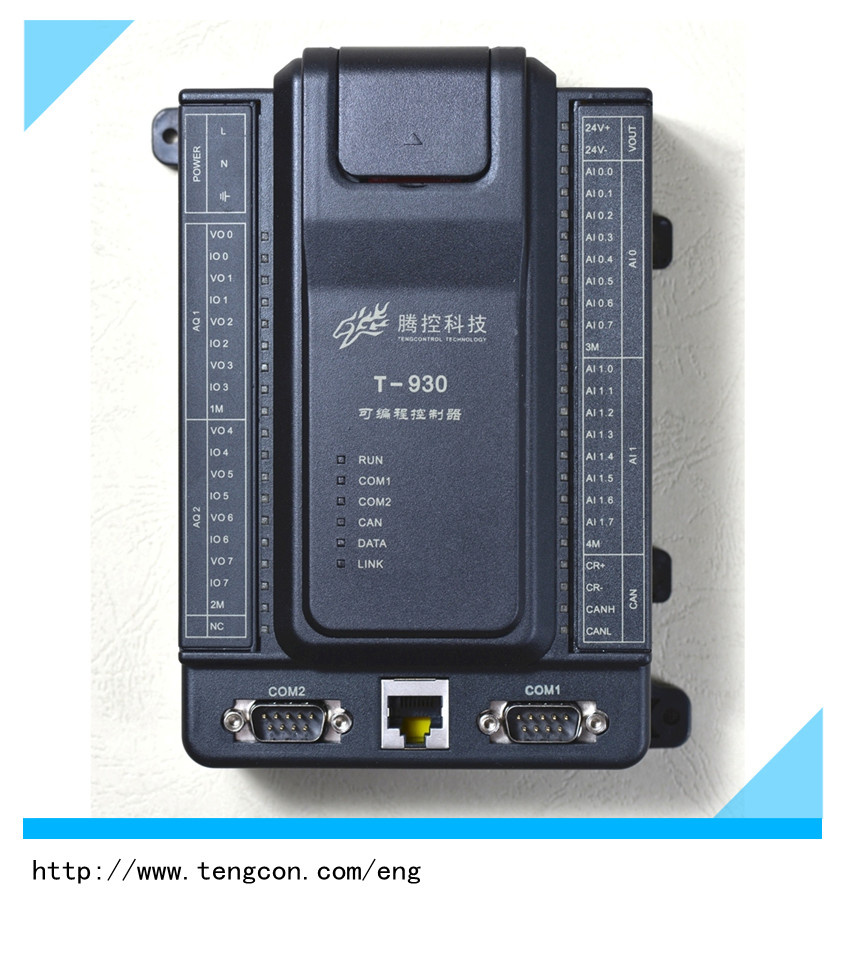

Technical data of T930
T930 Programmable Controller is a product of TengCon Company's T900 series PLC, It combines and ARM industrial CPU with a maximum frequency of 72MHZ. And extended 32M SDRAM and a 4M FLASH,an embedded operating system,a 2M user program memory and a 2M user data memory.Programming the T930 on KW Multiprog programming system and communicate via a Ethernet cable make user's programming very easy.Furthermore, T930 also provide 2 RS232, or RS485 interface.It provide the following input and output:16 analog inputs,8 analog outputs, 24VDC input.
Tengcon T-9 Series PLC have passed CE & FCC Certification.
Operating Temperature Range -40~85 degrees celsius
16 channel analog input (0~5v or 0~20mA) , 16 bit AD
8channel analog output(0~10v or 0~20mA) , 16 bit D/A
1 port 10M/100M Ethernet, MODBUS TCP / ENET IEC870-5-104
Two RS485or RS232 ports , one CAN port, MOBUS RTU , 300-38400bps
IEC61131-3 supported (IL,ST,LD,FBD,SFC)
AC(85-265V) or DC 24V power supplies
169x134x63 (mm) size
Technical Specification
Model Number | TENGCON T-930 (16AI,8AO) cheap plc |
Physical Feature |
Dimension | 169 x 134 x 63 mm (W x H x D) |
Weight | 0.5 Kg |
Mount | Standard rail or bolts |
Working Temperature | From -40ºC to 85 ºC |
I/O Feature |
Built-in analog inputs | 16 (0-20mA or 0-5V) |
Built-in analog outputs | 8 (0-20mA or 0-10V) |
I/O state indicators | 44 pcs. |
Power Supply and power output |
Power Supply | Rated Voltage | 220V AC or 24V DC |
Range | From 90V AC to 250V AC, 50Hz, or 24V DC |
Rated current | 40mA/220VAC(AO,24V DC in full-load) 14mA/220VAC(AO, 24V DC in full-load) |
Isolated power output | Rated voltage | 24VDC |
Rated current | 0.2A |
Output resistance | About 20 Ohm |
Terminals | VOUT(24V+, 24V-) |
Communication |
Ethernet | 1 port (RJ45, 10M/100M adaptive,MODBUS TCP protocol) |
RS232 | 1 port (COM0, for internal test) |
RS232/485 | 2 port l COM2, DB9 RS232 direct connect l COM1, DB9 RS485(pin 2 is B, pin 3 is A) Default settings: MODBUS RTU Slave, Bode rate 19200,1,8,E, address 1 |
CAN | 1 port |
DIP | 8-bits Set DIP ON will force the IP address to the default 192.168.1.99 |
Run/stop switch | 2 switches run/stop(in stop mode, only PLC program stopped) |
Communication indicator | 6 pcs. l RUN indicator(flashing) l COM1 COM2serial port communication indicator(flashing when communicating) l LINK Ethernet linking indicator DATA Ethernet communicating indicator |
Memory |
User program memory size | 2M Byte |
User data memory size | 2M Byte |
Back-up battery data memory | 1K Byte |
Data back-up time | 1 year |
CPU feature |
CPU frequency | 48 MHz | Max. 72 MHz |
Minimum instruction processing time | 4 millisecond | |
INT and Bit operation | From 1 to 4 microsecond | |
Floating-point algorithm | About 40 microsecond | |
1ms timer quantity | No limit | |
Clock | Internal clock | Back-up battery |
Order Requirements:
Please confirm and choose the following information when you are ready to place order :
Working Power Supply | 220V AC 50HZ | Please confirm which one |
9-36V DC |
DC input | 0-20MA(default setting) | Please confirm which one |
0-5V |
DC output | 0-20MA(default setting) | Please confirm which one |
0-10V |
Communication | 1 RS485 port,1RS232 port (default setting) | Please confirm which one |
2 RS485 port |
Quantity | |
Certification:
Beijing Tengcontrol Technology Limited CompanyRely on the hardware, software and network technique, Tengcon Technology devoted to manufacture industrial automation core products and systems with more than 30%of employee are focus in Research & Development. Tengcon has deep and wide experience in various signal acquisition, especially on electric signal acquisition, and also, familiars with all main protocol like MODBUS, IEC8705, PROFIBUS DP, CAN, PROFINET etc., and knows the ropes of IEC61131 and technology of Programmable Logic Controller development as well as IEEE1588 and Clock Synchronization Technology in Ethernet, we are also robust on antiinterference and lightning protection technology to ensure the reliability of every product delivered to customer.
Tengcon Technology proposed a new advanced concept of Complete Distributed Network Control System, in that the control system is constructed via absolutely new theory. It can be applied to construct the SCADA (Supervisory Control and Data Acquisition), PLC (Programmable Logic Controller) and DCS (Distributed Control System).Typical product were developed based on these is T9 series which were launched in market already. More than 100 thousands of product have been delivered to customers and got widely and good customer acceptance in past years.
All these products are being used in various industries in 18 counties. They showed strong reliability in different systems and wide environment include High Speed Rail, oil and gas field, power monitor and control system, kind of automatic production line, Building Management System,city lighting control system, vehicle monitoring, agricultural farms etc. we are keeping to develop and provide first class of product to all the customer in worldwide.Our Services 1.Any inquiries will be replied within 24 hours.
2.OEM/ODM available.
3. Three years Quality warranty.
4.We accept TT ,Paypal, West Union etc
Beijing Tengcon Technology, first known as Beijing Econtrolnet Technology, was found in 2002. Now, it consists of Beijing Econtrolnet, Tengcon Automation and Tengcon Intellitrument. By now, we have made more than 100, 000 PLC and I/O modules. Our products are working in many large projects, for instance, they are west-east gas pipeline, Beijing 2008 Olympic Games, Tangjiashan dammed lake, oilfield well, Baosteel, Yangzi Petrochemical.
Beijing Tengcon Technology has 40 employees and more than 30 percent are employed in R&D work. We focus on the hardware, software and network research, target to produce the leading automation device and equipment.
We have engaged in electronic research and development for many years, we also have rich experience on the signal acquisition & processing, our products are very robust on electromagnetic interference and lightning protection.
Rely on the computing hardware, software and network technique, Tengcon Technology devoted to manufacture industrial automation core products and systems. More than 30 per cent staffs are in Research & Development, so we gets strong ability on product R&D. Tengcon Technology has deep and wide experience on various signal acquisition, especially on electric signal acquisition, so that, our products are very robust on anti-interference and lightning protection.
Tengcon Technology advanced a Complete Distributed Network control system, in that the control system is constructed via absolutely new theory. It can be applied to construct the SCADA (Supervisory Control and Data Acquisition), PLC (Programmable Controller) and DCS (Distributed Control System).
We have manufactured more than 100 thousands products in 10 years, and all are used in various industrial plants and agricultural farms. With customer's continuous testing and our technology improving, Tengcon Technology product are widely accepted by various users for its excellent network communication, architecture, anti-interference ability and wide temperature adaptation.
